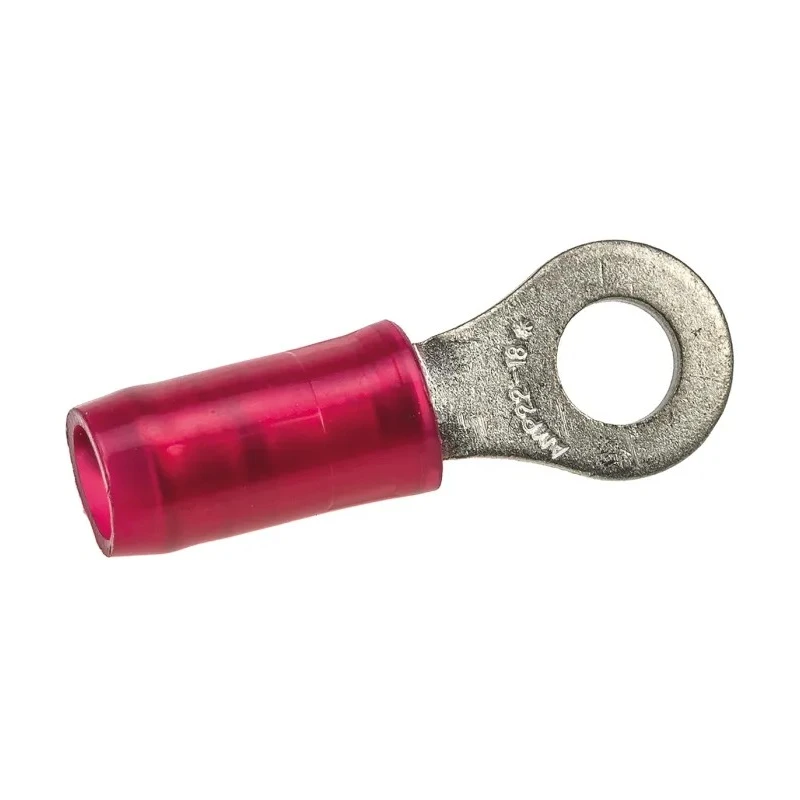

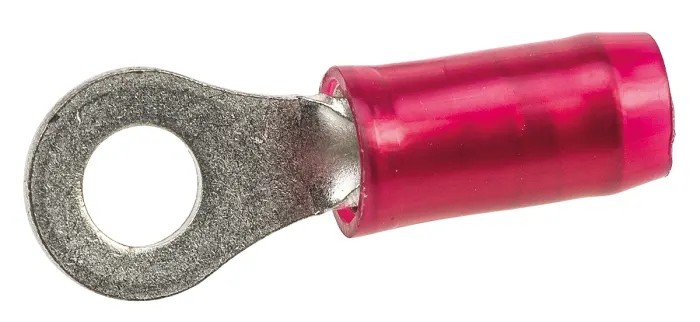

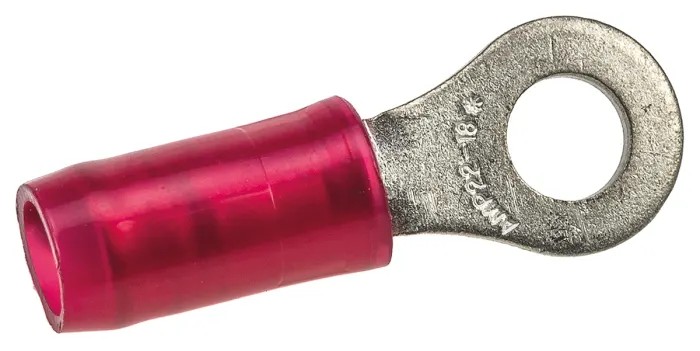

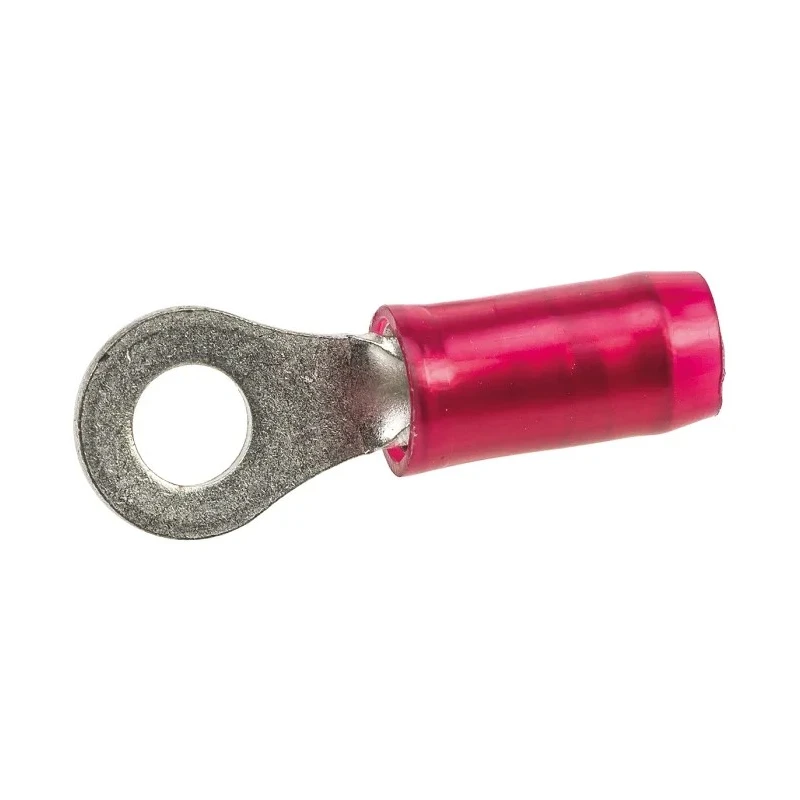

TE Connectivity PIDG Insulated Ring Terminal M3.5 Stud Size 22 AWG to 16 AWG Wire Size Red 36151

TE Connectivity 36151 PIDG Insulated Ring Terminal is engineered for consistent and reliable electrical connections in industrial, aerospace, automotive, and power distribution applications.

This terminal features a high conductivity copper body with tin plating ensuring optimal current flow and corrosion resistance. The insulated barrel incorporates a copper sleeve with serrations to maximize contact area and tensile strength after crimping, providing a secure and durable connection.

The red nylon insulation sleeve aids quick wire gauge identification and insulates the connection to prevent accidental short circuits. The funnelled wire entry design facilitates easy wire insertion and reduces insulation damage during high-speed production.

The terminal supports wire sizes from 22 AWG to 16 AWG, making it versatile for various wiring needs. Its M3.5 stud size is compatible with a wide range of mounting requirements.

Operating temperature up to 105°C ensures suitability in demanding electrical environments. The compact dimensions of 20.24 mm overall length, 7.14 mm outer ring diameter, and 3.68 mm inner ring diameter make it ideal for tight spaces.

High conductivity copper body with tin plating for corrosion resistance. Nylon insulation with color coding for wire size identification. Serrated barrel for maximum contact and tensile strength. Copper sleeve inside barrel prevents wire fraying.

Funnelled wire entry ensures easy insertion and secure crimp. Widely used in instruments, control panels, automotive and aerospace applications. Supports wire gauges 22 AWG to 16 AWG with M3.5 stud size. Maximum operating temperature 105°C for demanding environments.

Compact and lightweight design for effective space utilization.

This TE Connectivity PIDG Insulated Ring Terminal is RoHS compliant and manufactured in the United States, assuring adherence to quality and environmental standards. It provides a dependable solution for electrical wiring needs across numerous industrial sectors.
