TE Connectivity Solistrand Uninsulated Ring Terminal M12 Stud Size 16 AWG 14 AWG Wire Size 321165

Free Delivery in India | Lowest Global Shipping Charges

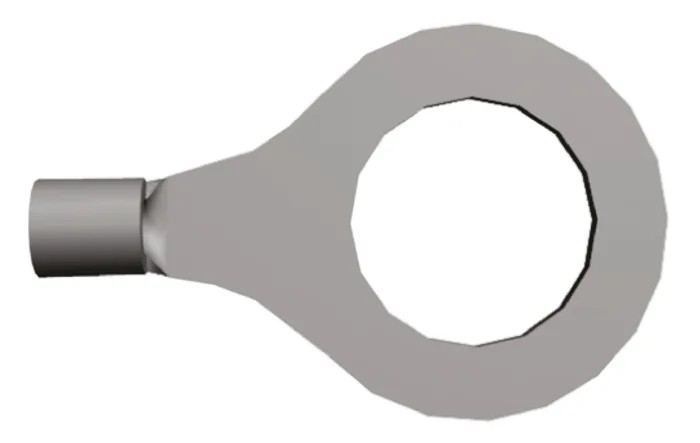

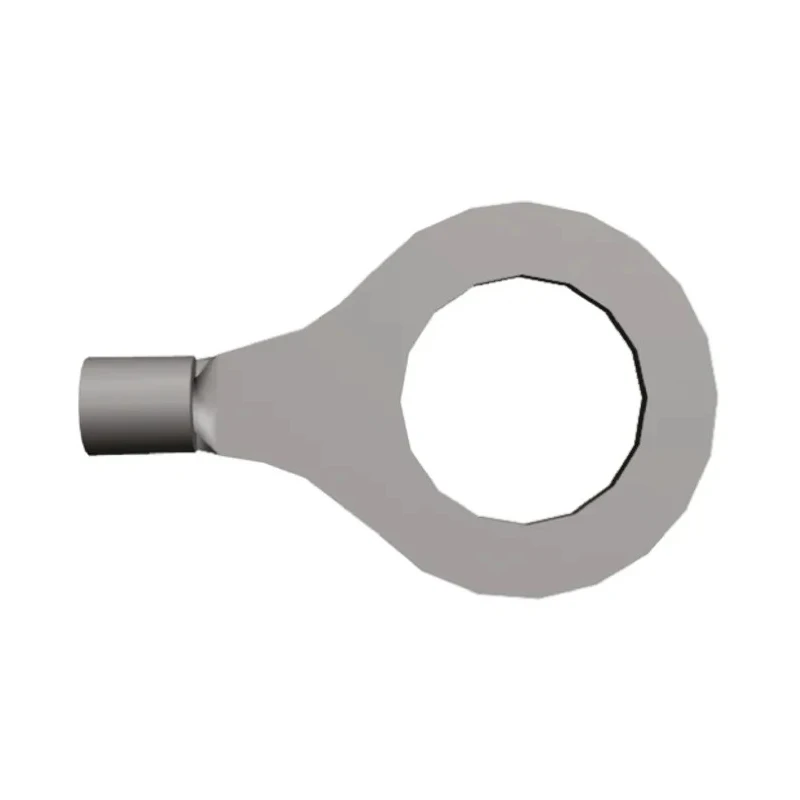

TE Connectivity Solistrand Uninsulated Ring Terminal M12 Stud Size 16 AWG 14 AWG Wire Size 321165

Name: TE Connectivity Solistrand Uninsulated Ring Terminal M12 Stud Size 16 AWG 14 AWG Wire Size 321165
Brand: TE Connectivity
SKU: 205520
Price: 1.93 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
THICKNESS	0.79mm
Model	321165
Insulation	Uninsulated
Overall Length	32.28mm
Contact Material	Copper
Series	Solistrand
Maximum Operating Temperature	170°C
Standards/Approvals	RoHS
Contact Plating	Tin
Minimum Wire Size mm²	1mm²
Maximum Wire Size mm²	2.6mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	14AWG
Outer Ring Diameter	19.05mm
Inner Ring Diameter	13.08mm
Stud Size	M12

Key Features

Constructed of high conductivity copper for optimum electrical performance.
Electro tin plated contact for improved corrosion resistance.
Uninsulated design suited for harsh industrial environments.
Features robust brazed seams for increased barrel strength and durability.
The bell-shaped barrel mouth allows easy and quick wire insertion.
Serrated and dimpled barrel interior ensures excellent tensile strength and electrical contact.
Suitable for wire sizes 16 AWG (1 mm²) minimum and 14 AWG (2.6 mm²) maximum.
Maximum operating temperature rating of 170°C for versatility in various conditions.

Product Description

TE Connectivity 321165 Solistrand uninsulated ring terminal is engineered for terminating solid and stranded wires with wire size ranges from 16 AWG to 14 AWG. The M12 stud size and precision construction enable optimal electrical conductivity and reliable mechanical connections across various industrial applications.

Manufactured from fine high conductivity copper, the ring terminal is electro tin plated to enhance its resistance against corrosion and environmental factors. Its robust design, including brazed seams, ensures superior mechanical strength, making it suitable for demanding environments.

The bell-shaped barrel mouth facilitates quick wire insertion, while the serrated inner surface enhances both tensile strength and electrical contact area. This design allows the barrel to be shorter yet effective, optimizing installation time and ensuring long service life.

Operating up to a maximum temperature of 170°C, this ring terminal is versatile for use in materials handling equipment, heavy machinery, transformers, switchgear, telecommunications infrastructure, appliances, control panels, and power supplies.

Constructed of high conductivity copper for superior electrical performance. Electro tin plating for corrosion resistance. Robust brazed seams provide enhanced barrel strength. Bell-shaped barrel entry expedites wire insertion.

Serrated inner barrel surface increases contact area and tensile strength. Uninsulated for flexible wire termination options. Compatible with wire sizes from 16 AWG to 14 AWG. Maximum operating temperature of 170°C for reliability in harsh conditions.

Designed to maintain performance in demanding industrial environments.

TE Connectivity SOLISTRAND Ring Terminals deliver dependable performance in a wide array of industrial, construction, telecommunications, and electrical distribution applications. They are essential connectors for critical electrical wiring tasks, ensuring both safety and efficiency.
