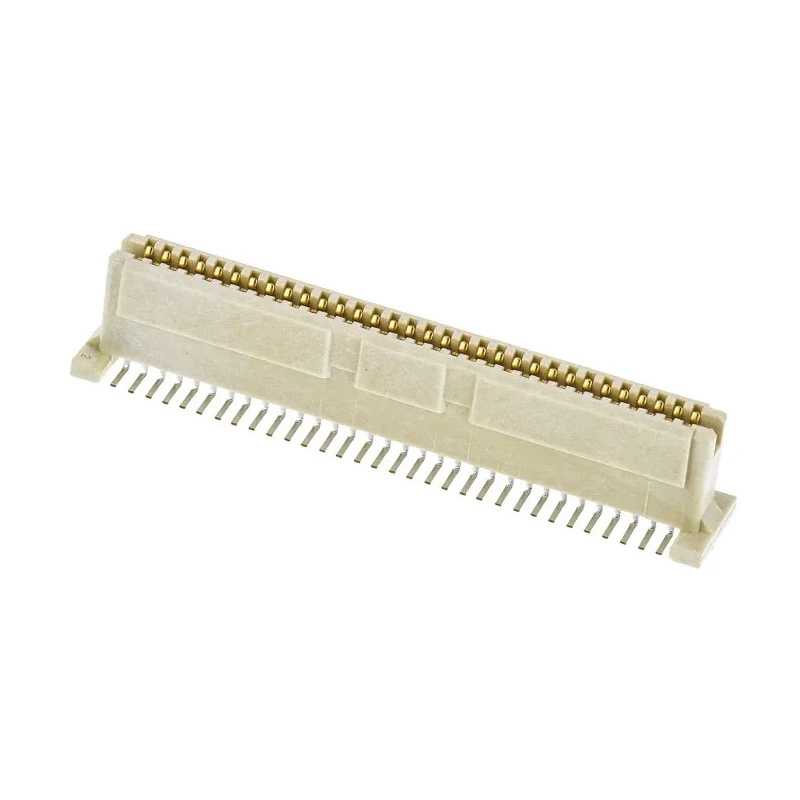

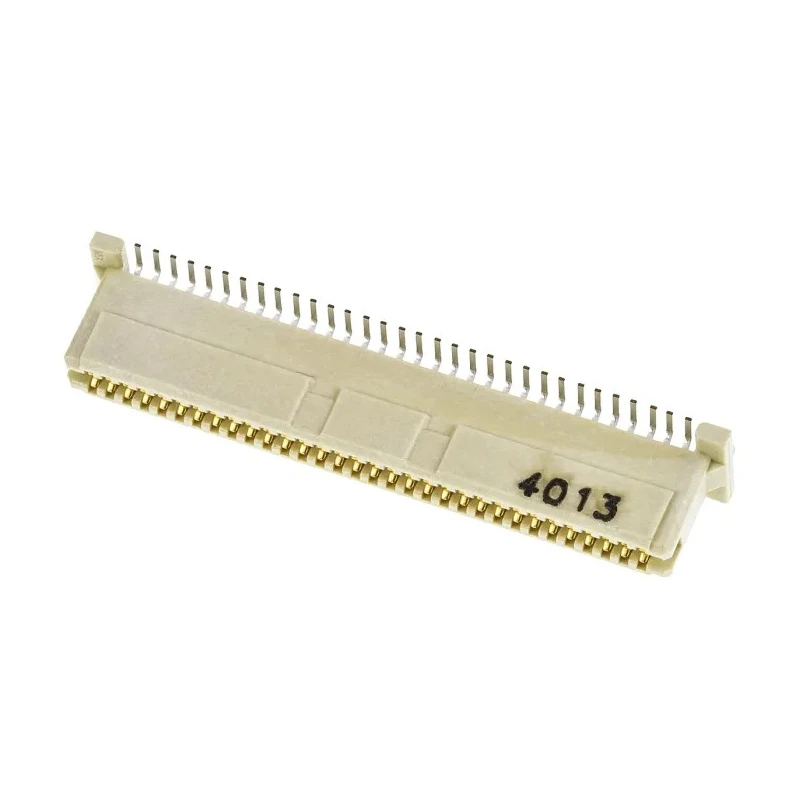

Molex PMC Mezzanine Series Straight Surface Edge Connector 64-Contact 2 Row 1 mm Pitch Solder 71439-1164

Free Delivery in India | Lowest Global Shipping Charges

Molex PMC Mezzanine Series Straight Surface Edge Connector 64-Contact 2 Row 1 mm Pitch Solder 71439-1164

Name: Molex PMC Mezzanine Series Straight Surface Edge Connector 64-Contact 2 Row 1 mm Pitch Solder 71439-1164
Brand: Molex
SKU: 186461
Price: 14.53 USD
Availability: InStock



Category Edge Connector Brand Molex Condition New

Specifications

Country of Origin	United States
Voltage	100V
Brand	Molex
Orientation	Straight
Current	12A
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Bronze
Series	PMC Mezzanine
Termination Type	Solder
Maximum Operating Temperature	85°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Interfaces	LAN, WAN, telecommunication, PC and workstation applications
Number of Rows	2
Pitch	1mm
Contact Plating	Gold
Number of Contacts	64
Contact Gender	Female
Connector System	Board-to-Board, Signal
Row Pitch	1.4mm
Mated heights	8 → 15mm (see combination guide)

Key Features

Provides reliable connection with 64 female contacts in dual rows.
Features a 1 mm pitch and 1.4 mm row pitch for precise alignment.
Supports up to 12A current and 100V operation voltage.
Constructed of thermoplastic housing with bronze contacts plated in gold.
Designed for surface mount with straight orientation suitable for vertical stacking SMT applications.
Operates reliably within temperature range from -55°C to 85°C.
Ideal for LAN, WAN, telecommunication, PC, and workstation electronics.
Features low insertion force and high-temperature liquid crystal polymer housing suitable for reflow solder processes.

Product Description

Molex 71439-1164 PMC Mezzanine Series Straight Surface Edge Connector is a high-quality edge connector designed for board-to-board electronic interconnections. It features 64 contacts organized in 2 rows with a fine 1 mm pitch and 1.4 mm row pitch, making it suitable for compact and precise electronic assemblies.

This connector supports up to 12A current and 100V voltage, making it capable of handling significant electrical loads in telecommunications, LAN, WAN, PC, and workstation applications. The connector uses a thermoplastic housing that offers durability and resistance to high temperatures, ranging from -55°C to 85°C, enabling operation in demanding industrial environments.

The contacts are made of bronze and plated with gold to ensure optimal conductivity and resistance to corrosion. Its surface mount type with straight orientation allows vertical stacking SMT headers and sockets, facilitating efficient system designs and expansions.

Designed with a shrouded leaf contact system, this edge connector minimizes contact damage and insertion force. The high-temperature liquid crystal polymer (LCP) housing supports modern reflow soldering assembly processes. It is an ideal component for advanced electronic devices requiring robust and reliable electrical connections.

Reliable board-to-board interface with 64 gold plated female contacts. Thermoplastic housing offers mechanical strength and heat resistance. Designed for applications including telecommunication and computing equipment. Meets UL recognized component standards ensuring industrial quality.

Vertical stacking capability supports compact PCB designs with heights from 8 to 15 mm. Manufactured in the United States, ensuring high quality and performance consistency.

This Molex PMC Mezzanine connector is an excellent choice for engineers seeking a dependable Edge Connector solution for complex electronic products. Explore more connectors and related components in EnvMart's extensive Electronics & Electricals category for optimal sourcing.
