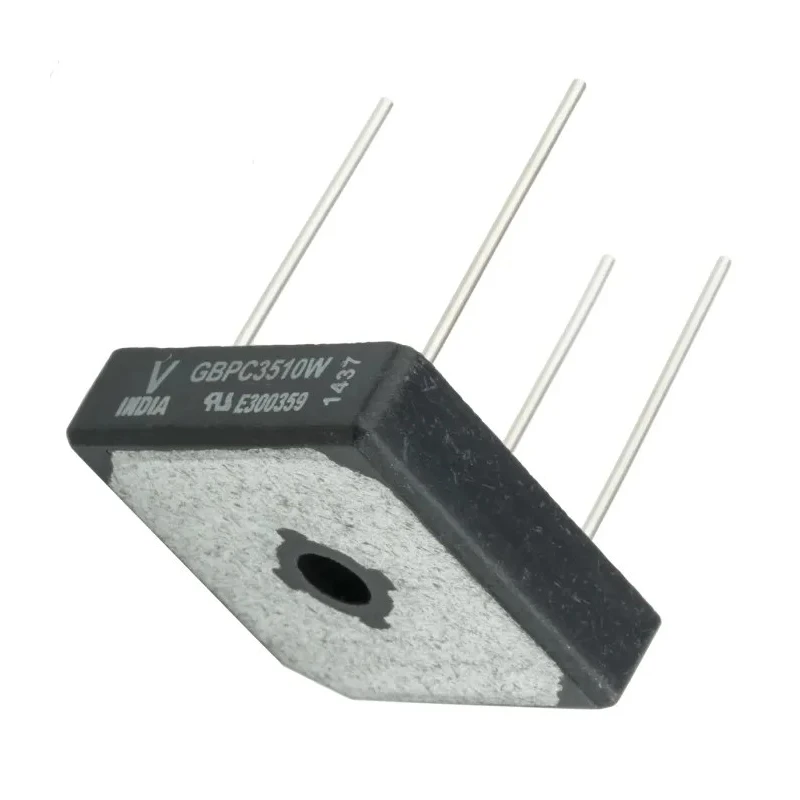

Vishay Bridge Rectifier, 1000 V Peak Reverse Voltage, 400 A Peak Surge Current, 4-Pin Single Configuration VS-GBPC3510W
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 7.62mm |
| Length | 28.8mm |
| Model | VS-GBPC3510W |
| Width | 28.8mm |
| Mount Type | Through Hole |
| Series | VS-GBPC |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBPC |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Forward Current If | 35A |
| Peak Forward Voltage Vf | 1.1V |
| Vishay Bridge Rectifier, 800 V 400 A, 4-Pin SingleBrand | Vishay |
Key Features
- Designed for 4-pin single-phase through-hole mounting.
- Supports a maximum forward current of 35 A and a peak forward voltage of 1.1 V.
- Operates reliably between -55°C to 150°C ambient temperature.
- Compact GBPC package with dimensions 28.8 mm length, 28.8 mm width, and 7.62 mm height.
- Low thermal resistance for enhanced heat dissipation in PCB or chassis mounting applications.
- Wire lead structure ensures durable connection and mechanical stability.
- Ideal for industrial and electronic power conversion applications.
- Complies with UL E54214 standards for quality assurance.
Product Description
Vishay VS-GBPC3510W Bridge Rectifier is a discrete semiconductor device designed for converting alternating current (AC) into direct current (DC) via full-wave rectification. It features a peak reverse repetitive voltage (Vrrm) of 1000 V and a peak non-repetitive forward surge current (Ifsm) of 400 A, making it suitable for high-power applications requiring reliable current handling.
The compact GBPC package and 4-pin single configuration allow for through-hole mounting on printed circuit boards (PCB) or chassis installations. Its wire lead structure enhances durability and ease of installation. The rectifier supports a forward current (If) of 35 A with a peak forward voltage (Vf) of 1.1 V and maintains performance across a wide operating temperature range from -55°C to 150°C.
Physical dimensions include a length and width of 28.8 mm each, with a height of 7.62 mm, optimized for space-constrained environments. The bridge rectifier’s design minimizes thermal resistance, improving heat dissipation during operation.
This model belongs to the VS-GBPC series from Vishay Semiconductor, renowned for their quality and reliability. It meets UL E54214 certification standards, assuring compliance and safety in electronic designs. Typical use cases include industrial power supplies, electronic converters, and other electrical equipment requiring efficient AC to DC conversion.
4-pin single phase through-hole GBPC package for PCB or chassis mounting. Peak reverse voltage of 1000 V suitable for demanding electrical environments. High surge current capability of 400 A for transient protection. Thermal endurance with maximum operating temperature up to 150°C.
Compact dimensions support various industrial applications. Wire lead connection structure enhances mechanical stability and reliability. Compliance with UL certification ensures quality standards. Widely used in industrial, manufacturing, and electronics sectors.
Explore more Vishay semiconductor components and Bridge Rectifier solutions on EnvMart for reliable electronic design and industrial integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay VS-GBPC3510W has a peak reverse repetitive voltage (Vrrm) of 1000 V, making it suitable for demanding electrical environments.
This bridge rectifier supports a maximum forward current (If) of 35 A.
The dimensions of this model are 28.8 mm in length, 28.8 mm in width, and 7.62 mm in height.
It has a peak non-repetitive forward surge current (Ifsm) rating of 400 A, suitable for transient protection.
The operating temperature range for the VS-GBPC3510W is from -55°C to 150°C.
This model supports through-hole mounting, making it suitable for printed circuit boards (PCB) or chassis installations.
The peak forward voltage (Vf) of the VS-GBPC3510W is 1.1 V.
This bridge rectifier has a 4-pin configuration, which is typical for its GBPC package type.
The VS-GBPC3510W complies with UL E54214 standards, ensuring quality assurance in electronic designs.
This model is designed with low thermal resistance, which enhances heat dissipation during operation.
The VS-GBPC3510W belongs to the VS-GBPC series from Vishay Semiconductor, known for its reliability.
It is ideal for industrial power supplies, electronic converters, and other electrical equipment requiring efficient AC to DC conversion.
