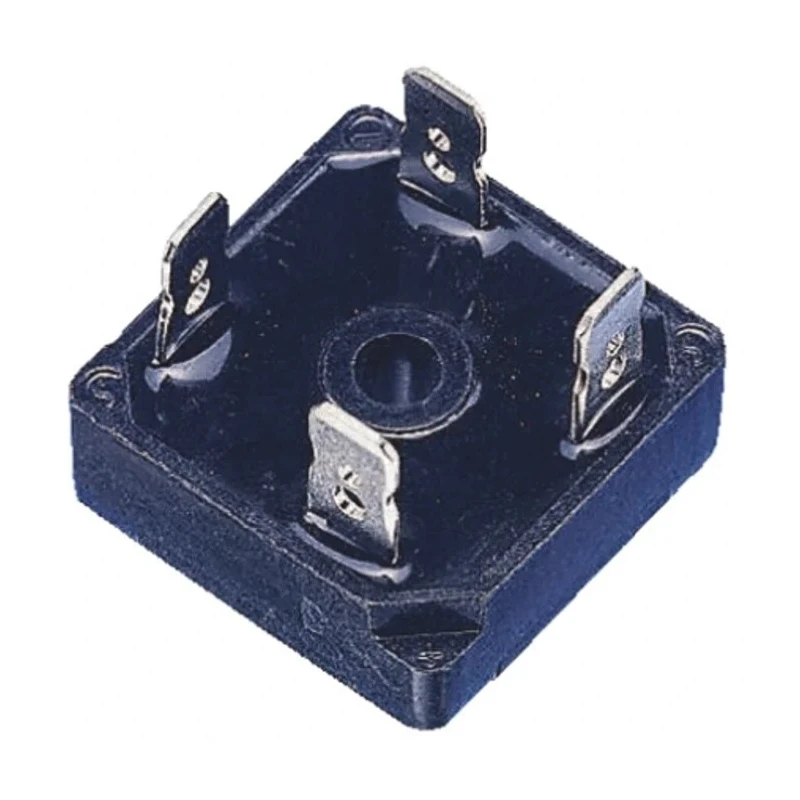

Vishay Bridge Rectifier, 1000 V, 420 A, 4-Pin Single Phase Surface Mount D-34 Package VS-26MB100A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 9.8mm |
| Length | 28.5mm |
| Model | VS-26MB100A |
| Width | 28.5mm |
| Mount Type | Surface |
| Series | VS-26MB |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-34 |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 420A |
| Forward Current If | 25A |
| Peak Forward Voltage Vf | 1.25V |
| Universal, 3 way terminals | push-on (Fast-on), wrap around or solder |
| Vishay Bridge Rectifier, 25A, 1000V, 4-PinBrand | Vishay |
Key Features
- Equipped with a D-34 package for high thermal conductivity and compact size.
- Operates within temperatures ranging from -55°C to 150°C.
- Provides a forward current of 25 A and a peak forward voltage of 1.25 V.
- Features universal push-on, wrap around, or solder terminals for versatile mounting.
- Designed for full-wave rectification converting AC to DC efficiently.
- Package dimensions include 28.5 mm length, 28.5 mm width, and 9.8 mm height.
- Robust diode arrangement ensures output polarity consistency regardless of input polarity.
- Applicable in industrial power modules requiring reliable, high voltage rectification.
Product Description
Vishay VS-26MB100A Bridge Rectifier is a high voltage power module designed for industrial and electronic applications requiring efficient AC to DC conversion. It is a single-phase bridge rectifier with a 4-pin configuration and surface mount D-34 package that offers excellent thermal conductivity with an electrically insulated case.
This device operates reliably across a wide temperature range from -55°C to 150°C, making it suitable for harsh operating conditions. With a peak reverse repetitive voltage of 1000 V and a peak non-repetitive forward surge current of 420 A, it enables full-wave rectification with a forward current rating of 25 A.
The rectifier features universal terminals that allow push-on (Fast-on), wrap around, or solder mounting methods, providing flexibility in installation. Its compact size with dimensions of 28.5 mm length, 28.5 mm width, and 9.8 mm height ensures an excellent power-to-volume ratio for space-sensitive designs.
This component's diode arrangement ensures the output DC polarity remains consistent regardless of the AC input polarity, making it ideal for power supply units, industrial machinery, and HVAC equipment requiring robust and reliable rectification modules.
High thermal conductivity package with electrical insulation. Universal three-way terminals for easy installation. Suitable for full-wave rectification in single-phase power applications. Compact dimensions for integration in confined spaces.
Wide temperature operating range enabling use in varied environments. Excellent power/volume ratio for industrial applications.
Vishay Bridge Rectifiers are widely used in industrial, manufacturing, and electronic equipment. Explore Vishay products at EnvMart for reliable semiconductor and rectifier solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of the Vishay VS-26MB100A bridge rectifier is 1000 V.
This model operates reliably at a maximum temperature of 150°C.
The forward current rating of the VS-26MB100A is 25 A.
The D-34 package dimensions are 28.5 mm in length, 28.5 mm in width, and 9.8 mm in height.
The diode arrangement ensures that the output DC polarity remains consistent regardless of the AC input polarity.
It features universal terminals that allow for push-on (Fast-on), wrap around, or solder mounting methods.
The peak non-repetitive forward surge current for this model is 420 A.
The minimum operating temperature for the VS-26MB100A is -55°C.
This rectifier is suitable for industrial power modules requiring reliable, high voltage rectification.
The peak forward voltage of the VS-26MB100A is 1.25 V.
The VS-26MB100A has a 4-pin configuration.
The package type of this bridge rectifier is D-34.
