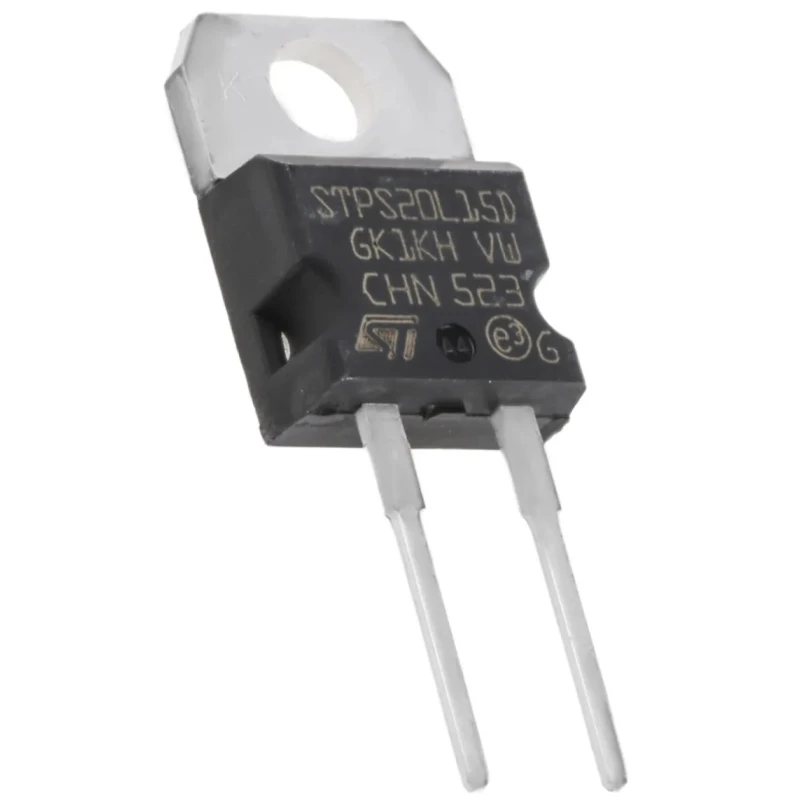

STMicroelectronics Schottky Diode 15 V 20 A Diode Schottky 2-Pin TO-220 STPS20L15D
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | STPS20L15D |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STPS20L15 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 15V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 6mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 310A |
| Maximum Forward Voltage Vf | 0.28V |
| Vishay 15V 9A, Schottky Diode, 2-Pin DO-204AR VS-95SQ015Brand | Vishay |
Key Features
- Rated for a maximum continuous forward current of 20 amperes.
- Peak reverse repetitive voltage of 15 volts ensuring reliable reverse voltage blocking.
- Low maximum forward voltage of 0.28 volts for efficient conduction.
- Wide operating temperature range from -65°C to 125°C suitable for industrial environments.
- High peak non-repetitive forward surge current capability of 310 amperes.
- Compact TO-220 package with dimensions 10.4 mm length, 9.15 mm height, and 4.6 mm width.
- Single diode configuration with 2-pin connection for easy integration.
- Designed for discrete semiconductor applications in electronics and power systems.
Product Description
STMicroelectronics STPS20L15D Schottky Diode is a robust and efficient diode designed for discrete semiconductor and power electronics applications. Featuring a through-hole mounting type and housed in a TO-220 package, it enables secure installation on PCBs.
This diode supports a maximum continuous forward current of 20 A, allowing it to handle high current loads reliably in industrial and electronic circuits. The peak reverse repetitive voltage of 15 V ensures stable operation under reverse voltage stress. With a low maximum forward voltage of 0.28 V, the diode operates efficiently minimizing power losses.
The STPS20L15D device operates comfortably over a broad temperature range from -65°C up to 125°C, making it suitable for demanding environmental conditions typical of industrial, manufacturing, and commercial applications. It also supports a high peak non-repetitive forward surge current of 310 A, providing high tolerance to transient surges.
The compact TO-220 form factor offers a length of 10.4 mm, height of 9.15 mm, and width of 4.6 mm, which helps in space-constrained designs while allowing effective heat dissipation. Its single diode configuration and 2-pin design simplify circuit integration in power rectification and switching applications.
Typical use cases include power supplies, rectification circuits, and protection in electronic devices within industrial automation, manufacturing controls, and laboratory equipment.
Rated continuous forward current at 20 A. Reverse repetitive voltage rating of 15 V. Low forward voltage drop of 0.28 V. Operating temperature range -65°C to 125°C. Peak surge current capacity of 310 A. TO-220 package with compact dimensions.
Single diode, 2-pin configuration for through-hole mounting. This diode is part of STMicroelectronics' reliable semiconductor products designed to meet demanding industrial standards. It is supplied in new condition and made in India.
Explore more quality semiconductor components and Schottky Diodes on EnvMart for your precise technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating for this model is 20 amperes.
This diode has a peak reverse repetitive voltage rating of 15 volts.
The maximum forward voltage drop for this model is 0.28 volts, which aids in efficient conduction.
It operates over a wide temperature range from -65°C to 125°C, suitable for industrial environments.
The peak non-repetitive forward surge current capability of this model is 310 amperes.
The dimensions of the TO-220 package are 10.4 mm in length, 9.15 mm in height, and 4.6 mm in width.
This diode supports through-hole mounting, making it easy to integrate into PCB designs.
The STPS20L15D has a 2-pin configuration for easy integration into circuits.
It is a Schottky diode, designed for discrete semiconductor applications in electronics and power systems.
This diode is suitable for applications such as power supplies, rectification circuits, and protection in electronic devices.
This diode is manufactured in India.
The typical peak reverse current for the STPS20L15D is 6 mA.
