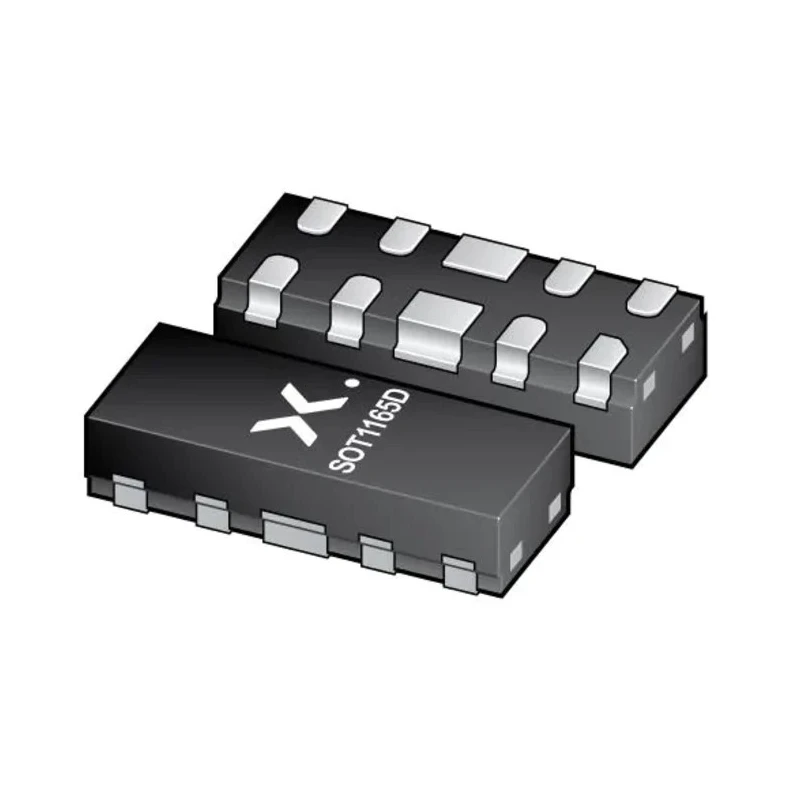

Nexperia Bi-Directional ESD Protection Diode 10-Pin DFN2510D PESD4USB5B-TTSX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.75mm |
| Length | 2.5mm |
| Model | PESD4USB5B-TTSX |
| Width | 1mm |
| Mount Type | Surface |
| Series | PESD4USB5B-TTS |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN2510D |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Standards/Approvals | IEC61000-4-2 Level 4, ISO10605 |
| Pin Count | 10 |
| Clamping Voltage VC | 5.5V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 7A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Designed for ultra-fast interfaces such as SuperSpeed USB 3.2 at 10 Gbps, HDMI, and Display Port.
- Offers ESD protection level up to ±15 kV according to IEC61000-4-2 Level 4 standards.
- Features a low line capacitance of only 0.5 pF per channel for signal integrity.
- Compact surface-mount DFN2510D package with dimensions 2.5 mm x 1 mm x 0.75 mm.
- Operates reliably across a temperature range from -55°C to 150°C.
- Meets automotive standard AEC-Q101 suitable for automotive A/V systems and cameras.
- Maximum peak pulse current is rated at 7 Amps with low dynamic resistance of 0.4 Ω.
- Matched 0.5 mm trace spacing and side-wettable flanks support optimized PCB mounting.
Product Description
Nexperia PESD4USB5B-TTSX bi-directional electrostatic discharge (ESD) protection diode is designed to safeguard sensitive high-speed data interfaces from damaging voltage spikes. Packaged in a compact 10-pin DFN2510D surface-mount body measuring 2.5 mm in length, 1 mm in width, and 0.75 mm in height, this device is ideal for space-constrained applications.
Offering a minimum breakdown voltage of 6V and maximum reverse stand-off voltage of 5V, it provides robust protection against electrostatic events up to ±15 kV, conforming to IEC61000-4-2 Level 4 and ISO10605 standards. The device features a minimal line capacitance of 0.5 pF per channel to maintain signal integrity in ultra-fast data communications including SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, DisplayPort, and other protocol interfaces such as eSATA and LVDS.
The maximum peak pulse current rating of 7A combined with a low dynamic resistance of 0.4 Ω ensures effective clamp response during transient events. Automotive-grade AEC-Q101 qualification establishes its suitability for use in automotive infotainment systems, cameras, and display units. The wide operational temperature span from -55°C to 150°C allows deployment in harsh environments.
This diode supports 0.5 mm matched trace spacing and features side-wettable flanks for improved assembly reliability. Typical applications include automotive A/V monitors, USB 2.0 and 3.2 interfaces, HDMI, HDBaseT, SerDes GMSL, and other high-speed differential signaling links.
Designed for high-speed interface protection against ESD and transient voltages. Compact DFN2510D surface-mount package enables space-efficient PCB layouts. Complies with IEC61000-4-2 Level 4 and ISO10605 ESD standards. Automotive AEC-Q101 compliant for reliable use in vehicles.
Extends operating temperature range from -55°C to 150°C for industrial applications. Low capacitance and dynamic resistance preserve signal quality. Supports USB 2.0, USB 3.2, HDMI, DisplayPort, and automotive interfaces.
Packaged with 10 pins and matched trace design for easy integration. Explore more high-quality semiconductor protection components in the Electronics & Electricals category on EnvMart.
Explore more products in our ESD Protection Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of this model is 5V.
The clamping voltage (VC) for this diode is 5.5V.
This diode has a maximum peak pulse current rating of 7A.
It operates reliably across a temperature range from -55°C to 150°C.
The DFN2510D package measures 2.5 mm in length, 1 mm in width, and 0.75 mm in height.
It complies with IEC61000-4-2 Level 4 and ISO10605 standards for ESD protection.
This unit supports interfaces such as USB 2.0, USB 3.2, HDMI, DisplayPort, and others.
The line capacitance is only 0.5 pF per channel, which helps maintain signal integrity.
It meets the automotive standard AEC-Q101, making it suitable for automotive applications.
It features matched 0.5 mm trace spacing and side-wettable flanks for optimized PCB mounting.
The minimum breakdown voltage (Vbr) is 6V for this diode.
The maximum reverse leakage current is rated at 100nA.
