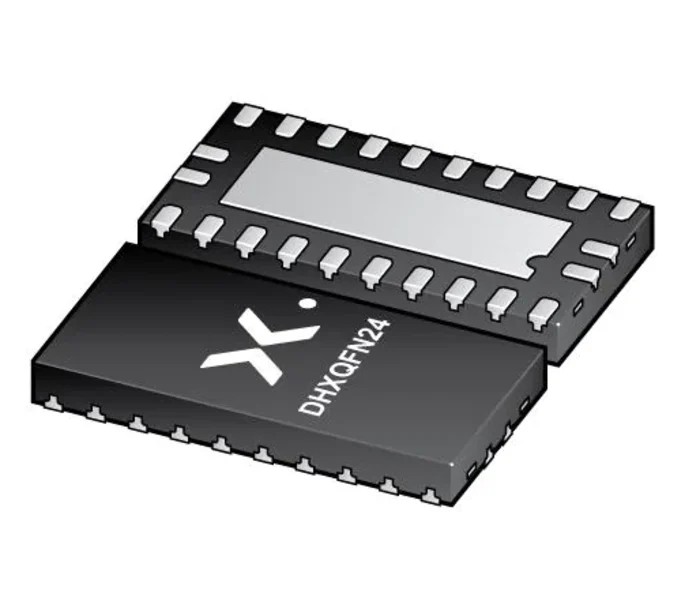

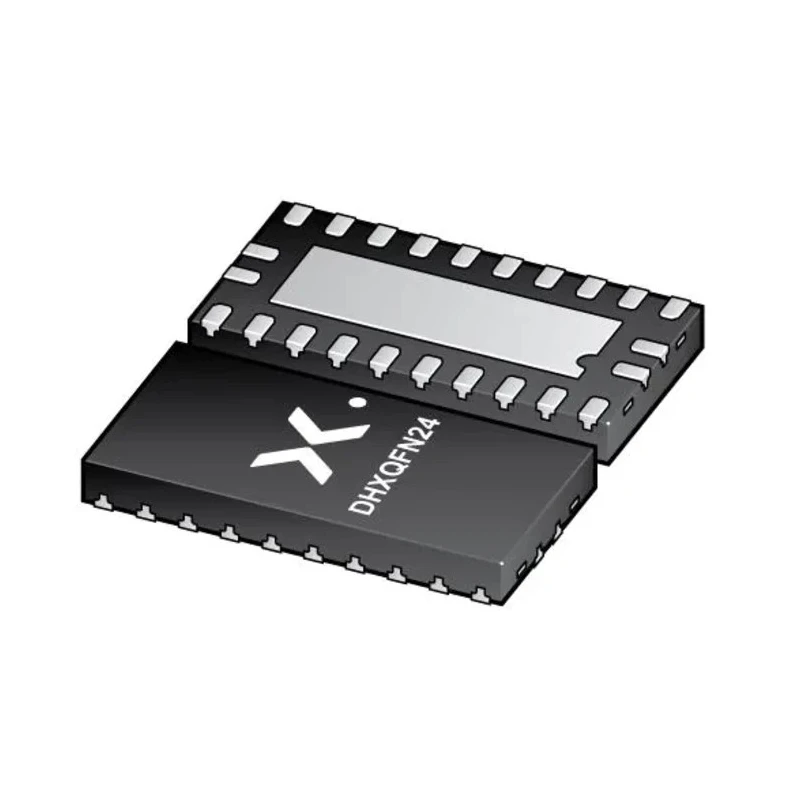

Nexperia Voltage Level Translator 18 Elements, 4-Pin Surface Mount DHXQFN24 0.8-3.6 V 74AVC8T245BZX

The Nexperia 74AVC8T245BZX is an 8-bit dual supply voltage level translator designed for bidirectional voltage translation applications. It features two 8-bit input-output ports, direction control input (DIR), output enable input (OE), and operates with dual supply pins VCC(A) and VCC(B) allowing supply voltages from 0.8 V to 3.6 V. This makes it suitable for translating signals between any low voltage nodes such as 0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V.

Ports An, OE and DIR refer to VCC(A), and ports Bn refer to VCC(B). A logical HIGH on DIR transmits data from An to Bn, while a LOW on DIR transmits data from Bn to An. The OE input is used to isolate the buses by disabling the outputs. With a maximum low level output current of 50 mA, it ensures robust signal driving capability.

This device supports a wide temperature range from -40°C to 125°C and is built in a compact DHXQFN24 surface mount package with dimensions 7.9 mm length, 150 μm width, and 4.5 mm height. It conforms to IEC61000-4-2 electrostatic discharge immunity and RoHS compliance, making it ideal for industrial, commercial, and embedded electronics applications requiring reliable voltage level shifting.

The 74AVC8T245 series provides features such as partial power-down mode operation through Ioff circuitry, excellent latch-up performance exceeding 100 mA per JESD 78 Class II standards, and multiple package options to suit various PCB designs.

Bidirectional voltage level translator supports 8-bit dual supply operation. Wide dual supply voltage range 0.8 V to 3.6 V for flexible voltage compatibility. Direction and output enable controls for versatile signal management.

Robust output capability with 50 mA maximum low-level output current. Wide operating temperature and compact surface mount DHXQFN24 package. Standards compliant to IEC61000-4-2 and RoHS ensuring device reliability and environmental compliance.

This voltage level translator is well suited for applications in industrial electronics, consumer devices, embedded systems, and communication equipment where voltage translation between different logic levels is required.
