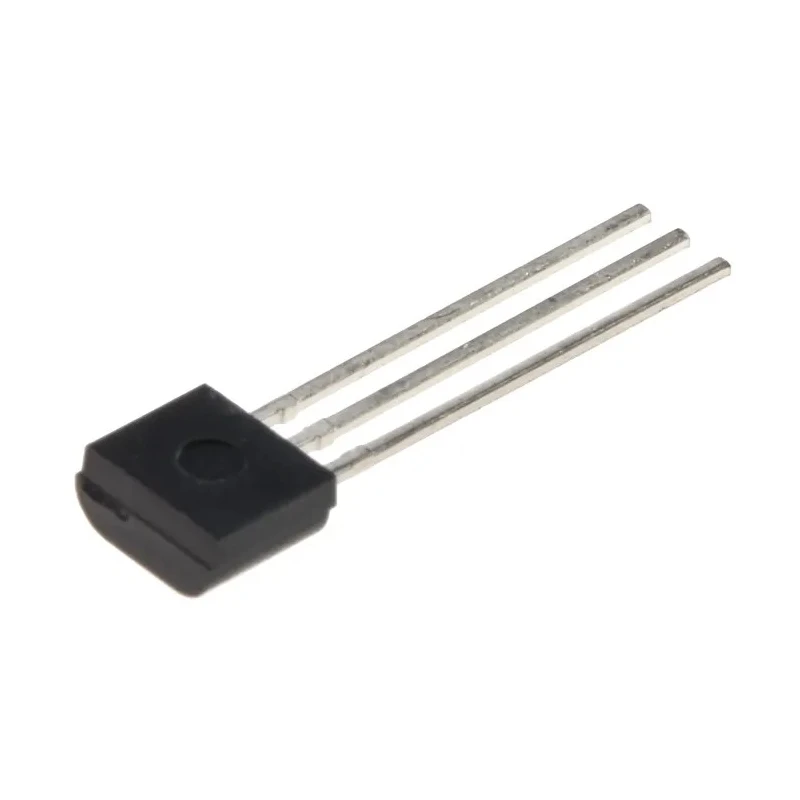

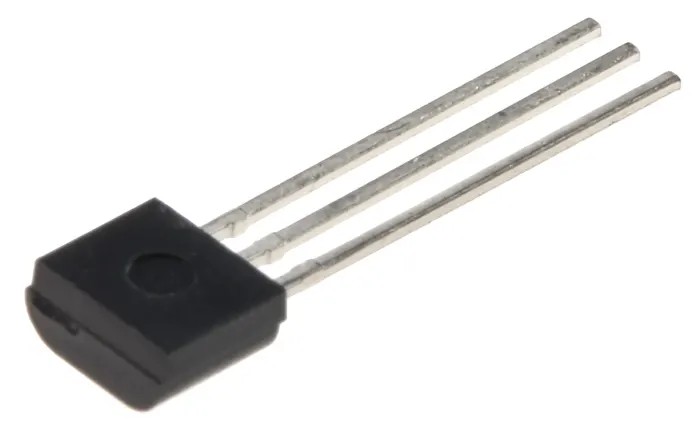

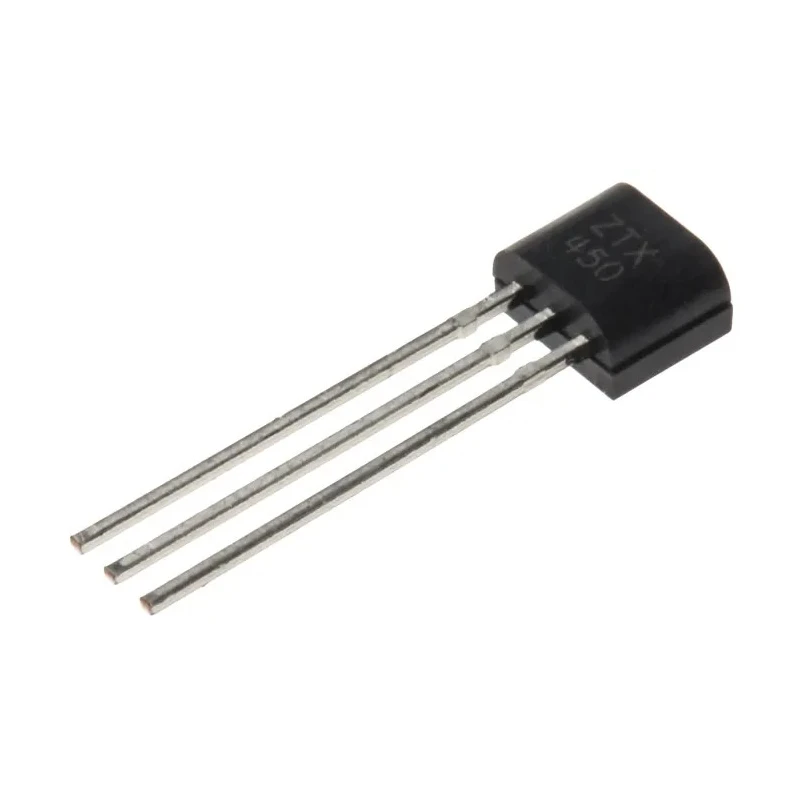

DiodesZetex Transistor NPN 1A 45V 3-Pin E-Line Through Hole ZTX450

DiodesZetex ZTX450 transistor is a high-quality, general-purpose NPN bipolar transistor designed for electronic components and circuits requiring moderate power handling and switching capabilities. Featuring a maximum DC collector current of 1 A and a collector-emitter voltage rating of 45 V, this transistor is ideal for various industrial, laboratory, and commercial electronic applications.

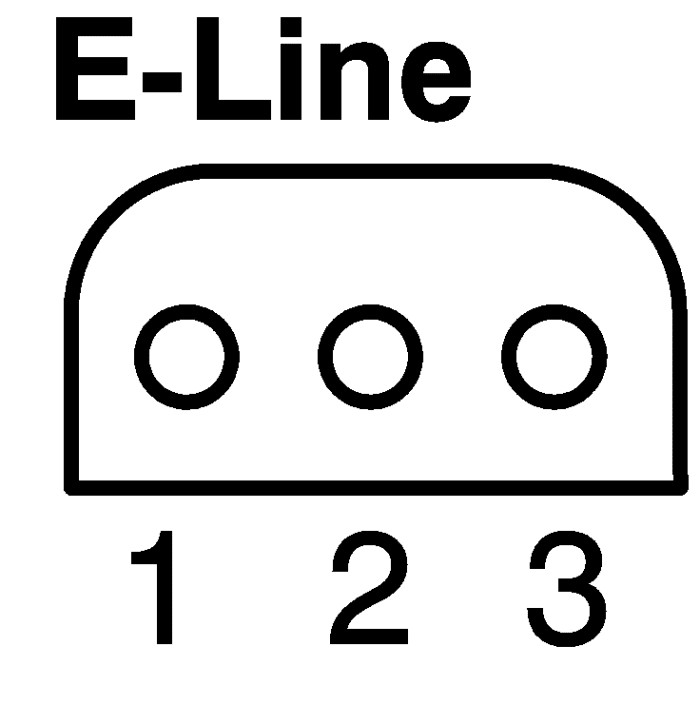

The transistor is housed in a through-hole E-Line 3-pin package that ensures easy mounting and robust mechanical support in printed circuit boards. It supports a power dissipation up to 1 watt, enabling reliable operation while maintaining thermal stability.

The current gain (hFE) minimum value of 10 provides dependable amplification for switching and signal processing tasks. It offers a maximum transition frequency of 150 MHz, making it suitable for moderate to high-frequency electronic circuit designs.

Operating temperature range from -55°C to 200°C ensures reliable performance in demanding environments including automotive, industrial controls, and communications equipment where temperature extremes are common. The device's collector-base voltage (VCBO) rating is 60 V, and its emitter-base voltage (VEBO) rating is 5 V, providing flexibility for circuit design requirements.

This transistor is a single NPN configuration with a standard 3-pin design compatible with many transistor sockets and electronic design layouts. No automotive-specific standards or certifications are applied to this device.

Designed for through-hole mounting with an E-Line 3-pin package. Supports up to 1 amp collector current and 45 volt collector-emitter voltage. Capable of continuous operation across wide temperature ranges (-55°C to 200°C).

Commonly used in industrial, laboratory, educational, and commercial electronic circuits. High-frequency performance with 150 MHz transition frequency. Robust power dissipation of 1 watt for stable operation. Single NPN transistor suitable for switching and amplification.

Set contains one ZTX450 transistor in an E-Line 3-pin through-hole package. Explore more Bipolar Transistors and semiconductor components for your electronic and industrial projects at EnvMart.
