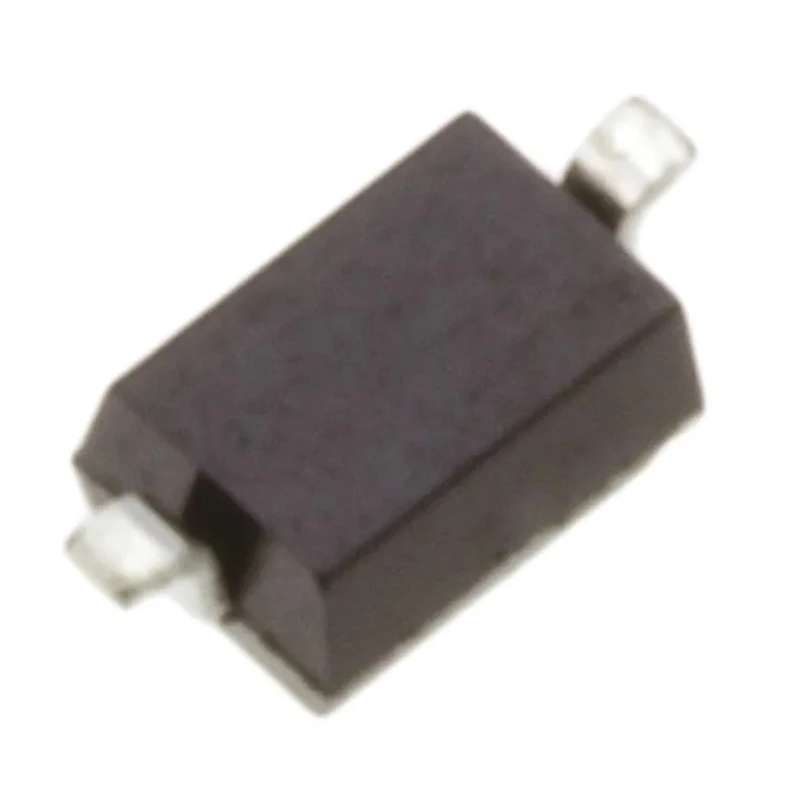

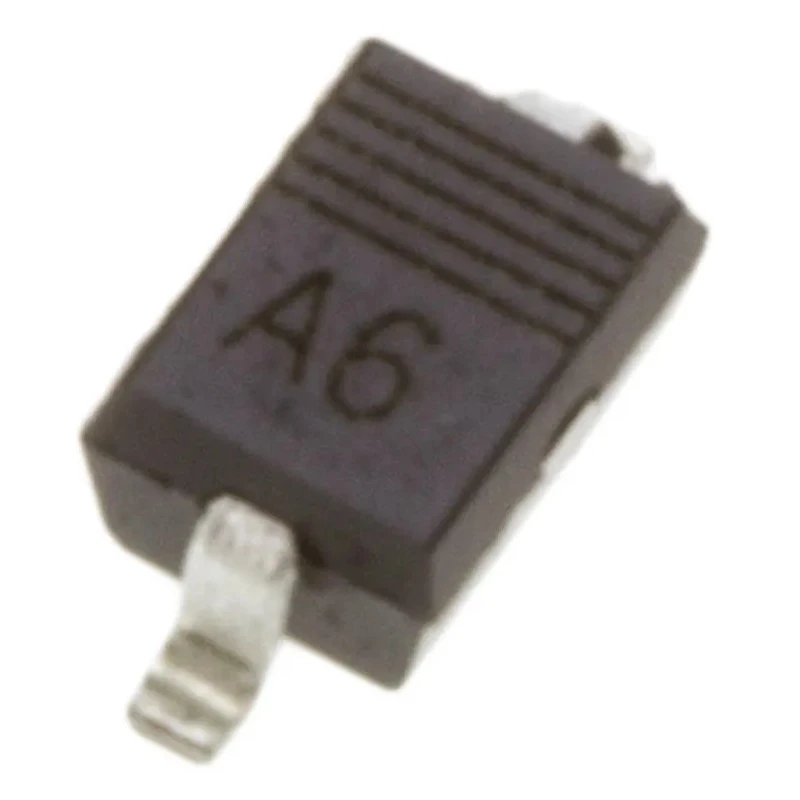

Nexperia 100 V 250 mA Surface Mount Switching Diode 2-Pin SOD-323 BAS316

Name: Nexperia 100 V 250 mA Surface Mount Switching Diode 2-Pin SOD-323 BAS316
Brand: Nexperia
SKU: 183117
Price: 0.07 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.1mm
Length	1.8mm
Model	BAS316
Width	1.35mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOD-323
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	250mA
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	50μA
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	4ns
onsemi Silicon Junction, Single, 200 mA, 2-Pin SOD-323Brand	onsemi

Key Features

The diode features low leakage current for efficient operation.
It has a maximum forward voltage of 1.25 V ensuring low power loss.
The peak reverse recovery time is fast at 4 ns suitable for high-speed switching.
Comes in a compact SOD-323 surface mount package with 2 pins.
Qualified to automotive standards AEC-Q101 making it suitable for automotive applications.
Operates reliably up to a maximum temperature of 150°C.
Peak surge current rating is 4 A enabling tolerance to transient overloads.
Peak reverse current is low at 50 μA minimizing leakage and losses.

Product Description

The Nexperia BAS316 switching diode is a surface mount, high-speed single diode designed for efficient switching applications requiring fast switching speeds, low leakage, and compact packaging. It supports a maximum continuous forward current of 250 mA and can withstand a peak reverse voltage up to 100 V making it suitable for diverse electronic circuits.

This diode operates with a fast peak reverse recovery time of 4 nanoseconds, which enables use in high-frequency switching circuits. Its maximum forward voltage drop of 1.25 V ensures low conduction loss, enhancing overall circuit efficiency. The BAS316 is housed in a compact SOD-323 (SC-76) 2-pin package, optimized for surface mounting on printed circuit boards.

Designed to meet AEC-Q101 automotive standards, the BAS316 diode is highly reliable in automotive and industrial applications with operating temperatures up to 150°C. The device withstands peak non-repetitive forward surge currents up to 4 A, providing robustness against transient overloads.

With precise dimensions of 1.8 mm length, 1.35 mm width, and 1.1 mm height, it suits compact and space-sensitive designs. The diode's low peak reverse current of 50 microamperes minimizes leakage power losses, critical in energy-efficient systems.

Low leakage current ensures efficient performance. High switching speed with recovery time equal or below 4 ns. Surface mount 2-pin SOD-323 package for compact mounting. Automotive rated with AEC-Q101 qualification for high reliability.

Wide operating temperature up to 150°C for harsh environments. Peak reverse voltage rating of 100 V suited for medium voltage applications. Maximum forward current of 250 mA supports general switching needs. Robust against surge currents up to 4 A.

Compact physical dimensions fit space-constrained PCB layouts.

This diode is ideal for use in automotive electronics, power supplies, high-speed switching circuits, and other semiconductor diode applications requiring reliable high-frequency operation in a small footprint. It is a key component for industrial, laboratory, automotive, and electronic manufacturing fields.
