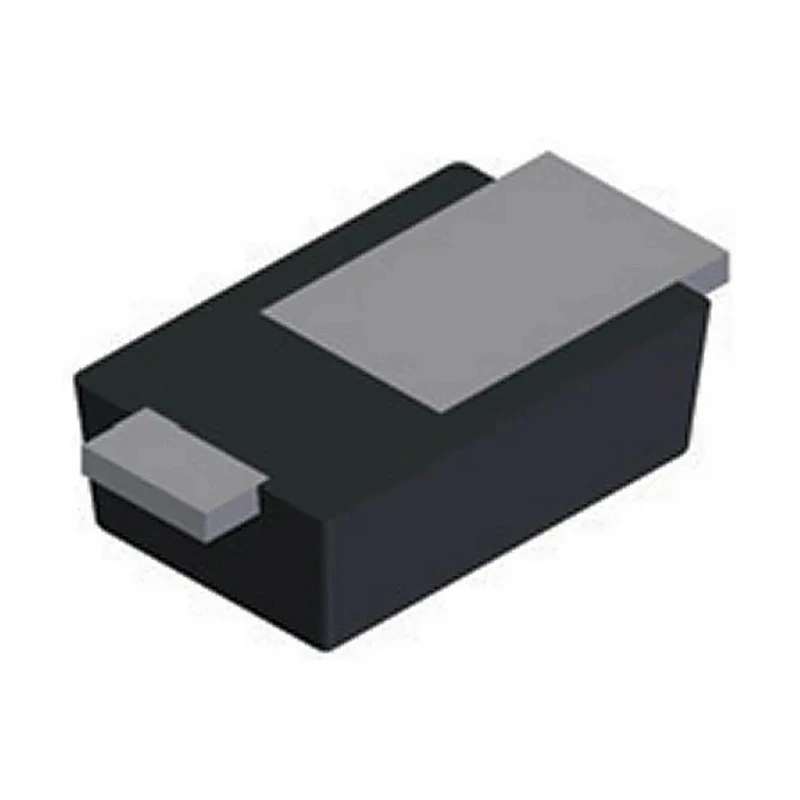

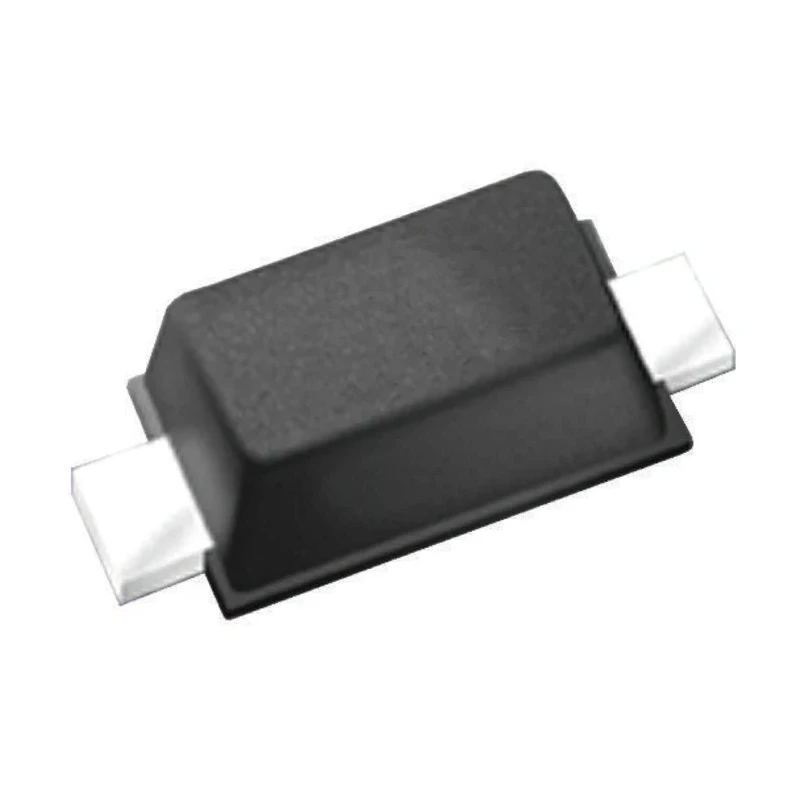

DiodesZetex 30 V 2 A Surface Mount Schottky Diode PowerDI323 PD3S230H-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 0.7mm |
| Length | 1.95mm |
| Model | PD3S230H-7 |
| Width | 1.3mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerDI323 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 600mV |
Key Features
- Maximum continuous forward current is 2 amperes ensuring reliable current handling.
- Peak reverse repetitive voltage rated at 30 volts for robust blocking capability.
- Single diode configuration with a 2-pin design for easy PCB mounting.
- Maximum forward voltage drop is low at 600 millivolts for high efficiency.
- Wide operating temperature range from -65°C to 150°C for versatile applications.
- Peak non-repetitive forward surge current of 30 amperes supports transient conditions.
- Conforms to automotive standard AEC-Q101 ensuring high reliability in automotive electronics.
- Manufactured in China and designed for surface mount applications.
Product Description
DiodesZetex PD3S230H-7 Schottky Diode is a high-performance semiconductor device engineered for industrial and electronic applications, featuring a PowerDI323 surface mount package. This diode has a maximum continuous forward current of 2 amperes and peak reverse repetitive voltage of 30 volts, which makes it suitable for power rectification tasks requiring low forward voltage drop and high efficiency.
With a forward voltage of 600 millivolts, it provides superior thermal stability and reliability, characteristic of Schottky barrier diodes. The device's 2-pin configuration and compact form factor (1.95 mm length, 1.3 mm width, 0.7 mm height) enable easy installation in densely packed circuit boards.
This diode operates efficiently across a wide temperature range from -65°C to 150°C, complying with automotive standard AEC-Q101, validating its suitability for automotive and other harsh environment electronics. The peak non-repetitive forward surge current rating of 30 amperes ensures durable performance during transient surges.
Ideal for use in power supplies, switching circuits, and as rectifiers in industrial, automotive, and commercial electronics, this component provides reliable performance with low forward losses. Its single diode configuration simplifies circuit design.
Maximum continuous forward current of 2 A ensures efficient current carrying. Peak reverse voltage of 30 V protects devices from reverse breakdown. Low forward voltage drop enhances power efficiency. Wide temperature operating range supports diverse environmental conditions.
Automotive standard AEC-Q101 ensures enhanced device reliability. Compact PowerDI323 package aids in space-saving PCB designs. Peak surge current rating facilitates transient event handling. Manufactured in China maintaining high quality standards.
Explore more Schottky diodes and rectifiers at EnvMart for a wide range of power semiconductor components suitable for precise industrial and electronic applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the PD3S230H-7 is 2 amperes, ensuring efficient current handling for various applications.
This model has a peak reverse repetitive voltage rating of 30 volts, providing robust blocking capability against reverse breakdown.
The maximum forward voltage drop is 600 millivolts, which contributes to its high efficiency in power applications.
It operates efficiently across a wide temperature range from -65°C to 150°C, making it suitable for diverse environmental conditions.
The peak non-repetitive forward surge current rating is 30 amperes, which supports transient conditions during operation.
This diode is packaged in a PowerDI323 surface mount configuration, which aids in space-saving PCB designs.
The PD3S230H-7 features a 2-pin configuration, facilitating easy installation on circuit boards.
It conforms to the automotive standard AEC-Q101, ensuring high reliability in automotive electronics applications.
The dimensions of the diode are 0.7 mm in height, 1.95 mm in length, and 1.3 mm in width.
This model is a Schottky rectifier, known for its low forward voltage drop and high efficiency.
The peak reverse current is rated at 100 microamperes, indicating low leakage under reverse bias conditions.
This diode is manufactured in China, adhering to high quality standards for semiconductor devices.
