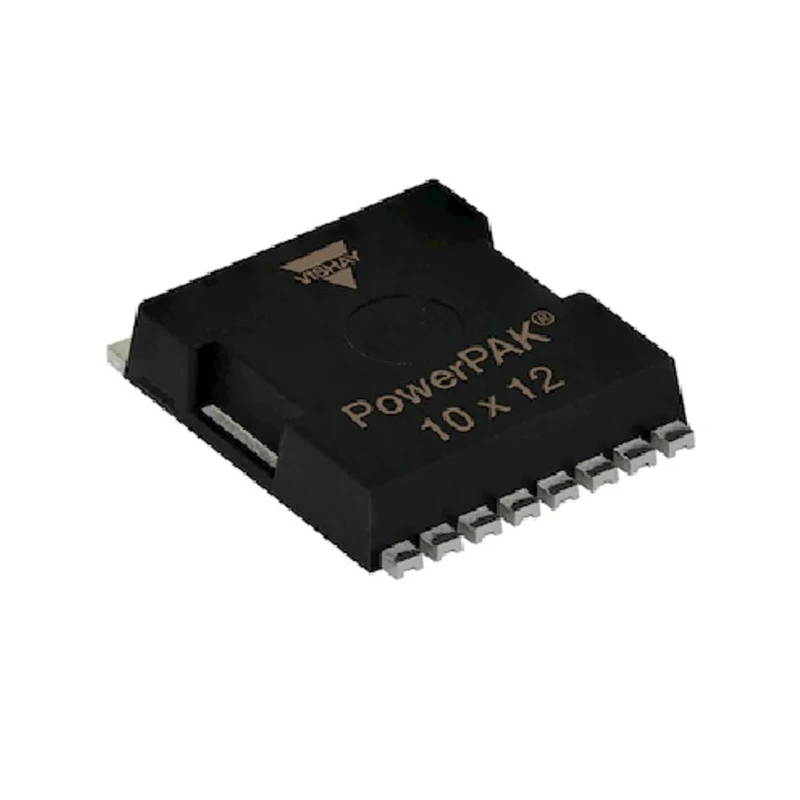

Vishay E N-Channel Power MOSFET 21 A, 650 V Depletion Mode, 8-Pin PowerPAK 10 x 12 SIHK125N60E-T1-GE3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | SIHK125N60E-T1-GE3 |
| Mount Type | Surface |
| Series | E |
| Maximum Operating Temperature | +150°C |
| Package Type | PowerPAK 10 x 12 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q101 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 21A |
| Maximum Drain Source Voltage Vds | 650V |
| Maximum Drain Source Resistance Rds | 0.109Ω |
| Channel Mode | Depletion |
| Maximum Power Dissipation Pd | 132W |
| Typical Gate Charge Qg @ Vgs | 54nC |
| Maximum Gate Source Voltage Vgs | 30V |
| Forward Voltage Vf | 1.2V |
Key Features
- High-voltage 650 V drain-source voltage for robust system designs.
- Supports continuous drain current up to 21 A for substantial load handling.
- Low on-resistance of 0.109 Ω reduces conduction losses effectively.
- Power dissipation rating of 132 W enables excellent thermal management.
- Depletion mode N-channel MOSFET optimized for demanding power-conversion applications.
- Surface-mount PowerPAK 10 x 12 package facilitates compact board layout.
- Typical gate charge of 54 nC ensures fast switching performance.
- Gate-source voltage tolerance up to 30 V supports aggressive drive schemes.
Product Description
Vishay SIHK125N60E-T1-GE3 is a high-voltage N-Channel Power MOSFET designed to deliver reliable performance in industrial, automotive, and power conversion systems. It supports a continuous drain current of 21 A and withstands drain-source voltages up to 650 V.
This depletion mode MOSFET features a low on-resistance (Rds(on)) of 0.109 Ω, reducing conduction losses and allowing efficient power management. Its PowerPAK 10 x 12 surface-mount package enables space-efficient PCB layouts suitable for dense board assemblies.
The device offers a maximum power dissipation of 132 W, allowing for higher thermal headroom in demanding applications. With a typical gate charge of 54 nC at Vgs, it balances switching speed with low gate drive requirements. The gate-source voltage tolerance of 30 V permits robust drive schemes necessary for various power electronics topologies.
Operating safely over a wide temperature range from -55 °C to +150 °C, this MOSFET is suitable for harsh environments often encountered in automotive and industrial applications. Compliant with RoHS directives and meeting the stringent AEC-Q101 automotive standard, it is ideal for automotive electronics requiring high reliability and quality certification.
Typical applications include high-voltage DC-DC converters in industrial systems, on-board automotive power distribution modules, motor drive stages, telecommunications power supplies, and implementations such as half-bridge or synchronous rectifiers.
High voltage tolerance for 650 V applications. Continuous 21 A drain current capability. Low Rds(on) conduction resistance. Supports extended thermal and operational conditions. Compact, surface-mount PowerPAK 10 x 12 package.
Fast switching due to low gate charge. Robust gate-source voltage handling. Automotive compliant with AEC-Q101. RoHS compliant for environmental safety.
This Vishay power MOSFET is a reliable choice for engineers seeking a robust, compact, and efficient transistor to handle demanding power switching applications. Explore further components and related products in the Power MOSFET category on EnvMart for comprehensive design options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for the Vishay SIHK125N60E-T1-GE3 is 21 A.
It can withstand a maximum drain-source voltage of 650 V.
The on-resistance (Rds(on)) of this model is 0.109 Ω.
The power dissipation rating is 132 W, allowing for effective thermal management.
It is housed in a PowerPAK 10 x 12 surface-mount package.
The typical gate charge at Vgs is 54 nC, which facilitates fast switching performance.
The gate-source voltage tolerance is up to 30 V.
This MOSFET operates safely over a temperature range from -55 °C to +150 °C.
Yes, it meets the AEC-Q101 automotive standard, ensuring high reliability for automotive applications.
It is RoHS compliant, adhering to environmental safety standards.
This model is suitable for high-voltage DC-DC converters, automotive power distribution modules, and motor drive stages.
This MOSFET has 8 pins.
