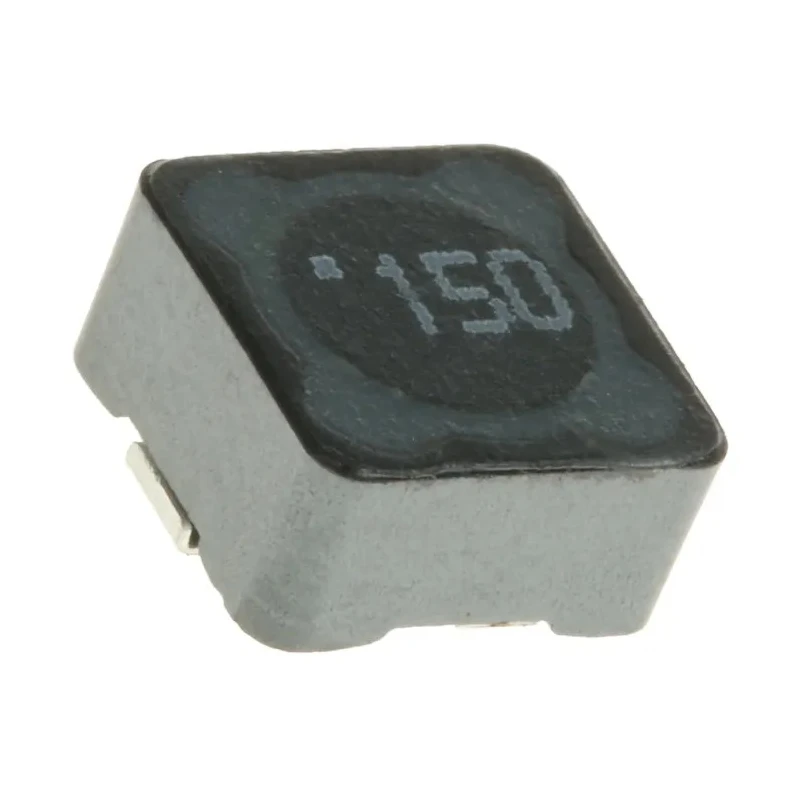

Wurth Elektronik Magnetically Shielded Wirewound Surface Mount Inductor 15 μH ±20 % 1.6 A Idc 7345 WE-PD 744777115
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 4.5mm |
| Length | 7.3mm |
| Depth | 7.3mm |
| Packaging | Tape & Reel |
| Series | WE-PD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 15μH |
| Standards/Approvals | EU&2015, RoHS 2011, REACH or declared EC1907, Halogen Free JEDEC 709B, 863, 2006 |
| Package/Case | 7345 |
| Maximum DC Current | 1.6A |
| Maximum DC Resistance | 810mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 19.5MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor features a 7345 package case and surface mount termination style.
- It operates reliably between -40°C and 125°C temperature range.
- The inductance tolerance is ±20%, ensuring consistent performance.
- Built with ferrite core material and wirewound construction for high storage capacity.
- Designed with magnetic shielding for low leakage magnetic fields.
- Rated maximum DC resistance is 810 mΩ and self-resonant frequency up to 19.5 MHz.
- Compliant with automotive standard AEC-Q200 and RoHS, REACH, and Halogen Free standards.
- Packaging is tape and reel, suitable for automated assembly processes.
Product Description
Wurth Elektronik 744777115 WE-PD series magnetically shielded wirewound surface mount inductor offers a nominal inductance of 15 μH with a tolerance of ±20%, optimized for switching regulators and integrated DC-DC converters. It supports a maximum DC current of 1.6 A, featuring a ferrite core and wirewound construction to deliver a stable inductance with minimal magnetic interference due to its magnetic shielding.
The inductor is housed in a 7345 package case with dimensions approximately 7.3 mm length, 7.3 mm depth, and 4.5 mm height. It operates effectively across a broad temperature range from -40°C to 125°C, making it suitable for automotive and industrial applications that require high reliability under harsh conditions.
Its low maximum DC resistance of 810 mΩ and a maximum self-resonant frequency of 19.5 MHz ensure efficient power handling and signal integrity in high-frequency circuits. The component meets stringent standards including AEC-Q200 for automotive use, RoHS 2011, REACH EC1907 compliance, and halogen-free requirements in accordance with JEDEC standards, emphasizing environmental safety and regulatory compliance.
The WE-PD series inductor is supplied in tape and reel packaging, facilitating automated surface mount technology (SMT) assembly processes common in electronics manufacturing. This design suits applications demanding high current loading, such as switching regulators with low operating voltages and graphic cards requiring high efficiency beyond 86%.
Applications include switching regulators, integrated DC-DC converters, and components within automotive electronics where vibration and shock resistance are critical. The plastic base variant of this series offers robust construction for high vibration environments.
The inductor features a 7345 package suitable for compact surface mounting. Magnetically shielded design minimizes electromagnetic interference. Complies with automotive and environmental standards for reliability and safety.
High current carrying capacity ensures compatibility with demanding electronic circuits. Long operational life with temperature range from -40°C to 125°C. Discover a wide range of Surface Mount Inductors and electronic components at EnvMart for your industrial and commercial electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this inductor is 15 μH with a tolerance of ±20%.
It supports a maximum DC current of 1.6 A.
The dimensions of the 7345 package case are approximately 7.3 mm in length, 7.3 mm in depth, and 4.5 mm in height.
It operates effectively between -40°C and 125°C.
The maximum DC resistance is rated at 810 mΩ.
The maximum self-resonant frequency is up to 19.5 MHz.
It features a wirewound construction with a ferrite core material.
Yes, it complies with automotive standard AEC-Q200 and is RoHS, REACH, and Halogen Free compliant.
The inductor uses a surface mount termination style.
It is supplied in tape and reel packaging, suitable for automated assembly processes.
It is suitable for applications such as switching regulators and integrated DC-DC converters, particularly in automotive electronics.
The magnetic shielding minimizes electromagnetic interference, ensuring low leakage magnetic fields.
