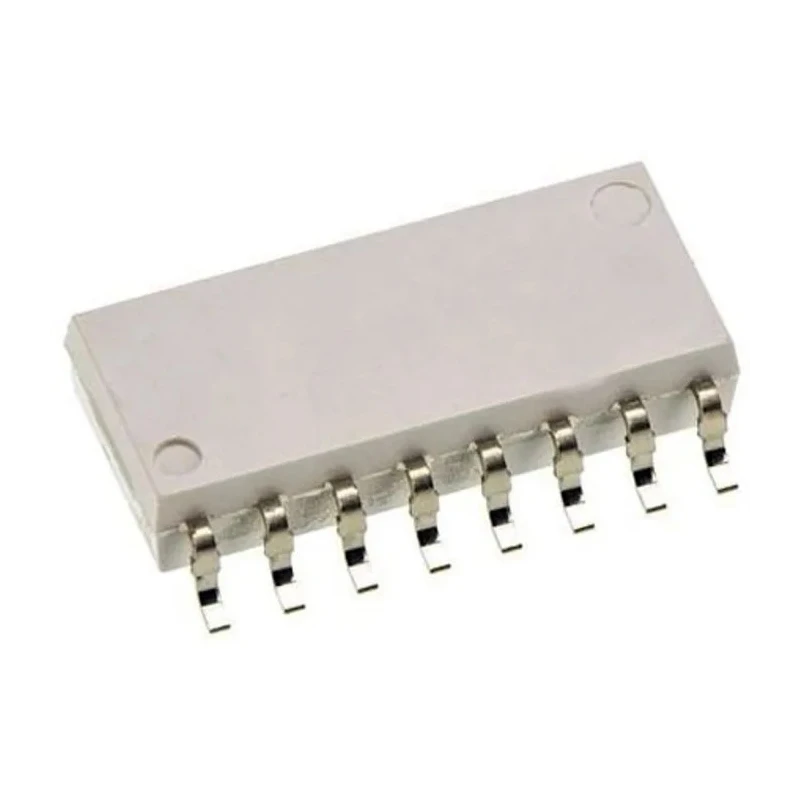

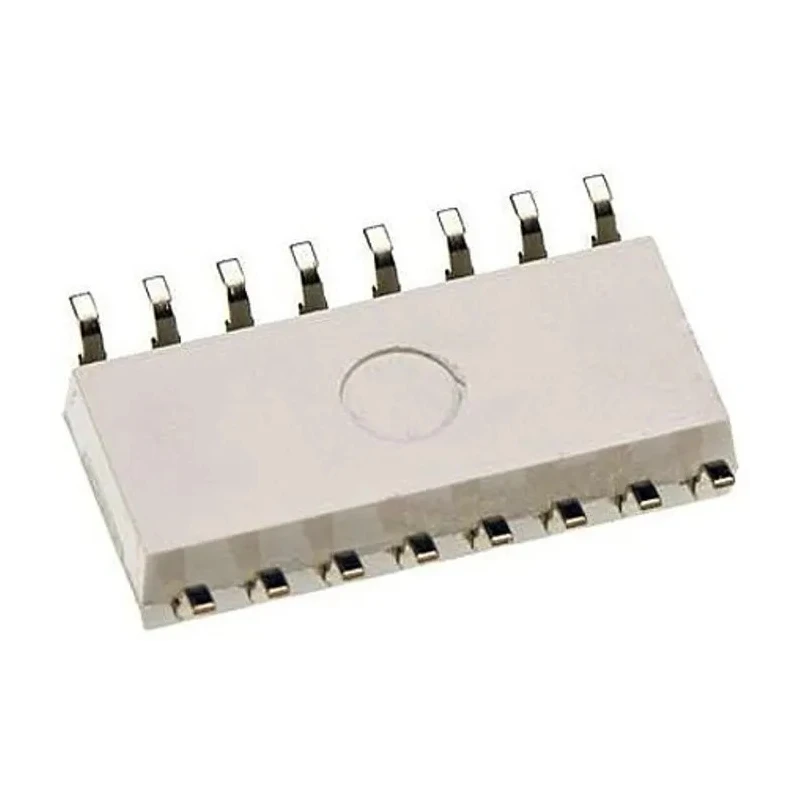

Vishay DC Input 4-Channel Optocoupler Surface Mount 16-Pin SOP TCMT4600

Vishay TCMT4600 is a robust DC input 4-channel optocoupler designed to provide electrical isolation between input and output signals. The device utilizes phototransistor output technology housed in a surface-mount 16-pin SOP package. It incorporates a gallium arsenide infrared-emitting diode optically coupled to phototransistors to ensure high reliability and excellent switching characteristics.

Each of the four channels delivers isolated signal transfer with a maximum forward voltage of 1.6V and maximum input current of 60mA. The device operates reliably in a wide temperature range from -40°C to 100°C, making it suitable for various climates and operational conditions. The low coupling capacitance of about 0.3 pF enhances signal integrity by minimizing interference and crosstalk.

Current transfer ratio (CTR) values are carefully selected and grouped to guarantee consistent performance, ranging from 80% minimum to 300% maximum, with minimal temperature dependency. Rise and fall times of 3μs and 4.7μs respectively provide efficient switching suitable for high-speed logic circuits.

The TCMT4600 features an outstanding AC isolation voltage rating of 3.75kVrms, providing strong electrical isolation to protect sensitive electronic components and circuits. The device complies with rigorous international safety and quality standards such as BS EN60950-1:2006, UL1577, and cUL CSA 22.2, ensuring dependable operation in industrial and commercial applications.

Applications for this optocoupler include use in programmable logic controllers, data modems, answering machines, industrial control systems and a wide range of general-purpose optoelectronic circuits. Its compact surface mount design and robust electrical characteristics enable easy integration into PCB assemblies with improved production efficiency.

The device features four isolated channels with phototransistor outputs for signal isolation. Wide operating temperature range from -40°C to 100°C for harsh environments. Low forward voltage and input current optimize power consumption.

Low coupling capacitance minimizes signal distortion and noise interference. High isolation voltage of 3.75 kVrms ensures safety in high-voltage circuits. Compliance with multiple international standards guarantees reliable operation.

Suitable for industrial, laboratory, and commercial electronics applications. 16-pin SOP package ideal for surface mounting in compact designs. Current transfer ratio grouped for predictable electrical performance across temperature.
