Vishay DC Input 4-Channel Optocoupler Surface Mount 16-Pin SOP SFH6916

Free Delivery in India | Lowest Global Shipping Charges

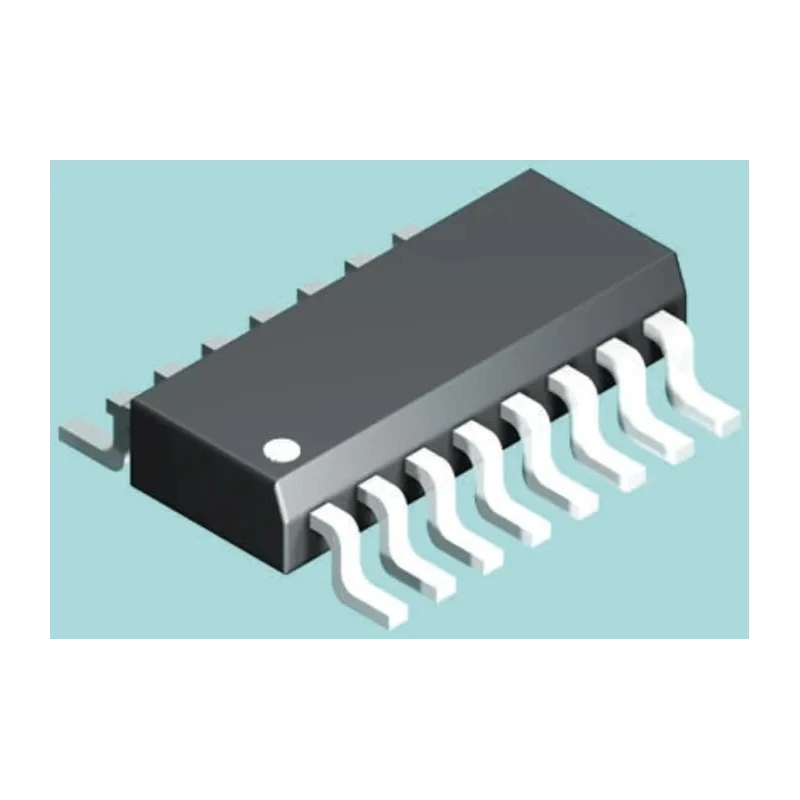

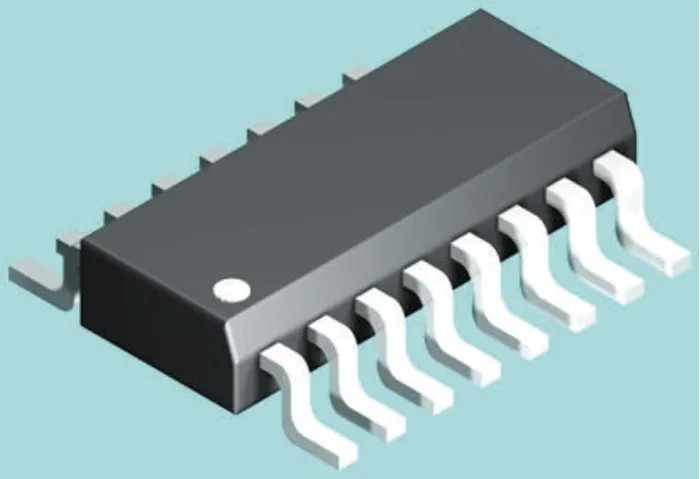

Vishay DC Input 4-Channel Optocoupler Surface Mount 16-Pin SOP SFH6916

Name: Vishay DC Input 4-Channel Optocoupler Surface Mount 16-Pin SOP SFH6916
Brand: Vishay
SKU: 217643
Price: 2.07 USD
Availability: InStock



Category Optocoupler Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Model	SFH6916
Mount Type	Surface
Series	SFH
Maximum Operating Temperature	100°C
Package Type	SOP
Minimum Operating Temperature	-55°C
Maximum input current	50mA
Number Of Channels	4
Standards/Approvals	UL, EN, CSA
Maximum Forward Voltage	1.4V
Number of Pins	16
Input Current Type	DC
Typical Rise Time	4μs
Maximum Current Transfer Ratio	300%
Typical Fall Time	3μs
Minimum Current Transfer Ratio	50%
Isolation Voltage	3750V ac

Key Features

The device features a maximum forward voltage of 1.4V and a maximum input current of 50mA.
It supports a voltage isolation of 3750V ac for enhanced safety in electrical systems.
The typical rise and fall times are 4μs and 3μs respectively, ensuring fast signal transmission.
Operating temperature range spans from -55°C to 100°C, suitable for diverse industrial environments.
Maximum current transfer ratio is 300% while the minimum is 50%, guaranteeing stable switching performance.
The product complies with UL, EN, and CSA standards for quality assurance.
The package type is SOP with 16 pins, optimized for surface mounting on PCBs.
Designed for DC input applications with logic output, making it ideal for industrial and instrumentation uses.

Product Description

Vishay SFH6916 DC Input 4-Channel Optocoupler is a high-performance semiconductor device designed for electrical signal isolation in industrial, telecommunications, and laboratory applications. This 16-pin SOIC surface-mount optocoupler is engineered to provide dependable signal transmission with excellent electrical isolation of 3750V ac, which enhances system safety and noise immunity.

The device operates with a maximum forward voltage of 1.4V and can handle a maximum input current of 50mA. The typical rise time of 4μs and fall time of 3μs ensure the rapid switching necessary in modern electronic circuits. Operating temperature ranges from -55°C to 100°C, making it suitable for harsh industrial environments.

This optocoupler features a maximum current transfer ratio of 300% and a minimum of 50%, offering consistent and efficient signal conduction. It is UL, EN, and CSA approved, meeting stringent safety and performance standards. The package is a 16-pin SOP designed for surface mounting on printed circuit boards, facilitating compact and reliable circuit designs.

Common applications include isolation in AC adapters, switch mode power supplies, programmable logic controllers, industrial controls, telecom systems, smart meters, office equipment, and solar inverters. Its robust construction allows usage in various sectors including industrial automation, construction, and telecommunications.

The device features a maximum forward voltage of 1.4V and input current of up to 50mA. It offers an isolation voltage of 3750V AC suitable for high-voltage environments. Typical signal rise and fall times are 4μs and 3μs respectively for fast switching.

Operating temperature from -55°C to 100°C supports use in wide temperature ranges. Complies with UL, EN, and CSA standards ensuring compliance and safety. 16-pin SOP package designed for surface mounting on PCBs. Logic output supports integration with various digital circuits.

High current transfer ratio ensures effective signal transmission.
