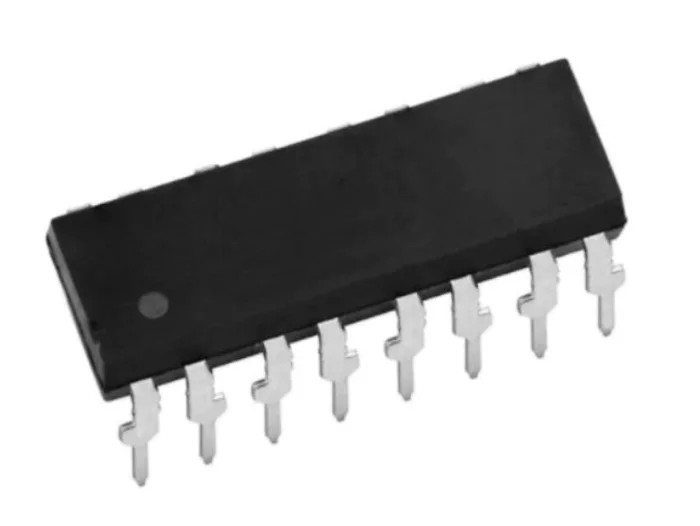

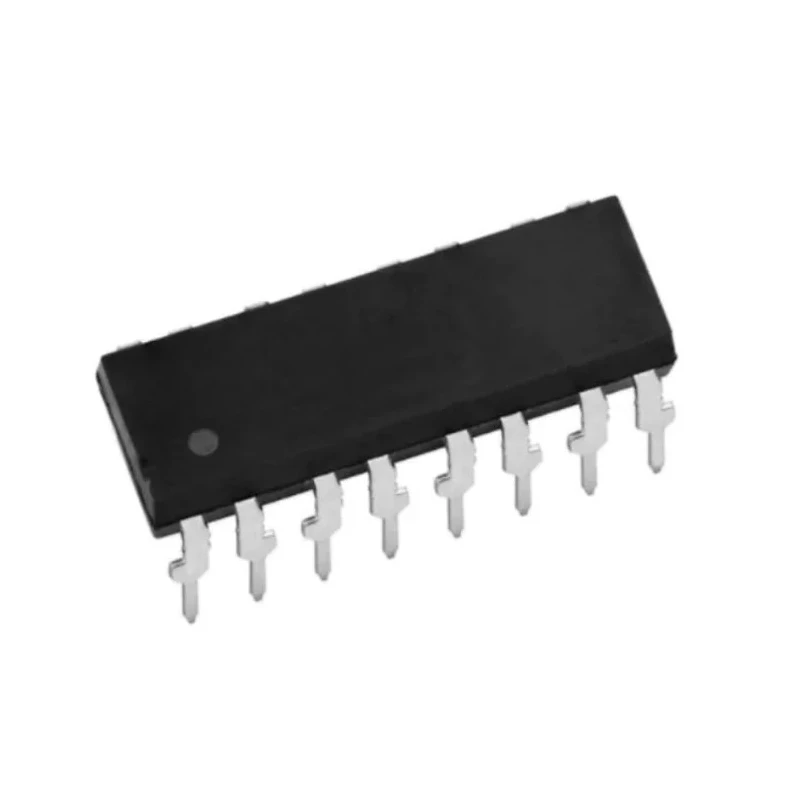

Vishay DC Input 4-Channel Optocoupler Through Hole 16-Pin PDIP ILQ621GB

Vishay ILQ621GB DC Input 4-Channel Optocoupler is designed to provide high-performance optical isolation with four separate channels in a 16-pin PDIP through-hole package. It features a DC input current type with a maximum forward voltage of 1.3 V, ensuring efficient low voltage operation suitable for sensitive electronic circuits.

This optocoupler offers a high isolation voltage of 5300 V AC, making it ideal for industrial, telecommunications, and instrumentation applications that require electrical isolation and protection against high voltages.

The device supports a wide operating temperature range from -55°C to 100°C, ensuring reliable function in harsh environments. The typical rise time of 2.8 μs and fall time of 11 μs facilitate rapid signal transmission with minimal delay, beneficial for high-speed switching and control circuits.

With a maximum input current rating of 60 mA and current transfer ratio ranging from 100% to 600%, this component ensures excellent performance for digital isolations and signal transmission with amplification. It is compliant with relevant international standards such as BSI IEC 60950, DIN EN 60747-5-2, DIN EN 60747-5-5, UL1577, and RoHS directives, reflecting its quality and environmental adherence.

The optocoupler contains four separate isolation channels for simultaneous multi-signal isolation. Its through-hole PDIP package simplifies mounting and handling in prototype and production environments. Industrial applications include power supplies, motor controls, and safety isolation circuits.

Suitable for electronic isolation in laboratory instrumentation and communication equipment.

Set contains one Vishay ILQ621GB optocoupler chip packaged in a 16-pin PDIP tube, ready for insertion into through-hole circuit boards.Explore more components in the Optocoupler category at EnvMart for specialized electronic solutions.
