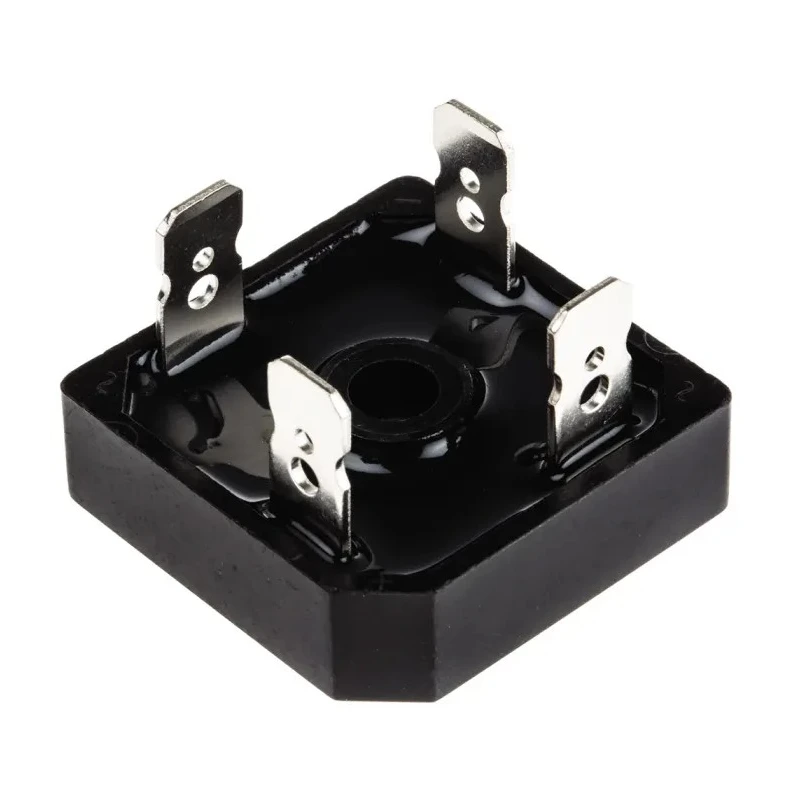

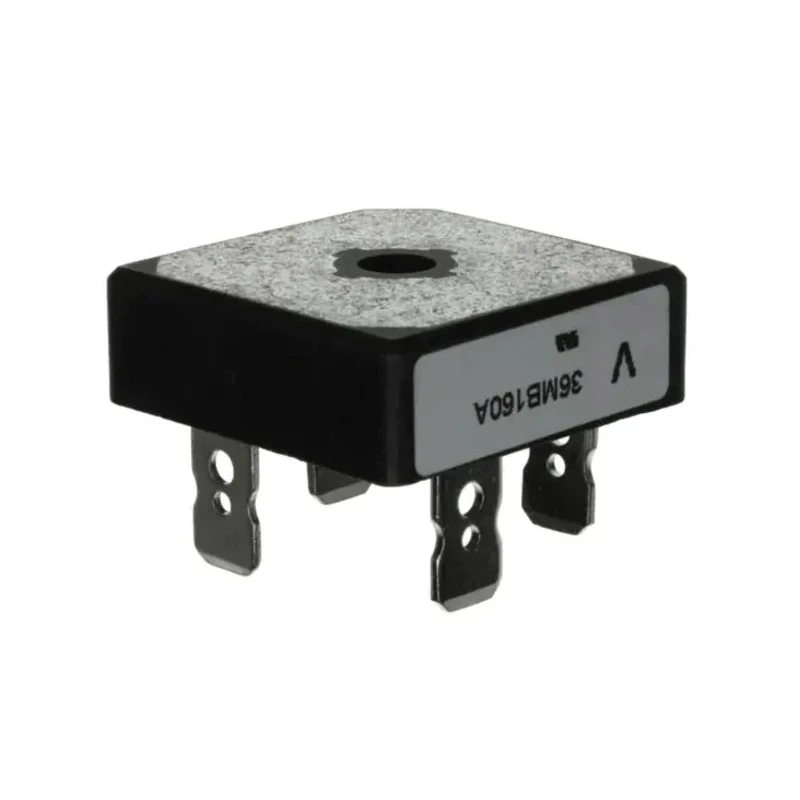

Vishay Bridge Rectifier 1600 V 155 A 4-Pin Single VS-36MB160A

Vishay VS-36MB160A Bridge Rectifier is a discrete semiconductor power component designed for converting alternating current (AC) to direct current (DC) using full-wave rectification. It features a high peak reverse repetitive voltage of 1600 V and a forward current of 35 A, making it suitable for demanding power electronics applications.

The device comes in a D-34 screw mount package measuring 28.5 mm x 28.5 mm x 9.8 mm, with a thermally conductive, electrically insulated case enhancing thermal management and electrical isolation. The component supports a wide operating temperature range from -40°C to 150°C, ensuring durability in harsh environments.

This single-phase 4-pin bridge rectifier includes universal 3-way push-on terminals that can also be wrapped around or soldered, providing flexibility in mounting and connection.

Typical usage of this bridge rectifier includes power supplies, industrial machinery, and electronic equipment where robust rectification and thermal performance are critical. Its package design balances power and volume efficiency, making it ideal for integration into compact assemblies.

The device features very low peak reverse current and a peak forward voltage of 1.3 V for efficient operation. This Bridge Rectifier supports a peak reverse repetitive voltage of 1600 V. It has a forward current rating of 35 A and peak non-repetitive forward surge current of 155 A.

The unit features 4 pins and a single-phase configuration. Its maximum operating temperature is 150°C, while the minimum operating temperature is -40°C. The peak forward voltage is 1.3 V, providing efficient electrical performance.

The package dimensions are 28.5 mm length, 28.5 mm width, and 9.8 mm height. The case is electrically insulated with high thermal conductivity for improved reliability. Mounting is via screw with universal 3-way terminals suitable for push-on, wrap around, or solder connections.

Designed for industrial, electronic, and power conversion applications. Manufactured in India and series designation is VS-36MB. Explore more Vishay semiconductor components at EnvMart for high-performance electronic solutions.
