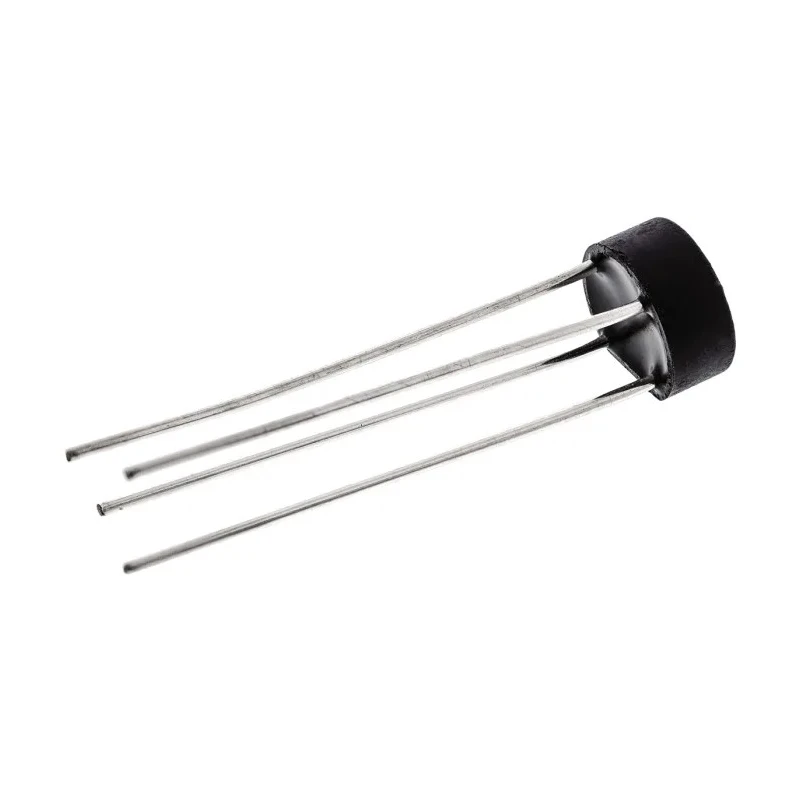

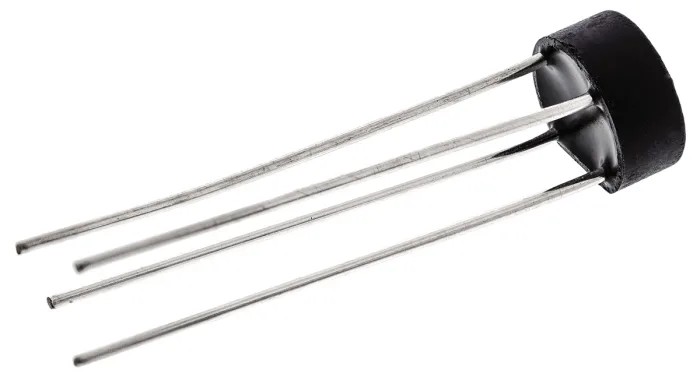

Vishay Bridge Rectifier 200 V 50 A 4-Pin Single W02G-E4/51
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 9.86mm |
| Brand | Vishay |
| Height | 5.6mm |
| Length | 9.86mm |
| Model | W02G-E4/51 |
| Width | 8.84mm |
| Mount Type | Through Hole |
| Series | W02G |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Case | WOG |
| Package Type | WOG |
| Minimum Operating Temperature | -55°C |
| Polarity | As marked on body |
| Terminals | Silver plated leads, solderable per |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Forward Current If | 1.5A |
| Peak Forward Voltage Vf | 1V |
| Material categorization | For definitions of compliance |
| Vishay Bridge Rectifier, 400 V 50 A, 4-Pin SingleBrand | Vishay |
| SIL.BRIDGES 1A/200VBrand | NEUTRAL |
| Vishay Bridge Rectifier, 1.5A, 200V, 4-PinBrand | Vishay |
| Taiwan Semiconductor Bridge Rectifier, 1.5A, 200V, 4-PinBrand | Taiwan Semiconductor |
Key Features
- Operates at a peak reverse repetitive voltage of 200 volts.
- Supports a maximum forward current of 1.5 amperes and surge current of 50 amperes.
- Features a 4-pin through-hole package for robust PCB mounting.
- Designed for operating temperatures ranging from -55°C to 150°C.
- Includes silver plated leads for durability and reliable soldering.
- Compact form factor with dimensions approximately 9.86 mm x 8.84 mm x 5.6 mm.
- Constructed with materials meeting UL 94 V-0 flammability rating.
- Ideal for general purpose use in AC/DC bridge rectification applications.
Product Description
Vishay W02G-E4/51 Bridge Rectifier is a high-performance semiconductor device designed for reliable AC to DC conversion in industrial and commercial applications. It features a 4-pin through hole WOG package, supporting a forward current of 1.5 A and a peak reverse repetitive voltage of 200 V.
This Bridge Rectifier offers robust operation within a temperature range of -55°C to 150°C, ensuring reliable functionality under demanding thermal conditions. The device is ideal for printed circuit boards requiring efficient full-wave rectification for power supplies, adapters, chargers, lighting ballasters, and other consumer electronics.
The rectifier incorporates silver plated leads that are solderable per J-STD-002 and JESD22-B102 standards, ensuring secure connections and long-term durability. Its molding compound complies with UL 94 V-0 flammability rating, enhancing safety and reliability in electrical circuits.
Typical forward voltage is approximately 1 V with a minimal reverse current of 5 μA, contributing to efficient performance and reduced power loss. The package dimensions are compact at 9.86 mm length, 8.84 mm width, and 5.6 mm height, allowing for space-efficient PCB layouts.
Vishay W02G-E4/51 is UL recognized (file number E54214) and designed for general-purpose bridge rectification applications across industrial, laboratory, and commercial sectors. Operates at a peak reverse repetitive voltage of 200 volts.
Supports a maximum forward current of 1.5 amperes and surge current of 50 amperes. Features a 4-pin through-hole package for robust PCB mounting. Designed for operating temperatures ranging from -55°C to 150°C. Includes silver plated leads for durability and reliable soldering.
Compact form factor with dimensions approximately 9.86 mm x 8.84 mm x 5.6 mm. Constructed with materials meeting UL 94 V-0 flammability rating. Ideal for general purpose use in AC/DC bridge rectification applications. Complies with UL approval E54214 for quality assurance.
Explore Vishay components and related semiconductor products on EnvMart for optimized electronic design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this model is 200 volts.
It supports a maximum forward current of 1.5 amperes.
The dimensions of this unit are approximately 9.86 mm in length, 8.84 mm in width, and 5.6 mm in height.
The surge current rating for this bridge rectifier is 50 amperes.
It features a 4-pin through-hole package for robust PCB mounting.
This model is designed to operate within a temperature range of -55°C to 150°C.
The leads are silver plated, ensuring durability and reliable soldering.
The typical forward voltage is approximately 1 volt.
Yes, it is UL recognized with file number E54214.
The minimum reverse current is 5 microamperes (5 μA).
It is ideal for general-purpose use in AC/DC bridge rectification applications such as power supplies, adapters, and chargers.
The case type for this model is WOG.
