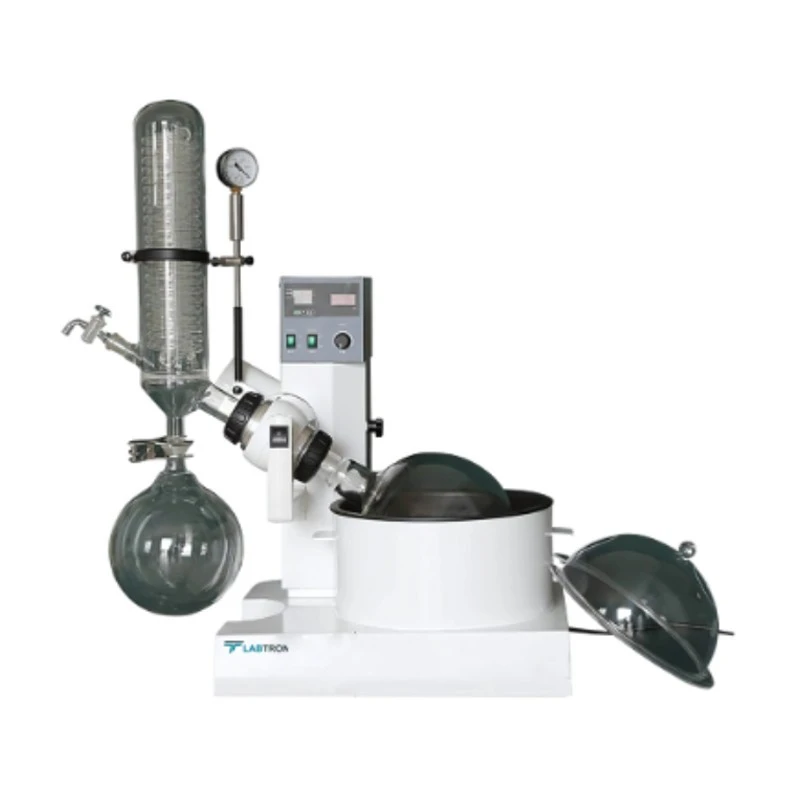

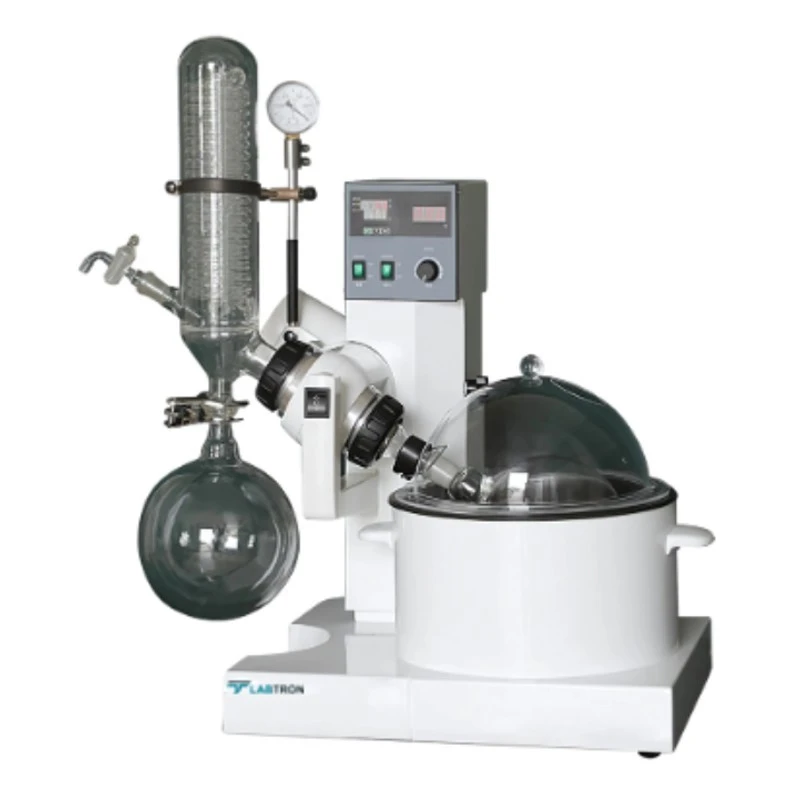

Rotary Evaporator ERE-A10
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Material | SUS 304 |
| Power | 220 V / 60 Hz |
| Model | LRE-A10 |
| Weight | 66 kg |
| Type of Product | Rotary Evaporator |
| Certification | ISO and CE |
| Heating Power | 2300 W |
| Rotation Speed | 0 to 110 rpm |
| Dimension (L×W×H) | 740 × 440 × 960 mm |
| Condenser Type | Vertical condenser |
| Evaporating Flask | 5 L + 1 L |
| Lifting Type | Automatic lifting |
| Optional Evaporating Flask | 1 L / 2 L / 3 L |
| Receiving Flask | 3 L |
| Condensing Surface | 0.32 m² |
| Reachable Vacuum Rate | Less than 133 Pa |
| Bath Power | 2.2 kW |
| Rotation Power | 40 W |
| Bath Size Capacity | 15 L |
| Maximum evaporating speed (H2O) | 2 L/hr |
| Static temperature control range and wave | RT – 99°C / 150°C ± 2°C |
Key Features
- Universal water heating bath
- Vertical glassware
- In built vacuum meter for quick vacuum reading
- Ergonomically designed
- LCD display for smooth user control
- Motorized flask lift with safety automatic release of evaporating flask in
- case of power failure
- Chemical resistant PTFE seals
- Automated water bath filling
- Rotation speed : 0 ~ 110 rpm
- ISO and CE certified
Product Description
Rotary evaporator LRE-A10 is a distinctively fabricated distillation unit equipped with optimal automatic modules with vacuum control. Vertical glass condenser with higher boiling point for effective distillation of solvents. Equipped with three different types of condensers for different operational needs. With automatic water bath filling, maximum solvent recovery rate, and static temperature control range, it is perfect for complex distillation processes.
Applications:
Used for flavor extraction in food industry, solvent removal in separation and recycling chemical/educational/fuel/environmental industry, to determine sample concentration, HPLC and natural product sample preparation, drying down powders (using test tube adapter), and trapping hazardous waste liquid.
Safety Features:
- Over current protection
- No-spark electric control
- Ex-proof modification on motor, rotation & heating control, lower heating power density, equip dry heat and overheat cut-off protector
Functional Configurations:
- Model No. LRE-A10
- PTFE discharge valve: PTFE
- Charging valve: Glass
- Digital display: Bath Temperature, Rotation speed
- PTFE seal assembly: Have
- Continuous charge: Have
- Taper joint PTFE Sleeve: Have
- Continuous receiving: Have
- Frequency conversion speed control: Have
- Vacuum meter: Have
- Throttle valve for vacuum: Have
- Flange Joints: Have
- Low noise: Have
- Bath lift: Have
- Bumping system: Have
- Cold trap: Optional
- Water bath lid: Optional
- Ex-proof motor: Optional
- Thermometer neck for vapor: Optional
- Evaporating flask unload handler: Optional
- Optional evaporating flask: 250 ml, 1 L, 3 L
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum rotation speed of this model is 110 rpm.
It operates at a power of 220 V / 60 Hz and has a heating power of 2300 W.
This unit weighs 66 kg.
The dimensions of this model are 740 × 440 × 960 mm.
It is equipped with a vertical condenser.
The maximum evaporating speed for water is 2 L/hr.
The reachable vacuum rate is less than 133 Pa.
The water bath capacity is 15 L.
It includes over current protection, no-spark electric control, and an ex-proof modification on the motor.
It is compatible with 5 L and 1 L evaporating flasks, with optional sizes of 1 L, 2 L, and 3 L.
This model is certified with ISO and CE standards.
