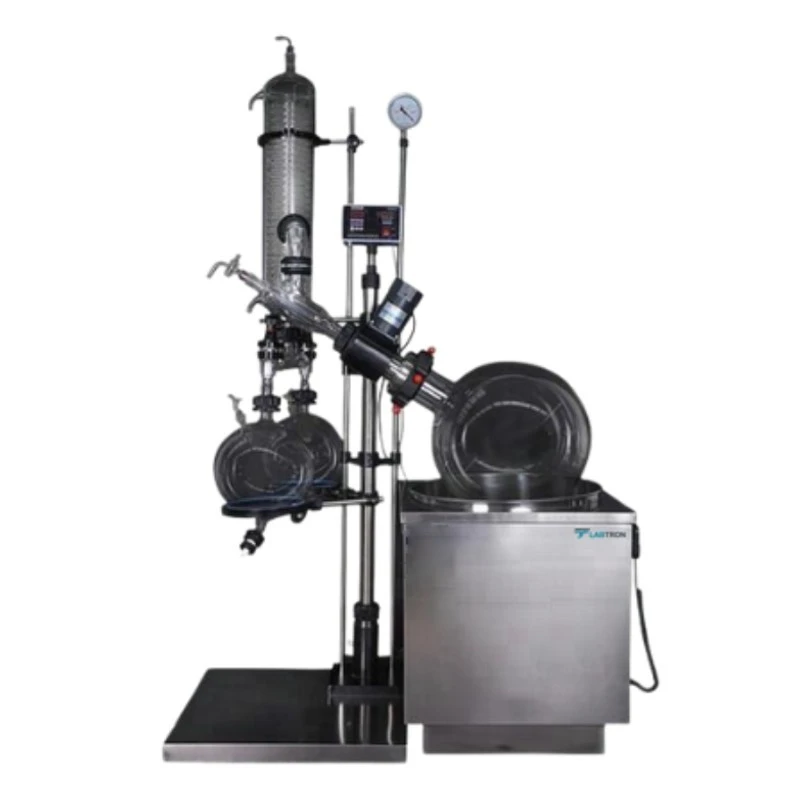

Rotary Evaporator ERE-A13
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Material | SUS 304 |
| Power | 220 V / 60 Hz |
| Model | LRE-A13 |
| Certifications | ISO and CE |
| Type of Product | Rotary Evaporator |
| Heating Power | 9000 W |
| Rotation Speed | 3 to 110 rpm |
| Dimensions (L×W×H) | 1300 x 800 x 2300 mm |
| Condenser Type | Vertical condenser |
| Evaporating Flask | 50 L / F 125 |
| Lifting Type | Automatic lifting |
| Optional Evaporating Flask | 20 L + 10 L / bottom discharge |
| Max Evaporating Speed (H2O) | 10 L/hr |
| Condensing Surface | 1.5 m² |
| Reachable Vacuum Rate | Less than 133 Pa |
| Bath Power | 9 kW |
| Rotation Power | 400 W |
| Bath Size Capacity | 70 L |
| Static temperature control range and wave | RT – 99°C / 150°C ± 2°C |
Key Features
- LCD display for user control
- Receiving flask equipped with bottom discharge
- Solvent resistant PTFE vacuum seal
- Motorized lift
- Cooling surface of 1500 cm2
- Durable glass charging valve
- Automated water bath filling
- Anti-corrosion cork preventing contamination of solvent
- Frequency conversion speed controller
- Bumping tube to prevent unexpected solution into receiving flask
- Wearable and anti-corrosion sealing system
- Safety control circuits
- Easy , safe and user friendly operation
- ISO and CE certified
Product Description
Rotary Evaporator LRE-A13 is a high quality rotary evaporator to meet the distillation needs of laboratory applications. Its optimized bath volume allows for fast heat-up and the condenser has glass tubes that utilize the 15000 cm² surface extremely efficiently. It is crafted for minimal space requirement and is integrated with heating bath, automatic motorized lift and bottom discharge receiving flask making it ideal for even complex distillation processes. This model of rotary evaporator delivers reliable and reproducible process results that are usually reserved for far more costly systems.
Applications:
Used for flavor extraction in food industry, solvent removal in separation and recycling chemical/educational/fuel/environmental industry, to determine sample concentration, HPLC and natural product sample preparation, drying down powders (using test tube adapter), and trapping hazardous waste liquid.
Safety Features:
- Over current protection
- No-spark electric control
- Ex-proof modification on motor, rotation & heating control, lower heating power density, equip dry heat and overheat cut-off protector
- Ex-proof upgrade
Functional Configurations:
- Model No. LRE-A13
- PTFE rotary seal assembly: Have
- PTFE discharge valve: PTFE
- Digital Display: Bath Temperature, Rotation speed
- Taper joint PTFE sleeve: Have
- Vacuum gauge: Have
- Continuous receiving: Have
- Bumping system: Have
- Charging valve: Glass
- Water bath lid: Optional
- Cold trap protection system: Optional
- Thermometer neck for vapor: Optional
- Evaporating flask unload handler: Optional
- Ex-proof motor: Optional
- Overall flange joints: Have
- Frequency conversion speed controls: Have
- Throttle valve for vacuum: Have
- Optional evaporating flask (baffles on request): 10 L, 20 L, 30 L
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum evaporating speed of the Rotary Evaporator ERE-A13 is 10 L/hr when using water as the solvent.
This rotary evaporator operates on a power supply of 220 V / 60 Hz and has a heating power of 9000 W.
The rotation speed of this model ranges from 3 to 110 rpm.
The dimensions of this rotary evaporator are 1300 x 800 x 2300 mm.
It features a vertical condenser that utilizes a condensing surface of 1.5 m².
The included evaporating flask has a capacity of 50 L / F 125.
The reachable vacuum rate for this rotary evaporator is less than 133 Pa.
The static temperature control range is from RT to 99°C, with a maximum of 150°C ± 2°C.
Safety features include over current protection, no-spark electric control, and an ex-proof modification on motor, rotation, and heating control.
The rotary evaporator is made from SUS 304 material.
The Rotary Evaporator ERE-A13 is certified with ISO and CE standards.
Optional features include additional evaporating flasks (10 L, 20 L), a water bath lid, and cold trap protection system.
