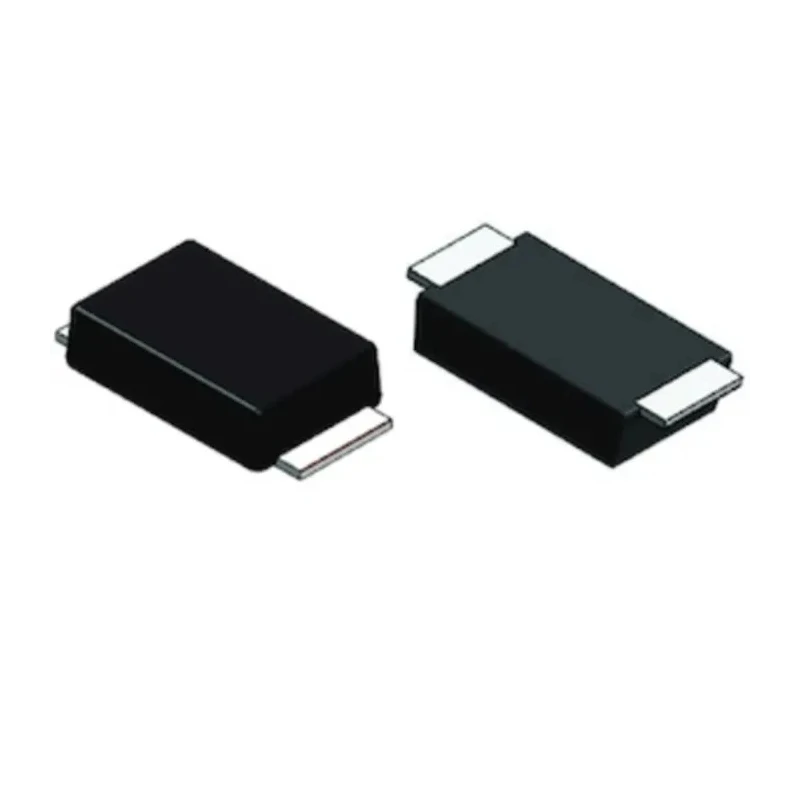

Vishay 200 V 3 A General Purpose Diode Surface Mount DO-221AD VS-3EYH02HM3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.7mm |
| Length | 5mm |
| Model | VS-3EYH02HM3/H |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-221AD |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A |
| Maximum Forward Voltage Vf | 0.71V |
| Peak Reverse Recovery Time trr | 16ns |
Key Features
- Surface mount design suitable for automated placement.
- Low forward voltage drop of 0.71 V ensures efficient power regulation.
- Fast switching with a peak reverse recovery time of 16 ns.
- Wide operating temperature range from -55°C to 175°C allows reliability in harsh environments.
- Peak non-repetitive forward surge current of 70 A supports transient load conditions.
- Minimal leakage current with peak reverse current of only 2 μA.
- Complies with automotive standard AEC-Q101 for high reliability applications.
- Compact dimensions of 5 mm length and 2.7 mm height enable space-saving PCB layouts.
Product Description
The Vishay VS-3EYH02HM3/H General Purpose Diode is a surface mount component designed for efficient and reliable rectification in electronic circuits requiring up to 200 V reverse voltage and 3 A forward current. Packaged in the DO-221AD form factor, this diode features low forward voltage drop of 0.71 V and rapid switching capabilities with a peak reverse recovery time of 16 ns, making it ideal for high-frequency inverter circuits, freewheeling applications, DC/DC converters, and polarity protection in commercial, industrial, and automotive systems.
Its wide operating temperature range from -55°C to 175°C and compliance with the AEC-Q101 automotive standard ensure excellent performance and durability even in harsh environments. The diode's peak non-repetitive forward surge current rating of 70 A ensures resilience against transient load spikes. With minimal leakage current of only 2 μA, it maintains high efficiency and low power loss.
Compact with a 5 mm length and 2.7 mm height, this diode fits easily into tightly packed circuit boards, supporting automated surface mount assembly processes. It belongs to Vishay’s eSMP series of semiconductor components known for high-quality and reliability.
This diode is manufactured in China and supplied in bulk reels suitable for volume production. It supports a diverse range of industrial, automotive, laboratory, and manufacturing applications where robust rectification and switching are required.
Surface mount design suitable for automated placement. Low forward voltage drop of 0.71 V ensures efficient power regulation. Fast switching with a peak reverse recovery time of 16 ns. Wide operating temperature range from -55°C to 175°C allows reliability in harsh environments.
Peak non-repetitive forward surge current of 70 A supports transient load conditions. Minimal leakage current with peak reverse current of only 2 μA. Complies with automotive standard AEC-Q101 for high reliability applications.
Compact dimensions of 5 mm length and 2.7 mm height enable space-saving PCB layouts. Explore Vishay Schottky Diodes & Rectifiers and related semiconductor components for robust power electronics design and manufacturing at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse voltage rating of this diode is 200 V.
This model can handle a maximum continuous forward current of 3 A.
The forward voltage drop is 0.71 V, ensuring efficient power regulation.
It features a peak reverse recovery time of 16 ns, allowing for fast switching.
The operating temperature range is from -55°C to 175°C, making it suitable for harsh environments.
The peak non-repetitive forward surge current rating is 70 A, which supports transient load conditions.
This diode is designed for surface mount installation, suitable for automated placement.
The diode is packaged in a DO-221AD form factor.
It has compact dimensions of 5 mm in length and 2.7 mm in height.
This model complies with the AEC-Q101 automotive standard for high reliability applications.
The peak reverse current is only 2 μA, indicating minimal leakage current.
It is suitable for high-frequency inverter circuits, freewheeling applications, DC/DC converters, and polarity protection.
