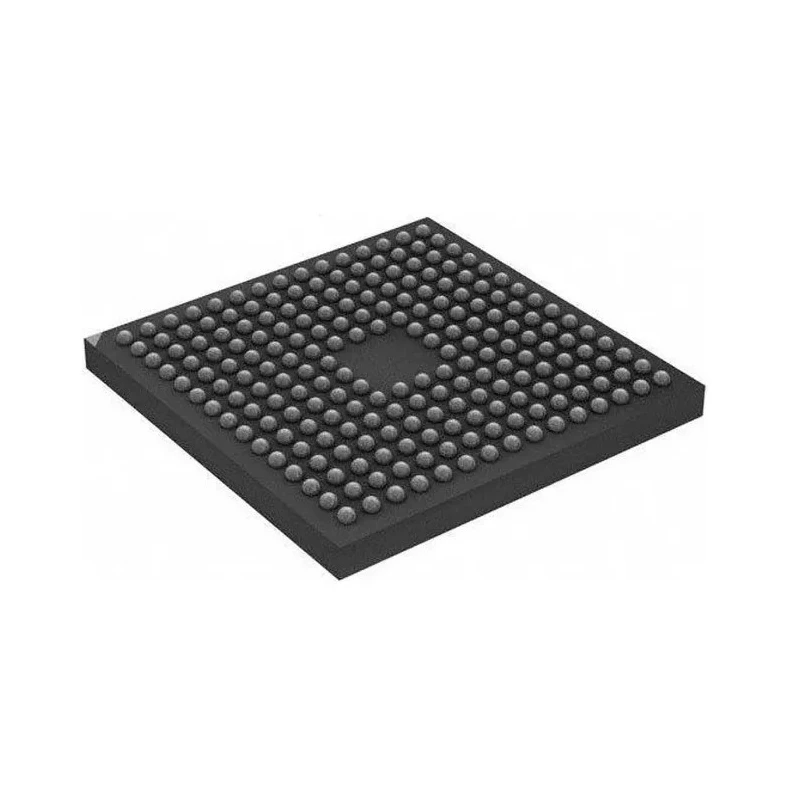

STMicroelectronics 32 bit ARM Cortex M4 Microcontroller STM32F429NIH6, 180 MHz, 2048kB FLASH, 216-Pin BGA

The STMicroelectronics STM32F429NIH6 is a 32 bit ARM Cortex M4 microcontroller designed for high-performance embedded systems in industrial, commercial, and multimedia applications. Operating at a maximum clock frequency of 180 MHz, this device integrates 2048kB of dual bank Flash memory and 258kB of RAM, including 64kB CCM for core-coupled memory data.

This microcontroller is housed in a 216-pin BGA surface mount package with dimensions 13.15mm x 13.15mm x 1.1mm, suitable for compact and efficient PCB layouts. It supports a voltage range from 1.7V minimum to 3.6V maximum ensuring flexible power supply options with a typical power dissipation of 690 mW under maximum load.

It features a rich set of peripherals including 14 timers, 2 x 12-bit DACs, 24 x 12-bit ADCs, and a variety of communication interfaces such as USARTs, UARTs, SPI, I2C, CAN, and SDIO. The inclusion of LCD-TFT controller, Chrom-ART accelerator, and audio PLLs makes it suitable for advanced audio and graphical applications.

The STM32F429NIH6 also supports an Ethernet MAC and a camera interface for embedded network and image processing applications. Its onboard real-time clock and true random number generator add value for secure and precise timing functionalities.

These features allow the microcontroller to cater to diverse application domains including industrial motor drives, industrial automation (inverters, PLCs, scanners), HVAC systems, home audio devices, video intercoms, and medical equipment.

STMicroelectronics delivers this microcontroller as a reliable and scalable solution with enhanced security through its memory protection unit and hardware accelerators for cryptographic functions found in STM32F439 derivatives.

Based on ARM Cortex M4 core with floating point unit and DSP instructions. Features 2048kB dual bank Flash memory and 258kB RAM including 64kB CCM data RAM. Contains 216-pin BGA package with surface mount type and operates from 1.7V to 3.6V supply.

Equipped with 14 timers, DACs, ADCs and multiple communication interfaces including USART, SPI, I2C, CAN, and SDIO. Includes LCD-TFT controller, Chrom-ART accelerator, and real-time clock for multimedia and time-critical applications.

Supports Ethernet MAC and camera interface for advanced industrial and multimedia scenarios. Operating temperature range is from -40°C to 85°C with power dissipation up to 690 mW. Ideal for motor control, industrial automation, HVAC, medical equipment, audio appliances, and embedded industrial systems.
