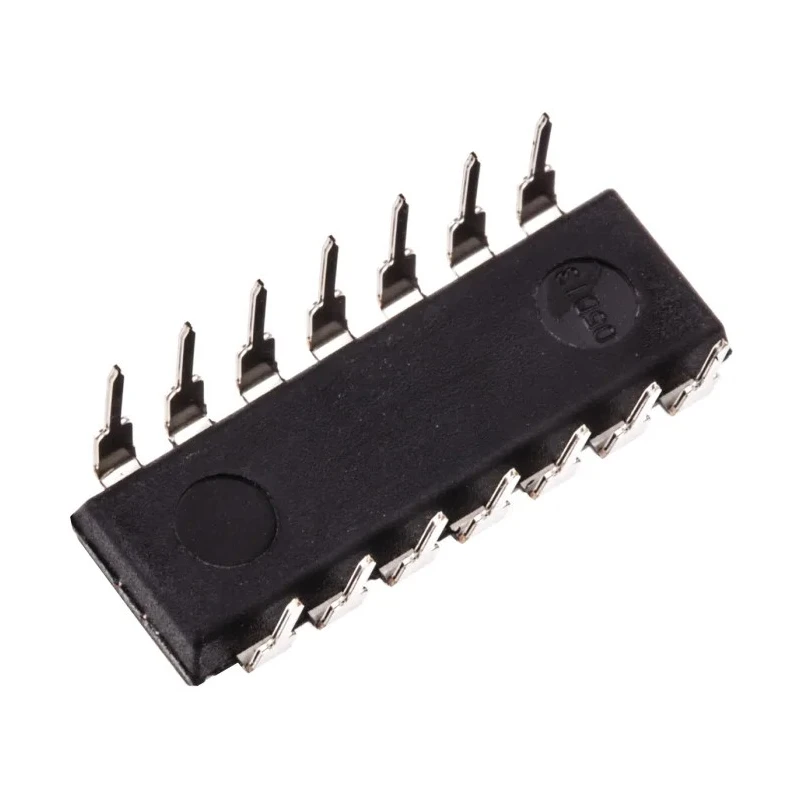

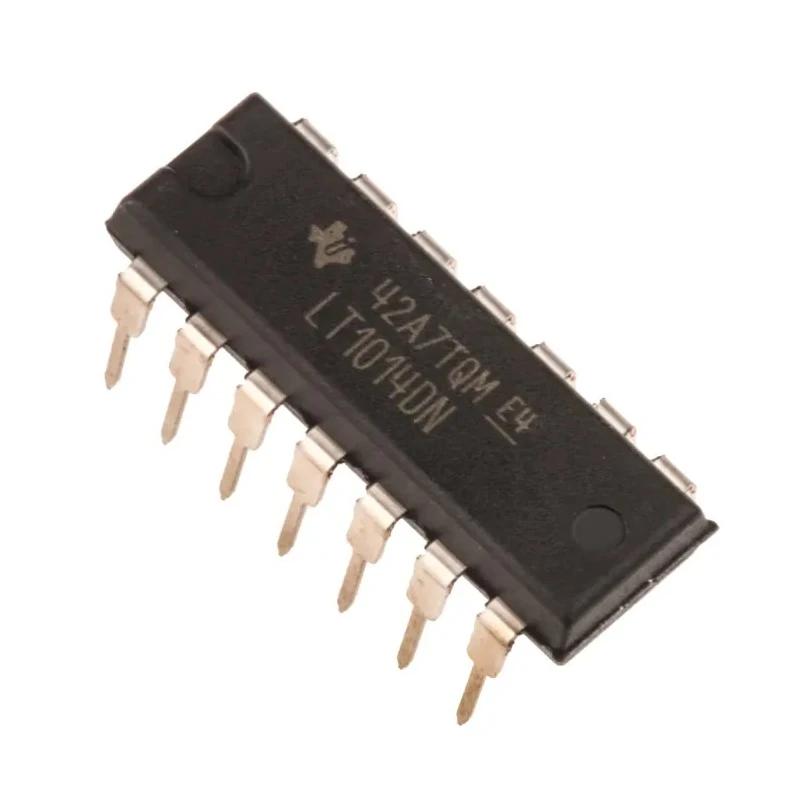

Texas Instruments Precision Operational Amplifier 1 MHz, 14-Pin PDIP LT1014DN
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | LT1014DN |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | LT101 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | 9V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | -90 nA |
| Slew Rate | 0.4V/μs |
| Input Offset Current | 1.5 nA |
Key Features
- 1 MHz gain bandwidth product ensures high speed performance.
- Low input offset voltage of 300 μV provides precision signal amplification.
- Four channels per package for versatile multi-channel applications.
- Wide supply voltage range from 9V to 22V allows flexible power configurations.
- Through-hole mounting in 14-pin PDIP package suits easy prototyping and manufacturing.
- Low input bias current at -90 nA ideal for high resistance circuit designs.
- Operating temperature range from 0°C to 70°C suitable for typical industrial environments.
- Slew rate of 0.4 V/μs supports moderate signal change rates.
Product Description
Texas Instruments LT1014DN operational amplifier is a precision device engineered to provide stable and predictable electronic signal amplification with a 1 MHz gain bandwidth, suitable for advanced electronics projects and industrial applications.
This 14-pin PDIP package device integrates four independent operational amplifiers, making it ideal for multi-channel amplification tasks demanding high accuracy and low noise. Designed for through-hole mounting, the LT1014DN operates over a wide supply voltage range from 9V to 22V, ensuring compatibility with various power supplies.
The device features a low input offset voltage of 300 μV and an input bias current of -90 nA, delivering superior precision for sensitive signal processing where high input impedance is required. Its 0.4 V/μs slew rate balances response speed with signal integrity, suitable for many control and sensor applications.
Operating reliably between 0°C and 70°C, this operational amplifier matches typical industrial temperature standards. Its compact physical size (19.3 mm length, 6.35 mm width, and 4.57 mm height) allows integration into dense circuit layouts.
1 MHz gain bandwidth for high-speed signal processing. Low input offset voltage of 300 μV for precision amplification. Four channels integrated in a single 14-pin PDIP package. Wide supply voltage range from 9 to 22 volts.
Very low input bias current minimizing loading effects. Through-hole mounting suitable for prototyping and production. Operating temperature from 0°C to 70°C ensures durability. Slew rate of 0.4 V/μs supports moderate frequency applications.
Compact size fits tight board space constraints. This product is designed for industrial, electronic component assembly, and precision measurement applications requiring dependable analog signal conditioning. Explore a wide range of semiconductor Operational Amplifiers and electronic components on EnvMart for all your advanced electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LT1014DN has a gain bandwidth product of 1 MHz, which ensures high-speed performance for signal amplification.
This model integrates four independent operational amplifiers in a single package, making it suitable for multi-channel applications.
It features a low input offset voltage of 300 μV, providing precision in signal amplification.
The LT1014DN operates reliably within a temperature range of 0°C to 70°C, suitable for typical industrial environments.
This operational amplifier can operate over a wide supply voltage range from 9V to 22V, allowing for flexible power configurations.
The input bias current for this model is -90 nA, making it ideal for high resistance circuit designs.
The slew rate of this operational amplifier is 0.4 V/μs, which supports moderate signal change rates.
It is designed for through-hole mounting in a 14-pin PDIP package, making it suitable for easy prototyping and manufacturing.
The dimensions of this model are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height.
The LT1014DN is manufactured in Mexico.
This operational amplifier is part of the LT101 series by Texas Instruments.
It is designed for industrial, electronic component assembly, and precision measurement applications requiring analog signal conditioning.
