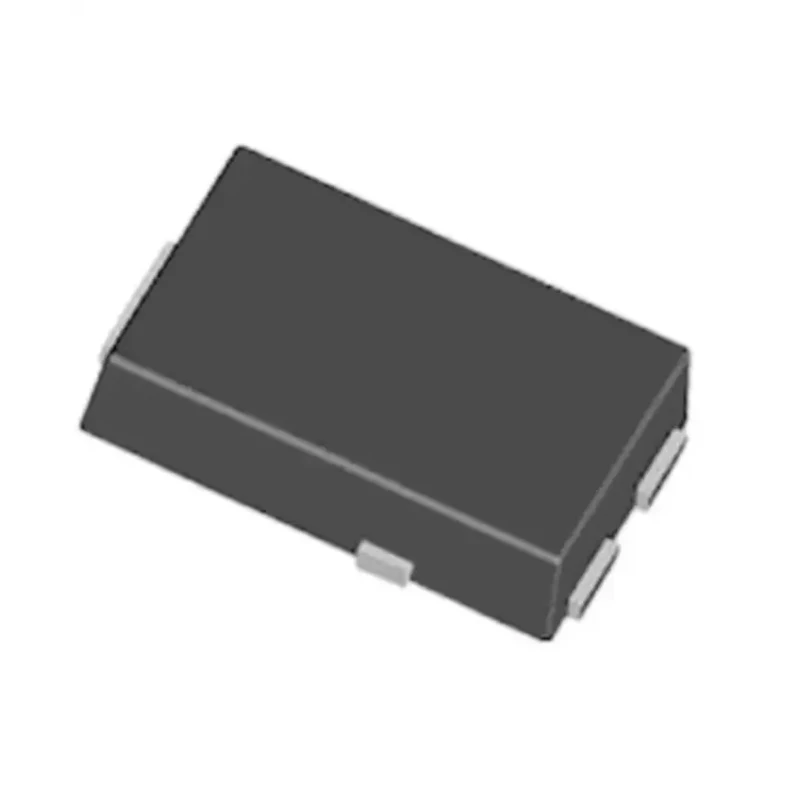

Vishay 60 V 10 A Surface Mount Schottky Diode 3-Pin TO-277 V10PM6HM3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 6.65mm |
| Model | V10PM6HM3/H |
| Width | 4.75mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 180A |
| Maximum Forward Voltage Vf | 0.6V |
Key Features
- Provides a maximum continuous forward current of 10 amperes.
- Designed with a 3-pin TO-277 package suitable for surface mounting.
- Peak reverse repetitive voltage of 60 volts ensuring voltage tolerance.
- Features low leakage current and fast switching speeds for efficiency.
- Operates safely in temperatures from -40°C to 175°C.
- Constructed as a single Schottky rectifier diode with forward voltage of 0.6 V.
- Supports peak non-repetitive forward surge current up to 180 amperes.
- Complies with RoHS standards and automotive grade AEC-Q101 certification.
Product Description
Vishay V10PM6HM3/H Schottky Diode is a high-performance surface mount semiconductor device with a 3-pin TO-277 package. It is designed to handle continuous forward currents of 10 A and peak reverse voltages up to 60 V. The device exhibits low forward voltage drop (0.6 V) and minimal leakage current, making it ideal for high-frequency inverter circuits, freewheeling applications, DC/DC converters, and polarity protection in commercial, industrial, and automotive systems.
This diode supports peak non-repetitive forward surge currents as high as 180 A and operates reliably within a temperature range of -40°C to +175°C. Its compact dimensions and automotive certification (AEC-Q101) provide robust performance while ensuring compliance with industry standards such as RoHS. Its single Schottky configuration ensures fast switching speeds and reduced power loss for energy-efficient electronic designs.
The Vishay V10PM6HM3/H diode is manufactured in China and is suitable for applications requiring efficient rectification with minimal voltage drop and high current handling capability.
Maximum continuous forward current of 10 A. 3-pin TO-277 surface mount package. Peak reverse voltage rating of 60 V. Low forward voltage drop of 0.6 V reduces losses. Wide operating temperature range from -40°C to 175°C.
High surge current capability of 180 A. Compact form factor with 6.65 mm length and 4.75 mm width. Conforms to RoHS compliance and automotive standard AEC-Q101.
This diode is ideal for use in industrial power electronics, automotive electronic controls, power supply rectification, and other semiconductor circuits requiring reliable high current and fast switching Schottky diodes. Explore more Vishay semiconductors and Schottky Diodes on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay V10PM6HM3/H Schottky diode is 10 amperes.
This diode has a peak reverse repetitive voltage rating of 60 volts.
It operates reliably within a temperature range of -40°C to +175°C.
The forward voltage drop for this model is 0.6 volts.
The Vishay V10PM6HM3/H is housed in a 3-pin TO-277 surface mount package.
This diode supports a peak non-repetitive forward surge current of up to 180 amperes.
It complies with RoHS standards and has automotive grade AEC-Q101 certification.
The dimensions of this diode are 6.65 mm in length, 4.75 mm in width, and 1.2 mm in height.
This model is a single Schottky rectifier diode.
The peak reverse current for the Vishay V10PM6HM3/H is 20 mA.
It is suitable for high-frequency inverter circuits, freewheeling applications, DC/DC converters, and polarity protection in various systems.
The Vishay V10PM6HM3/H diode is manufactured in China.
