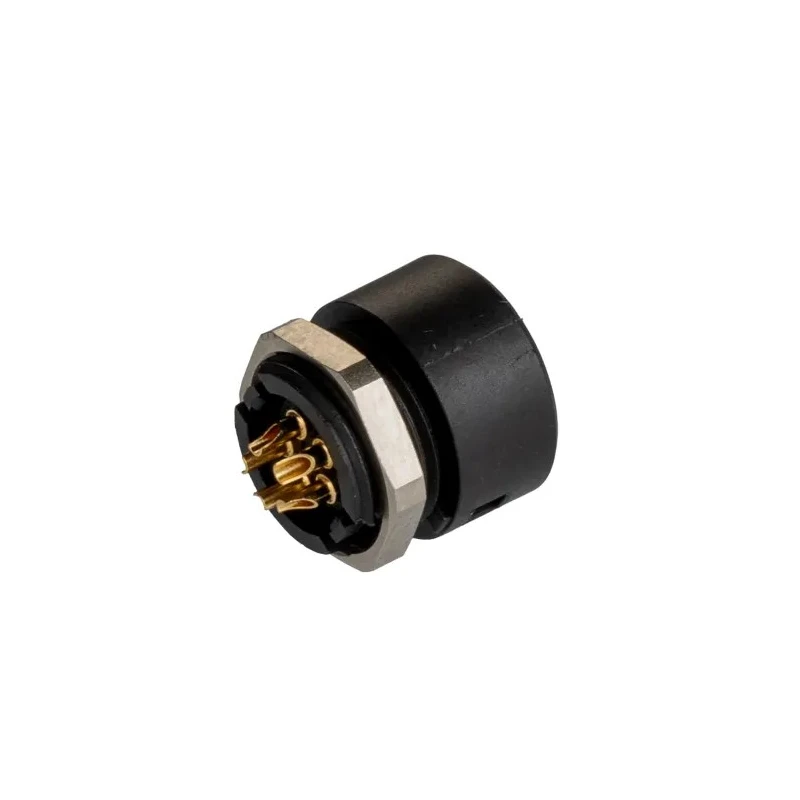

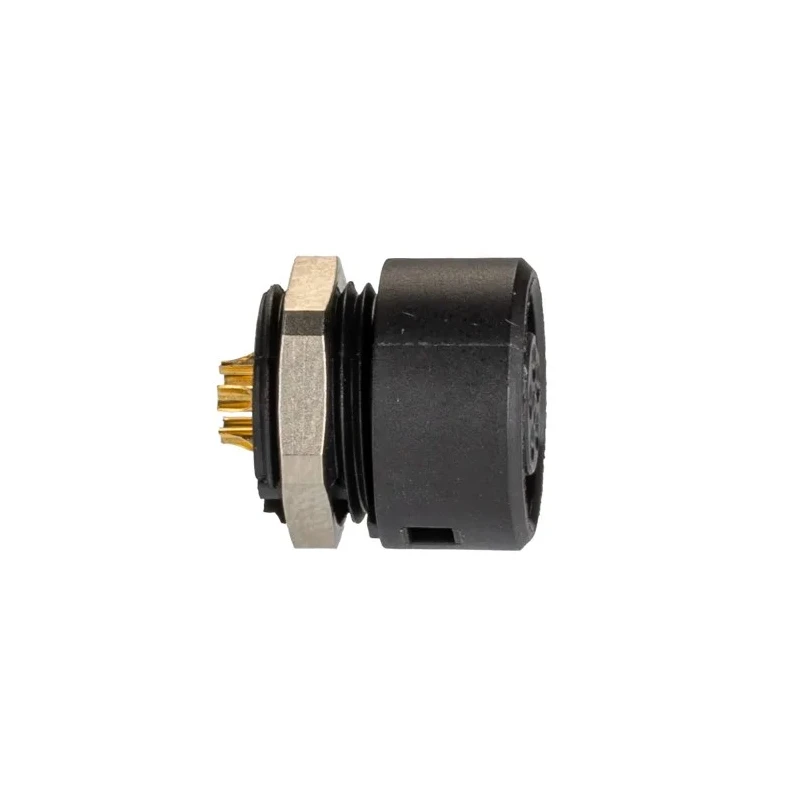

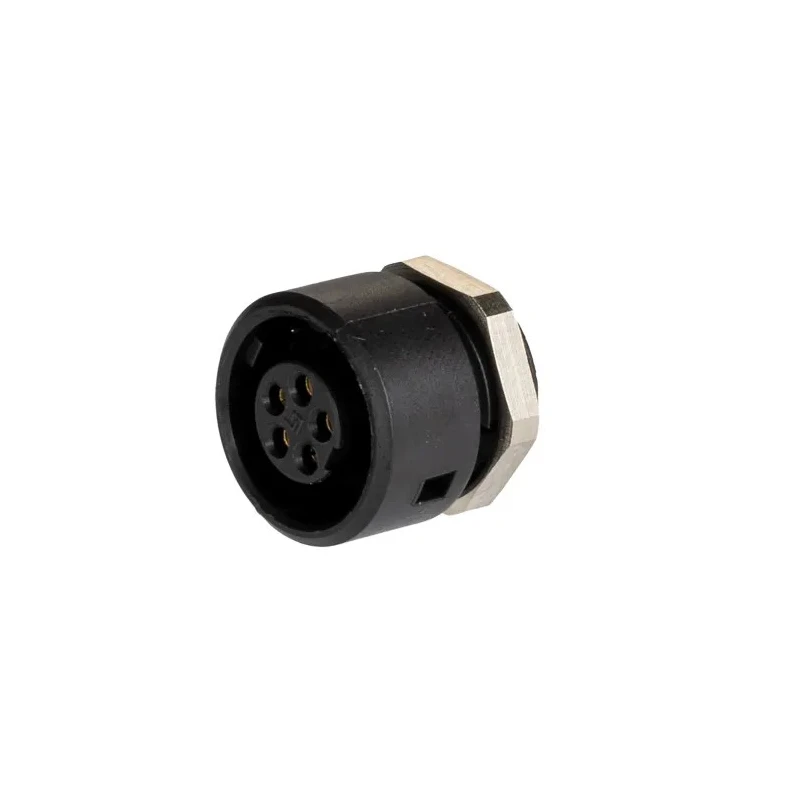

binder Circular Connector 5 Contacts Panel Mount Subminiature Socket Female IP40 710 Series 09-0998-00-05
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125V |
| Brand | binder |
| Orientation | Straight |
| Current | 3A |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Metal |
| Contact Material | Bronze |
| Series | 710 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Shell Size | 10 mm |
| Mating Type | Bayonet |
| Connector Size | Subminiature |
| Plug/Socket | Socket |
Key Features
- This panel mount circular connector features five gold-plated contacts for enhanced conductivity and corrosion resistance.
- The connector is a female socket type with solder termination for secure wiring.
- Designed with a subminiature shell size of 10 mm and a bayonet mating type ensuring secure locking and ease of installation.
- The connector's metal housing offers durability and protection, compliant with an IP40 ingress protection rating.
- Operating temperature ranges from -40°C to 85°C, suitable for harsh industrial environments.
- It features a straight orientation and strain relief via ferrule to guarantee connection stability.
- Manufactured in Germany, this connector does not include additional approvals or standards beyond robust industrial design.
Product Description
binder 09-0998-00-05 Circular Connector 5 Contacts Panel Mount Subminiature Socket Female IP40 710 Series is engineered for industrial applications requiring compact, dependable circular connectors. This subminiature connector operates at a voltage rating of 125V and a current rating of 3A, making it suitable for low to moderate power electronic components.
The five gold-plated contacts provide excellent electrical conductivity and resistance to corrosion, while the bronze contact material ensures mechanical robustness. Designed for panel mounting, this socket connector uses a solder termination method for reliable wire attachment.
The metal housing offers mechanical protection and an IP40 rating, providing resistance against solid objects larger than 1 mm, suitable for indoor industrial and manufacturing environments. The shell size measures 10 mm with a bayonet mating type that facilitates secure and quick coupling, preventing accidental disconnection.
Operating temperature ranges from -40°C to 85°C, allowing the connector to perform efficiently in harsh conditions. The straight orientation and coding lug ensure correct alignment and strain relief through a ferrule that prolongs service life.
Five gold-plated contacts ensure reliable connectivity and corrosion resistance. Subminiature 10 mm shell size is ideal for compact electronic systems. Panel mount design with bayonet locking provides secure installation.
Solder termination ensures stable and durable electrical connections. Metal housing with IP40 rating protects against solid particle ingress. Operating temperature supports a wide range of industrial environments. Manufactured in Germany with high-quality materials and construction.
This circular connector is commonly used in industrial automation, laboratory equipment, manufacturing systems, and electronic instrumentation. It is designed to meet the needs of professionals requiring durable and efficient connectors for panel-mounted applications.
Explore more connectors and components in the Electronics & Electricals category at EnvMart to find compatible and complementary products for your industrial or commercial projects.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 125V and a current rating of 3A, making it suitable for low to moderate power applications.
The connector has an IP40 ingress protection rating, which means it is resistant to solid objects larger than 1 mm, suitable for indoor industrial environments.
It operates effectively within a temperature range of -40°C to 85°C, allowing it to function in harsh industrial conditions.
This connector features five gold-plated contacts, providing excellent electrical conductivity and corrosion resistance.
It employs a solder termination method for reliable wire attachment, ensuring stable electrical connections.
The shell size of this connector is 10 mm, designed for compact electronic systems.
The connector features a metal housing, which provides mechanical protection and durability.
It uses a bayonet mating type, which facilitates secure and quick coupling to prevent accidental disconnection.
Yes, this model is specifically designed for panel mounting, making it suitable for various applications in industrial settings.
The contacts are made of bronze, which ensures mechanical robustness and reliability in connection.
It is commonly used in industrial automation, laboratory equipment, manufacturing systems, and electronic instrumentation.
This connector is manufactured in Germany, ensuring high-quality materials and construction.
