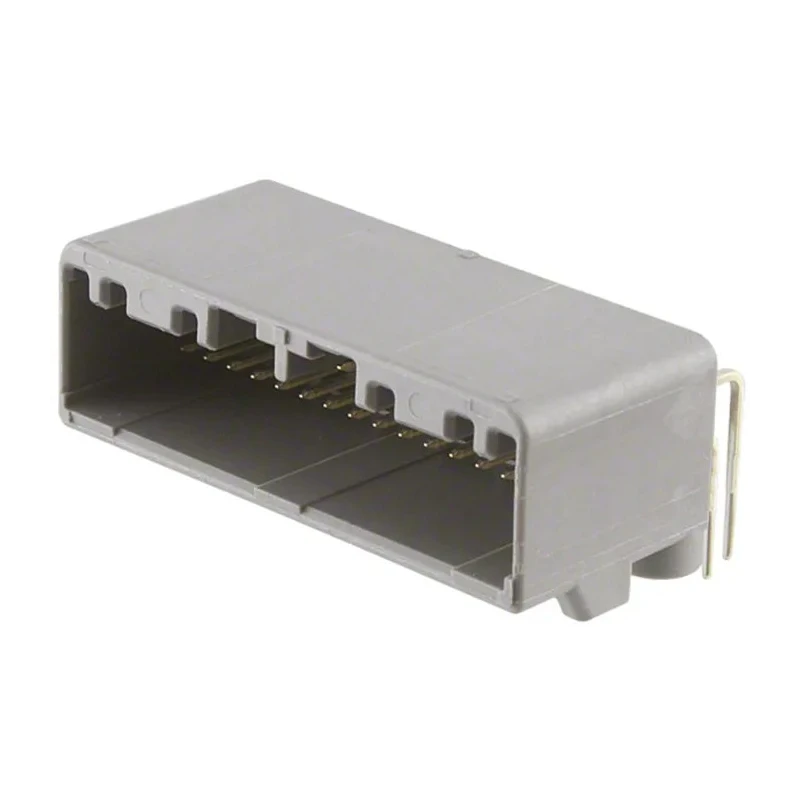

JAE MX34 Series Right Angle Through Hole PCB Header, 32 Contacts, 2.2 mm Pitch, 2 Rows, Shrouded MX34
Specifications
| Country of Origin | India |
|---|---|
| Brand | JAE |
| Orientation | Right Angle |
| Current | 3A |
| Model | MX34 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Syndiotactic Polystyrene |
| Contact Material | Brass |
| Series | MX34 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.2mm |
| Contact Plating | Tin |
| Number of Contacts | 32 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| For MX34 socket housings see typical stock numbers | 690-9852 |
Key Features
- The connector features a glass filled syndiotactic polystyrene housing for durability.
- Contacts are brass material plated with tin ensuring reliable conductivity.
- Rated for 3A current with operating temperature range from -40°C to 85°C.
- The double locking mechanism and preset-type retainer enhance connection security and workability.
- Designed to reduce mating/unmating force to 80N or less, improving installation efficiency.
- Right angle orientation supports compact PCB mounting and wire-to-board connection system.
- Termination by solder type ensures firm through-hole mounting.
- Contacts have a box-type pin header and a lock spring with bridge to protect against external force.
Product Description
JAE MX34 Series Right Angle Through Hole PCB Header MX34 is engineered for high reliability in automotive and industrial electronics. This 32-contact male connector utilizes a 2.2 mm pitch and 2-row arrangement, featuring a shrouded housing constructed from glass filled syndiotactic polystyrene for mechanical strength and thermal stability.
Rated for 3A current and capable of operating within a temperature range from -40°C to 85°C, it supports demanding environments. The brass contacts plated with tin provide excellent electrical conductivity and corrosion resistance. The connector includes a preset-type double locking mechanism and a box-type pin header delivering robust resistance to twisting and external forces.
Its right angle through hole mount design facilitates compact PCB layout and reliable wire-to-board connections. The solder termination method ensures secure attachment to printed circuit boards. The MX34 series reduces mating and unmating forces to under 80N, significantly enhancing assembly efficiency.
The lock spring features a protective bridge that safeguards contact integrity during use. This connector is ideal for automotive, industrial, and electronics manufacturing applications requiring dependable PCB interfacing solutions.
The connector housing is made of glass filled syndiotactic polystyrene ensuring durability. Contact material is brass with a tin plating for optimal conductivity and protection. Designed for a current rating of 3A and operating temperature range from -40°C to 85°C.
Double locking mechanism enhances secure mating and prevents incomplete insertion. Right angle, through-hole mounted design supports space-efficient PCB layouts. Preset retainer and lock spring protect contacts from mechanical stress and external loads.
Suitable for automotive and general industrial electronic applications. Explore more in the Electronics Components category at EnvMart for related PCB connectors and accessories.
Explore more products in our PCB Headers category.
