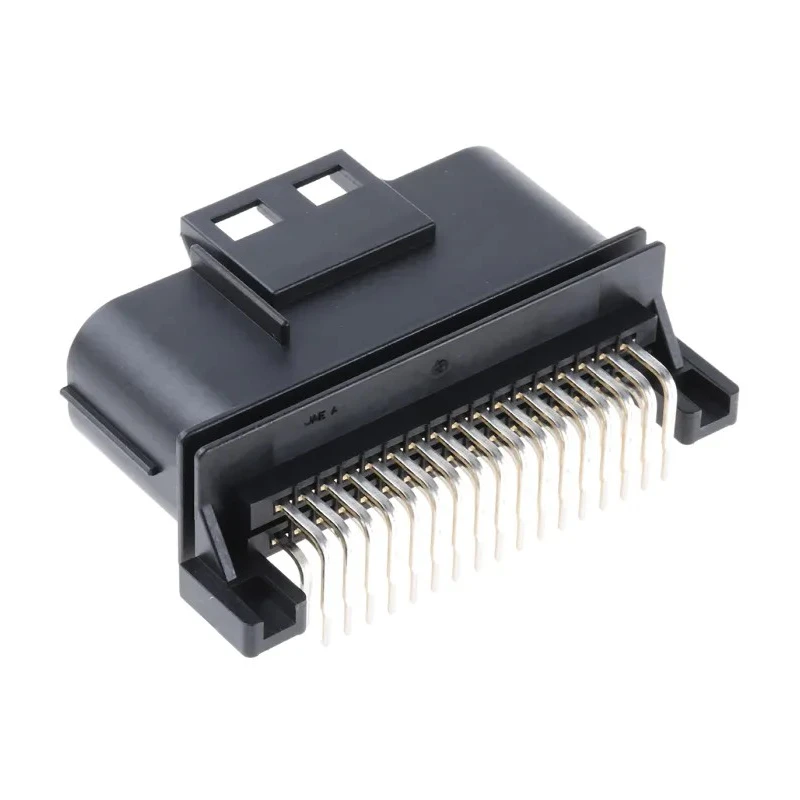

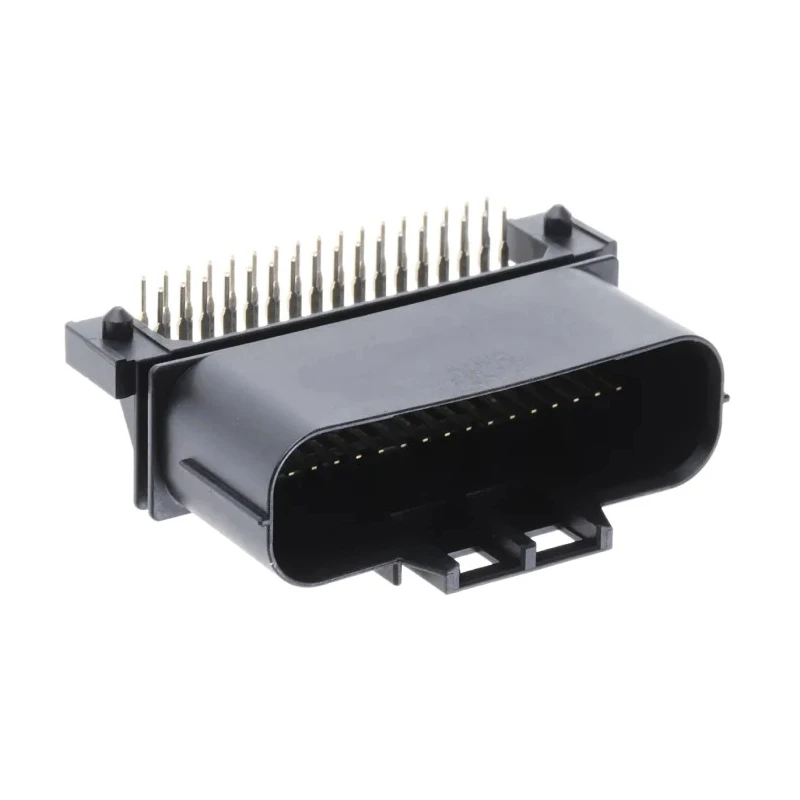

JAE Automotive Connector Male Black Through Hole 34 Way Solder Termination MX23A34NF1

JAE MX23A34NF1 Automotive Connector is a high-quality male 34-way connector designed for automotive and industrial applications requiring robust waterproof wire-to-board connections. This connector features a solder termination with through-hole mount style, ensuring reliable mechanical and electrical performance on printed circuit boards.

Its housing is made of fibreglass reinforced polybutylene terephthalate, providing excellent chemical and thermal resistance. The copper alloy contacts are plated with tin for enhanced conductivity and protection against corrosion. The two-row configuration with 34 contacts accommodates complex circuit needs while maintaining a low-profile form factor with a height of just 16.4 mm.

The MX23A series connectors include a silicon rubber sealing ring in the mating area, delivering waterproof protection when mated with the corresponding MX23A waterproof socket. This makes the connector ideal for automotive, motorcycle, and other waterproof equipment applications requiring reliable sealing and durability.

Designed for operation in temperatures ranging from -40°C to 125°C, the connector withstands demanding environments typically encountered in transportation and industrial sectors. Mounting bosses facilitate accurate positioning on the PCB during assembly.

This connector supports 3A current capacity and is compliant with RoHS standards, ensuring environmentally responsible manufacture and use. Its compact dimensions of 58 mm width, 33.3 mm depth, and 16.4 mm height suit space-constrained PCBs in modern electronic systems.

The connector provides a waterproof and low-profile solution for automotive electrical connections. Solder termination and through-hole mount type enable solid PCB integration. Contact plating with tin and copper alloy materials promotes electrical reliability.

Wide temperature operating range accommodates harsh industrial environments. Applications include automotive, motorcycle, and waterproof equipment.

JAE’s MX23A34NF1 is a trusted choice for engineers designing circuits where waterproofing, space efficiency, and durability are critical. Explore further Automotive Connectors and components on EnvMart for your projects requiring cutting-edge connector technology.
