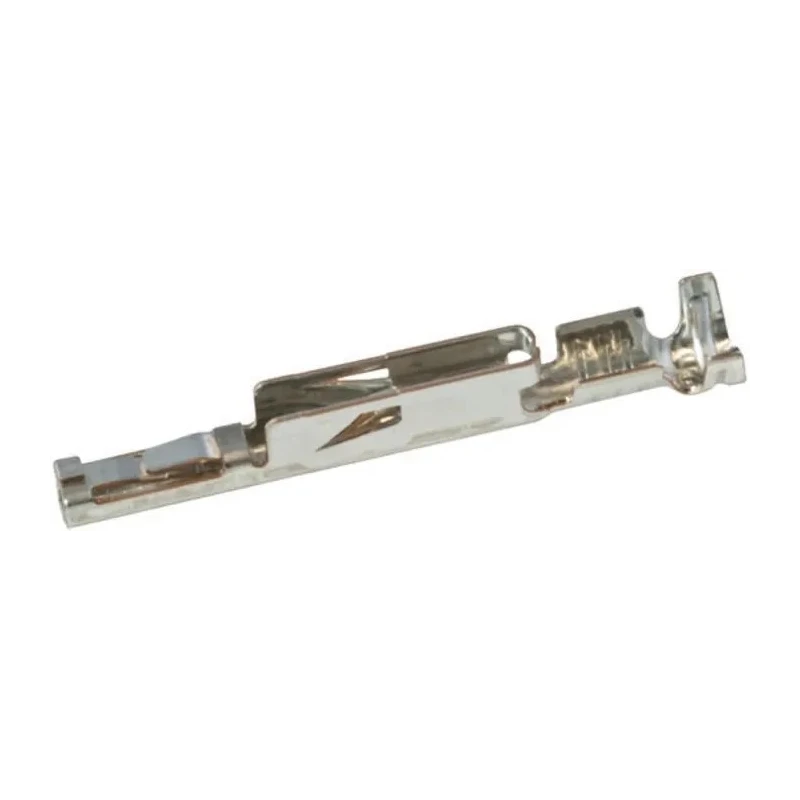

JAE Automotive Connector Terminal Socket Crimp IL-AG5-C1-7500, 3A Current, Tin Plating, 2.4mm Diameter

JAE IL-AG5-C1-7500 is a female socket crimp automotive connector terminal from the IL-AG5 series, designed specifically for automotive electrical systems. It features a 3A current rating with copper alloy contacts plated in tin to ensure reliable electrical performance and corrosion resistance.

The socket crimp termination provides easy and secure installation suitable for automotive instrument panel applications. With a contact diameter of 2.4mm, this connector offers excellent mating assurance due to its mechanical lock that prevents dislodging and mismating. The connector is designed to operate within a broad temperature range from -40°C to 85°C, making it suitable for varying automotive environments.

Its robust construction with advanced double lock mechanisms enhances contact retention, ensuring durability and safety in demanding automotive conditions. The IL-AG5 series connectors incorporate unique housing configurations for polarity protection, reducing assembly errors.

This product is ideal for electrical harness assemblies in vehicles, providing dependable connectivity for instruments and controls. The crimp-type termination aids in improving production efficiency and maintaining consistent quality in manufacturing processes.

The connector supports a current rating of 3A suitable for automotive panel use. Constructed with copper alloy contact material ensuring durability and conductivity. Tin plating on contacts provides corrosion resistance and reliable contact performance.

Mechanical lock design assures secure mating and prevents dislodging of contacts. Operates reliably within a temperature range of -40°C to 85°C. Socket type crimp termination simplifies installation and provides high reliability.

Contact diameter measures 2.4mm, compatible with IL-AG5 series connectors. Unique housing configuration helps prevent mismating of connectors. Double lock mechanism offers enhanced contact retention security. Ideal for use in automotive instrument panel applications requiring high-quality connectors.

EnvMart offers this quality connector suitable for industrial, automotive manufacturing, electronics assembly, and vehicle maintenance sectors. Explore related high-performance automotive connectors and achieve reliable electrical connections for your projects.
