Nexperia 100 V 8.4 A Surface Mount Schottky Diode 3-Pin CFP15 PMEG100V060ELPDZ

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 100 V 8.4 A Surface Mount Schottky Diode 3-Pin CFP15 PMEG100V060ELPDZ

Name: Nexperia 100 V 8.4 A Surface Mount Schottky Diode 3-Pin CFP15 PMEG100V060ELPDZ
Brand: Nexperia
SKU: 215028
Price: 0.45 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.78mm
Length	5.8mm
Model	PMEG100V060ELPDZ
Width	4.3mm
Mount Type	Surface
Maximum Operating Temperature	175°C
Package Type	CFP15
Minimum Operating Temperature	-55°C
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	8.4A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Common Cathode
Rectifier Type	Schottky
Peak Reverse Current Ir	2μA
Peak Non-Repetitive Forward Surge Current Ifsm	210A
Maximum Forward Voltage Vf	840mV
Peak Reverse Recovery Time trr	37ns
Average forward current	IF(AV) ≤ 6 A
Reverse voltage	VR ≤ 100 V

Key Features

This diode features a maximum continuous forward current of 8.4 A.
It has a peak reverse repetitive voltage rating of 100 V for high reliability.
The package type is CFP15 with a compact 3-pin design.
Operates reliably in temperatures ranging from -55°C to 175°C.
The forward voltage is low at 840 mV to maximize efficiency.
It supports a peak non-repetitive forward surge current of 210 A.
The device is qualified to AEC-Q101 automotive standards.
Suitable for automotive LED lighting, DC-to-DC converters, and reverse polarity protection.

Product Description

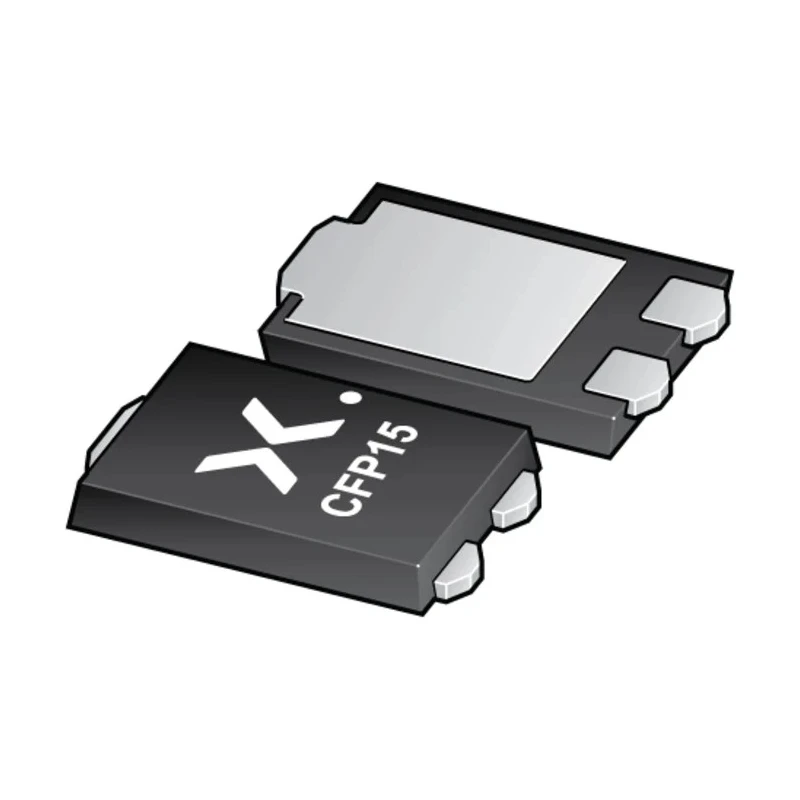

Nexperia PMEG100V060ELPDZ is a high-efficiency Schottky diode designed for surface mounting in CFP15 (SOT1289) plastic package, providing a compact and reliable solution for power electronics applications. It supports a maximum continuous forward current of 8.4 A and a peak reverse voltage of 100 V, making it ideal for low voltage rectification in automotive and industrial circuits.

The diode features a low forward voltage drop of 840 mV, which contributes to improved energy efficiency and reduced power loss. Its high surge current tolerance of 210 A ensures robust transient handling capability for demanding electrical environments.

Constructed with advanced clip-bonding technology and heat sink design, it achieves high power capability and thermal performance with a maximum junction temperature of 175 °C. The diode's compact dimensions of 5.8 mm length, 4.3 mm width, and 0.78 mm height enable space-saving PCB layouts.

This device is AEC-Q101 qualified, confirming its compliance with the stringent automotive quality standards required for LED lighting, switch mode power supplies, and DC-to-DC converters. Its low leakage current and reverse polarity protection expand its versatility in automotive sensor and power management systems.

Maximum continuous forward current: 8.4 A. Peak reverse voltage: 100 V. Low forward voltage drop of 840 mV. AEC-Q101 automotive standard qualified. Robust peak forward surge current of 210 A. Compact 3-pin CFP15 surface mount package.

Wide operating temperature range from -55°C to 175°C. Applications include automotive LED lighting, DC-to-DC converters, and reverse polarity protection.

This Schottky diode presents a reliable, efficient solution for industrial, automotive, and power conversion applications. EnvMart offers this component for engineers and designers focusing on high-performance semiconductor devices.

Explore more products in our Schottky Diodes & Rectifiers category.
