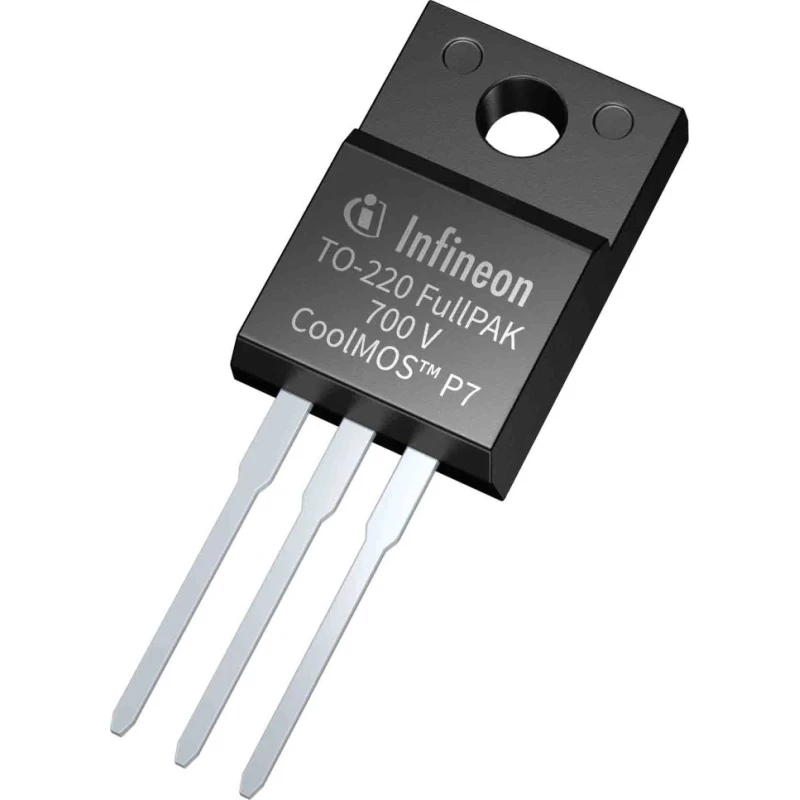

Infineon 700V CoolMOS P7 N-Channel MOSFET 700 V, 10 A, 3-Pin TO-220 IPA70R450P7SXKSA1

Name: Infineon 700V CoolMOS P7 N-Channel MOSFET 700 V, 10 A, 3-Pin TO-220 IPA70R450P7SXKSA1
Brand: Infineon
SKU: 170337
Price: 0.76 USD
Availability: InStock



Category MOSFET Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Model	IPA70R450P7SXKSA1
Mount Type	Through Hole
Series	700V CoolMOS P7
Package Type	TO-220
Pin Count	3
Channel Type	N
Maximum Continuous Drain Current Id	10A
Maximum Drain Source Voltage Vds	700V
Maximum Drain Source Resistance Rds	450mΩ
Channel Mode	P

Key Features

High-voltage 700 V N-channel MOSFET suitable for power applications.
Maximum continuous drain current of 10 A ensures robust performance.
Low drain-source resistance of 450 milliohms for efficient power handling.
Through-hole mount with standard TO-220 package facilitates easy PCB integration.
Incorporates advanced CoolMOS P7 technology for improved switching and thermal behavior.
Integrated ESD protection diode enhances device reliability.
Optimized for cost-sensitive consumer electronics like chargers, adapters, lighting, and TVs.
P channel mode design offering reliable switching performance.

Product Description

The Infineon IPA70R450P7SXKSA1 700V CoolMOS P7 series N-channel MOSFET is designed for high voltage power applications requiring efficient switching and thermal management. Featuring a maximum drain-source voltage of 700 V and a continuous drain current rating of 10 A, this device is housed in a 3-pin TO-220 package ideal for through-hole mounting in various industrial and consumer electronics contexts.

Employing Infineon's pioneering superjunction (SJ) technology, the CoolMOS P7 series delivers excellent thermal behavior and low switching losses, making it suitable for applications such as chargers, adapters, lighting systems, and televisions. The MOSFET integrates an internal ESD protection diode to enhance device robustness against transient voltage spikes.

This MOSFET’s low drain-source resistance of 450 milliohms enables efficient power conversion with reduced heat dissipation. Its package and mounting style allow straightforward assembly on printed circuit boards, facilitating industrial and commercial manufacturing processes.

Key features of this device include high voltage capability, optimized power efficiency, and compact form factor in the industry-standard TO-220 package. It is a reliable component for power management in consumer and light industrial electronic equipment.

High voltage rating at 700 V and continuous drain current of 10 A. CoolMOS P7 technology ensuring low switching losses and enhanced thermal response. Integrated ESD protection for device durability. Low Rds(on) reduces conduction losses and heat generation.

Through-hole TO-220 package supports easy PCB mounting. Reliable performance for consumer electronics and industrial power circuits. Optimized for cost-sensitive applications without compromising quality.

This product is intended for industrial, consumer electronic manufacturing, and power converter applications. Explore other semiconductor and MOSFET solutions at EnvMart to find components suited to a wide range of power management and switching needs.
