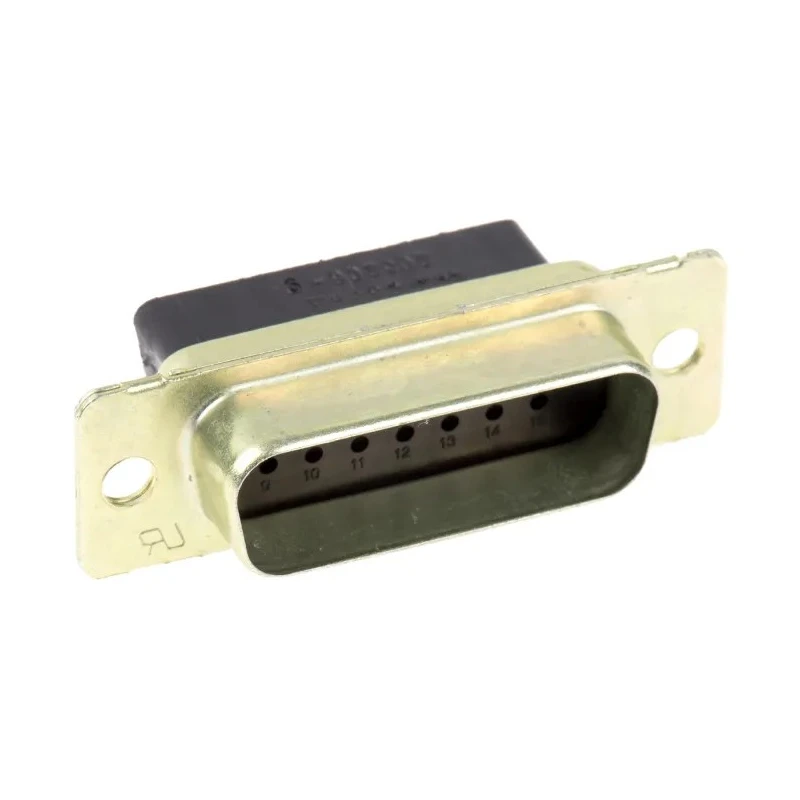

TE Connectivity AMPLIMITE HDP-20 15 Way Straight Cable D-Sub Connector Male 250V Steel Housing 205206-9
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 205206-9 |
| Mount Type | Cable |
| Housing Material | Steel |
| Series | AMPLIMITE HDP-20 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Gender | Male |
| D-Sub Shell Size | DS-2 |
Key Features
- The connector features 15 contacts arranged in a DS-2 shell size for versatile cabling solutions.
- Constructed with a durable steel housing for robust mechanical performance.
- Supports voltages up to 250V with a temperature range from -55°C to 105°C ensuring reliable operation under extreme conditions.
- Termination type is crimp with male contacts providing secure and efficient assembly.
- The high density design offers approximately 65% more contact density compared to standard HD-20 connectors.
- The black 94V0 thermoplastic insert is flame retardant enhancing safety in electrical installations.
- Snug crimp snap-in contacts allow loading of only necessary contacts, saving time and cost.
- Suitable for use in communications, data interfaces, and industrial applications requiring space saving connectors.
Product Description
TE Connectivity 205206-9 AMPLIMITE HDP-20 15 Way Straight Cable D-Sub Connector Male is engineered for industrial and electronic applications requiring compact and high density connections. This connector type is characterized by its D-shaped metal shield providing mechanical protection and ensuring reliable mating alignment.
This series connectors deliver approximately 65% higher contact density than traditional HD-20 connectors, optimizing space without compromising signal integrity. The shell is manufactured from tin-plated steel with a black 94V0-rated thermoplastic insert that provides flame retardant properties.
Designed for cable-mount applications, this connector features a straight orientation with crimp termination and male contacts, facilitating secure and durable electrical interfaces. Operating voltage is rated up to 250 volts with an operating temperature range from -55°C to 105°C, making it suitable for harsh environments and industrial setups.
The AMPLIMITE HDP-20 connector is widely used in communications and data transmission systems where space-saving and high reliability connectors are required. The crimp snap-in contact design allows for loading only the required contacts, improving assembly efficiency and reducing waste.
The product offers various shell sizes providing options for 9, 15, 25, 37, and 50 contact positions. Offers lower cost commercial alternatives to military-approved series with high performance and precision-formed contacts.
Accessory options include screw retainers, screw-locks, locking posts, and latching blocks to customize assembly. Applications span industrial automation, communication interfaces, data networking, and electronic equipment manufacturing.
Set contains a single 15-way male connector with straight cable mount design suitable for high density cabling needs. Explore additional TE Connectivity AMPLIMITE connectors and accessories in the EnvMart Electronics & Electricals Connectors category for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports voltages up to 250V, making it suitable for various electrical applications.
It operates within a temperature range of -55°C to 105°C, ensuring reliable performance in extreme conditions.
This model features 15 contacts arranged in a DS-2 shell size, providing high-density cabling solutions.
It utilizes crimp termination with male contacts, allowing for secure and efficient assembly.
The housing is made of steel, and it includes a black 94V0-rated thermoplastic insert that is flame retardant.
It is suitable for communications, data interfaces, and industrial applications that require space-saving connectors.
This connector has a D-Sub shell size of DS-2, which is designed for compact and high-density connections.
Yes, accessory options include screw retainers, screw-locks, locking posts, and latching blocks for customizable assembly.
The high-density design offers approximately 65% more contact density compared to standard HD-20 connectors, optimizing space without compromising signal integrity.
The connector features a straight orientation, suitable for cable-mount applications.
The connector is manufactured in India, ensuring compliance with local manufacturing standards.
This model has a male connector gender, designed for secure mating with compatible female connectors.
