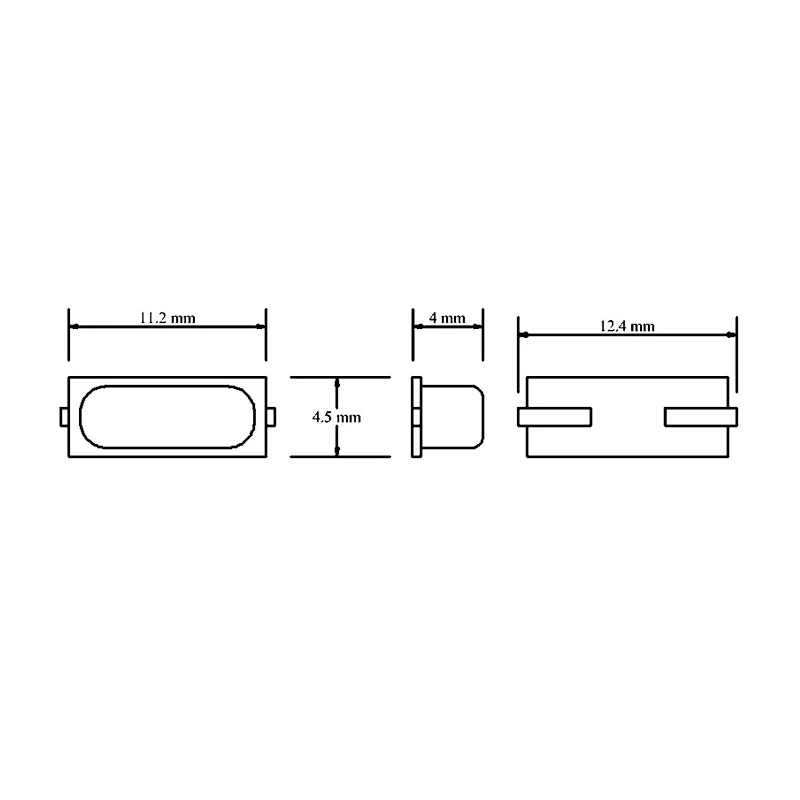

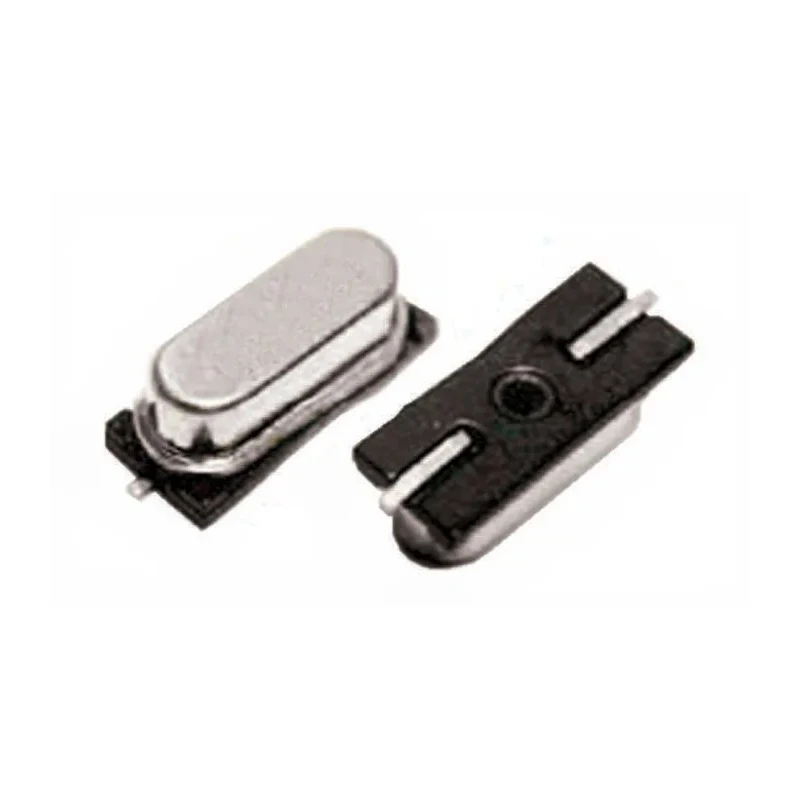

Abracon 3.6864 MHz Crystal ±30 ppm HC-49 Surface Mount 2-Pin 11.2 mm x 4.5 mm x 4 mm M49-3.6864-18-30/50/4085
Specifications
| Country of Origin | China |
|---|---|
| Brand | Abracon |
| Height | 4mm |
| Length | 11.2mm |
| Model | M49-3.6864-18-30/50/4085 |
| Packaging | Tape & Reel |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | M-49 |
| Maximum Operating Temperature | 85°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 3.6864MHz |
| Load Capacitance | 18pF |
| Series Resistance | 120Ω |
| Abracon 3.6864MHz Crystal ±20ppm HC-49-US SMD 2-Pin 11.5 x 4.7 x 4.2mmBrand | Abracon |
Key Features
- Operates at standard frequency of 3.6864 MHz with high stability.
- Surface mount HC-49 package with 2 pins for easy PCB integration.
- Compact dimensions measuring 11.2 mm length, 4.5 mm width, and 4 mm height.
- Series resistance of 120Ω ensuring reliable signal quality.
- Operating temperature range from -40°C to +85°C suitable for industrial environments.
- Compliant with RoHS standards ensuring environmental safety.
- Tape and reel packaging supports automated assembly processes.
Product Description
MERCURY M49-3.6864-18-30/50/4085 Crystal Unit is a precision 3.6864 MHz oscillator designed for surface mount applications, packaged in an HC-49 metal can with 2 pins. This crystal offers high frequency accuracy with a tolerance of ±30 ppm and stability of ±50 ppm, making it ideal for industrial electronics applications requiring reliable timing signals.
Size specifications are 11.2 mm length, 4.5 mm width, and 4 mm height, enabling compact PCB layouts. With a load capacitance of 18pF and series resistance of 120Ω, it provides stable oscillation with low signal loss.
This crystal unit is rated for operation between -40°C and 85°C, suitable for harsh environments encountered in industrial, telecommunications, and automotive electronic systems. It complies with RoHS directives, assuring no hazardous substances are present.
The M-49 series crystal is designed for robust performance and longer operational life. Its tape and reel packaging supports automated assembly processes, improving manufacturing efficiency.
Operates at standard frequency of 3.6864 MHz with ±30 ppm tolerance. Surface mount HC-49 metal can package with 2 pins for PCB integration. Compact dimensions: 11.2 x 4.5 x 4 mm (L x W x H). Load capacitance of 18pF and series resistance of 120Ω for precise oscillation.
Operating temperature range from -40°C to +85°C meeting industrial standard. RoHS compliant for environmental safety. Packaged in tape and reel format for automated production.
This crystal unit is suitable for electronics industries including telecommunications, industrial controls, measurement instruments, and automotive applications requiring precise frequency control.
Explore more precision Crystal Units and oscillators in EnvMart's Electronics Components category for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 3.6864 MHz.
It operates within a temperature range of -40°C to +85°C, making it suitable for industrial environments.
The dimensions of the HC-49 package are 11.2 mm in length, 4.5 mm in width, and 4 mm in height.
The series resistance of this crystal unit is 120Ω, which helps ensure reliable signal quality.
The load capacitance for this model is 18pF.
It is packaged in tape and reel format, which supports automated assembly processes.
This crystal unit is compliant with RoHS standards, ensuring it contains no hazardous substances.
This model uses a surface mount type for easy PCB integration.
It is suitable for applications in telecommunications, industrial controls, measurement instruments, and automotive electronics requiring precise frequency control.
The frequency tolerance of this crystal unit is ±30 ppm, providing high frequency accuracy.
The country of origin for this crystal unit is China.
This crystal unit belongs to the M-49 series.
