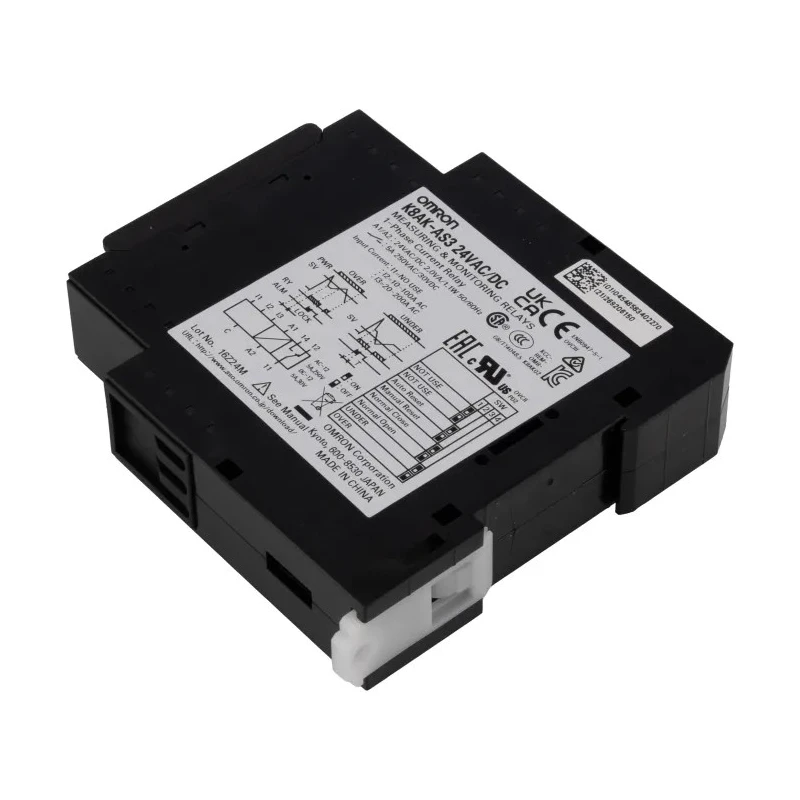

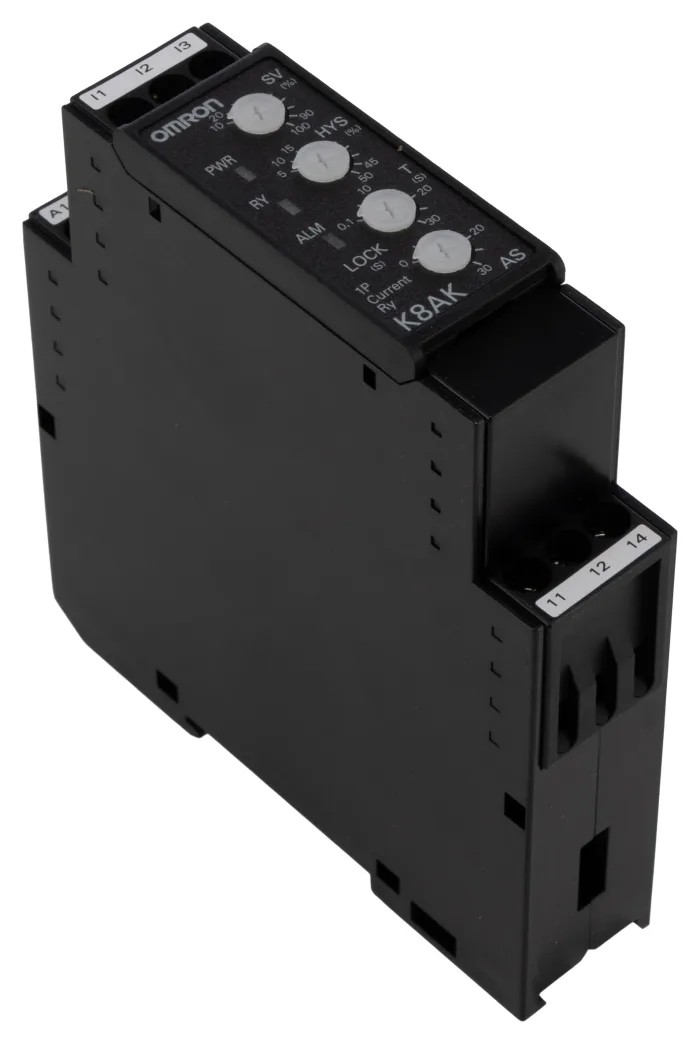

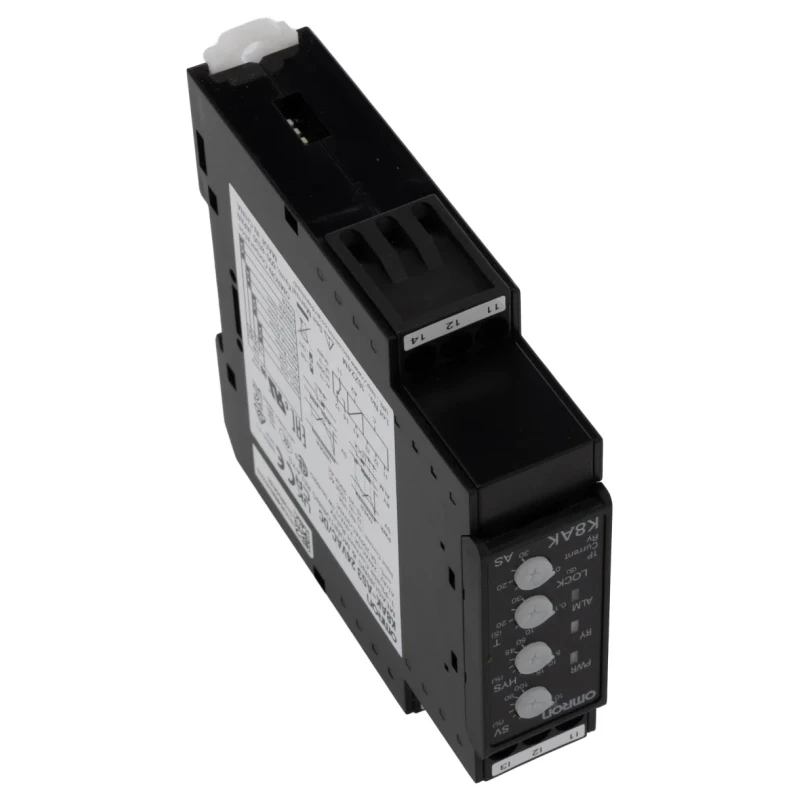

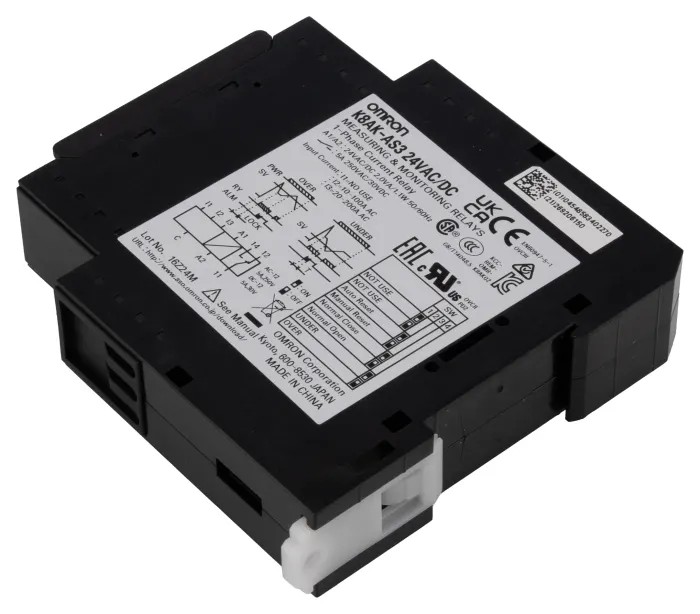

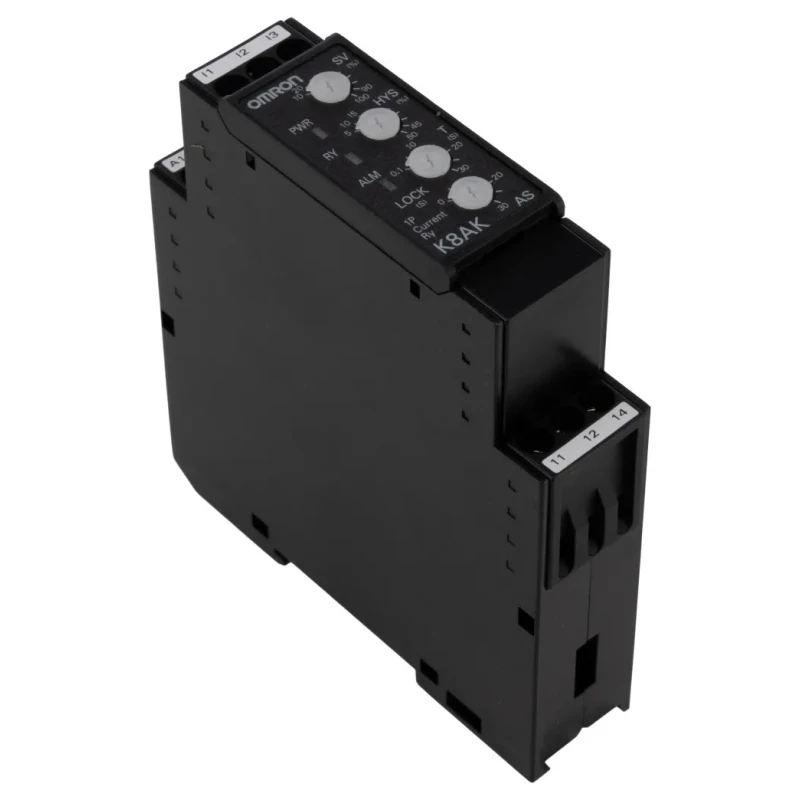

Omron Single-Phase Monitoring Relay, SPDT, DIN Rail Mount, 10A to 200A, 24 V AC/DC K8AK-AS3 24VAC/DC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 90mm |
| Length | 100mm |
| Model | K8AK-AS3 24VAC/DC |
| IP Rating | IP20 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | K8AK-AS |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Standards/Approvals | CCC, CSA, CE |
| Supply DC Voltage | 24 V dc |
| Supply AC Voltage | 24V ac |
| Minimum Current Sensed | 10A |
| Maximum Current Sensed | 200A |
| Current Sensitivity | Undercurrent, Overcurrent |
Key Features
- Suitable for single-phase electrical systems with flexible 24 V AC or DC supply options.
- Compact DIN rail mounting design with narrow 22.5mm width saves panel space.
- Detects undercurrent and overcurrent with a broad sensing range from 10A to 200A.
- Equipped with screw terminals for robust and vibration-resistant wiring connections.
- Rated for operation between -20°C and 60°C, ideal for varied ambient industrial environments.
- Single-pole double-throw (SPDT) contact provides versatile switching functions.
- Protection rating IP20 suitable for solid particle ingress but not water.
- Complies with CCC, CSA, and CE standards ensuring international safety and performance approvals.
Product Description
The Omron K8AK-AS3 24VAC/DC Monitoring Relay offers precise current supervision for single-phase industrial and automation electrical applications. Engineered for DIN rail mounting, it measures currents ranging from 10A to 200A and operates reliably using either 24 V AC or DC power supply. This monitoring relay integrates undercurrent and overcurrent detection functionality, vital for control and protection tasks.
With a narrow 22.5 mm profile, the device saves considerable panel space while its screw terminal connections ensure secure wiring resistant to vibration and mechanical stress. Rated IP20, it protects against solid foreign object ingress but is not water resistant. Operating temperature range extends from -20°C to 60°C, matching typical industrial and commercial environments.
This relay employs a single pole double throw (SPDT) contact configuration for versatile switching applications, fitting seamlessly into existing control circuits. It is manufactured to comply with CCC, CSA, and CE certifications, facilitating deployment in global projects.
Common use cases include monitoring motor loads to detect stalled or light load conditions, protecting pumps by detecting abnormal flow currents, and integration in conveyor control systems for signalling irregular current draw. It is also suitable for preventative maintenance schemes by monitoring load profiles to prevent unexpected failures.
The compact form factor and DIN rail mounting enable rapid installation and removal within control panels. Screw terminal connectors accommodate reliable wiring under industrial vibration and mechanical conditions. Overall, the Omron K8AK-AS3 24VAC/DC Monitoring Relay delivers dependable electrical current supervision in a wide array of industrial and commercial automation applications.
Suitable for single-phase electrical systems with flexible 24 V AC or DC supply options. Compact DIN rail mounting design with narrow 22.5mm width saves panel space. Detects undercurrent and overcurrent with a broad sensing range from 10A to 200A.
Equipped with screw terminals for robust and vibration-resistant wiring connections. Rated for operation between -20°C and 60°C, ideal for varied ambient industrial environments. Single-pole double-throw (SPDT) contact provides versatile switching functions.
Protection rating IP20 suitable for solid particle ingress but not water. Complies with CCC, CSA, and CE standards ensuring international safety and performance approvals. Widely used in motor load monitoring, pump protection circuits, conveyor control, and preventative maintenance systems.
Explore our extensive offerings in Relays & Contactors and Monitoring Relays for industrial automation needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can sense currents ranging from 10A to 200A, allowing for flexible monitoring of various electrical loads.
It operates on a flexible supply of either 24 V AC or 24 V DC, making it suitable for a variety of applications.
This unit is designed for DIN rail mounting, which facilitates easy installation and removal in control panels.
The relay has an IP20 rating, which protects against solid particle ingress but does not provide water resistance.
It has a width of 22.5mm, a height of 90mm, and a length of 100mm, making it compact for panel installations.
The operating temperature range is from -20°C to 60°C, suitable for various industrial environments.
It features a single-pole double-throw (SPDT) contact configuration, providing versatile switching functions.
This relay complies with CCC, CSA, and CE standards, ensuring it meets international safety and performance requirements.
It is equipped with screw terminals, which provide robust and vibration-resistant wiring connections.
It is commonly used for monitoring motor loads, protecting pumps, and in conveyor control systems for current draw signaling.
The relay belongs to the K8AK-AS series, which is designed for current supervision in industrial applications.
The relay features undercurrent and overcurrent detection, which are vital for control and protection tasks in electrical systems.
