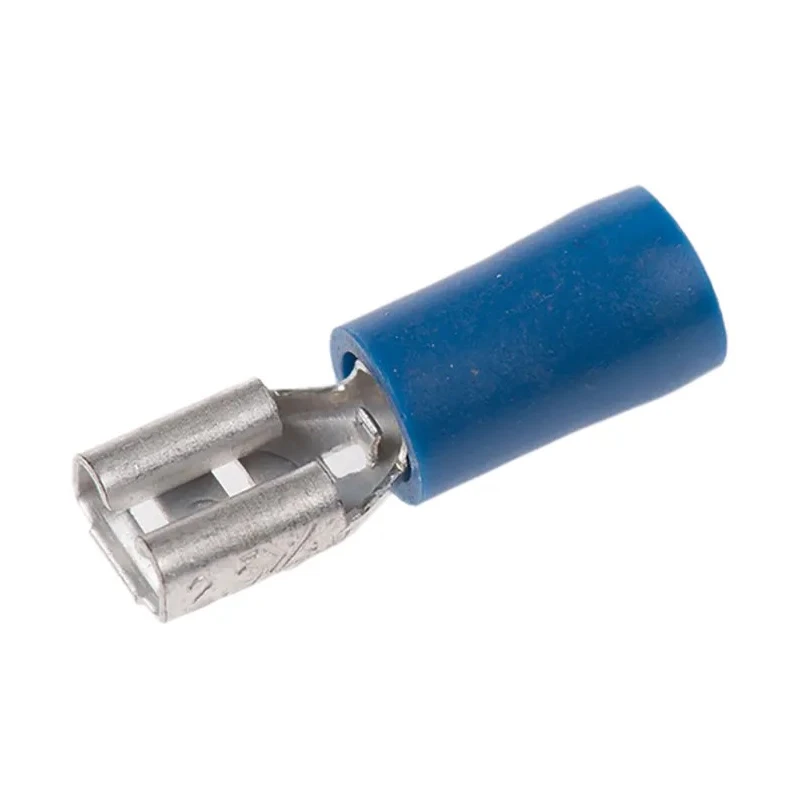

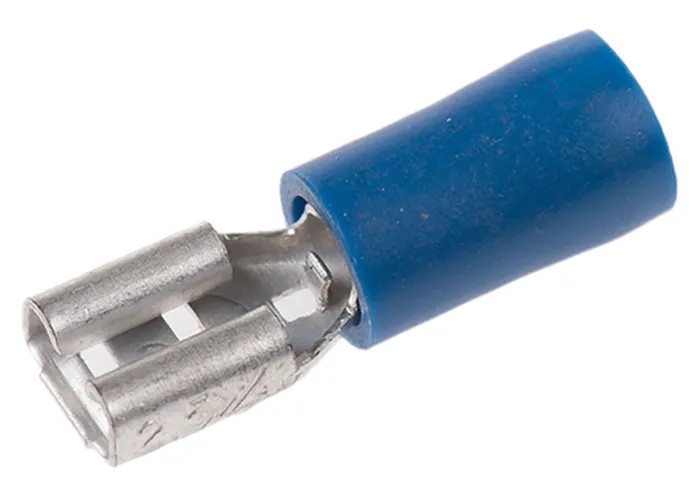

RS PRO Blue Insulated Female Spade Connector Crimp 4.8 x 0.5 mm Tab Size 16 AWG to 14 AWG 534-733
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Blue |
| Orientation | Straight |
| Model | 534-733 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 19mm |
| Contact Material | Brass |
| Termination Type | Crimp |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Tab Width | 4.8mm |
| Tab Thickness | 0.5mm |
| Tab Size | 4.8 x 0.5 mm |
| CRIMP CONN RECPT 0.187Brand | NEUTRAL |
Key Features
- Provides a fast and secure connection with a double crimp design incorporating an internal copper sleeve.
- Insulated with blue vinyl for safe handling and identification matching wire size.
- Constructed from tin-plated brass for corrosion resistance and excellent conductivity.
- Designed with a straight orientation and 4.8 mm tab width for compatibility with male spade connectors.
- Suitable for industrial, automotive, communication, HVAC, and domestic appliances applications.
- 19 mm overall length ensuring compact and reliable connections in confined spaces.
- Plastic insulation protects against electric shock and environmental contaminants.
Product Description
RS PRO 534-733 Blue Insulated Female Spade Connector is a high-quality crimp terminal designed to provide a fast and reliable electrical interconnection. It supports wire sizes from 16 AWG to 14 AWG with its 4.8 x 0.5 mm tab size and features a double crimp barrel with an internal copper sleeve for enhanced strength and vibration resistance.
The connector body is made from brass with tin plating to prevent corrosion while ensuring superior electrical conductivity. Its vinyl insulation in blue color enhances safety by offering protection against electric shock and contamination from dirt, grease, and liquids. The blue insulation also enables easy identification corresponding to the compatible wire gauge.
Its straight orientation and 19 mm overall length make it practical for multiple industrial and commercial electrical wiring applications, such as in automotive systems, industrial control equipment, HVAC units, communication devices, and domestic appliances including washing machines and dryers.
The female spade connector is crimped onto stranded wires using appropriate tooling without any soldering, allowing quick assembly and maintenance by insertion of a mating male tab connector. The funnelled insulation facilitates easy wire insertion for secure termination.
Provides a fast and secure connection with a double crimp design incorporating an internal copper sleeve. Insulated with blue vinyl for safe handling and identification matching wire size. Constructed from tin-plated brass for corrosion resistance and excellent conductivity.
Designed with a straight orientation and 4.8 mm tab width for compatibility with male spade connectors. Suitable for industrial, automotive, communication, HVAC, and domestic appliances applications. 19 mm overall length ensuring compact and reliable connections in confined spaces.
Plastic insulation protects against electric shock and environmental contaminants. This connector is compliant with industrial wiring standards and widely used across sectors that require dependable electrical wiring interconnects.
Explore more reliable Spade Connectors and related electrical components in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes from 16 AWG to 14 AWG, accommodating a range of applications.
The connector features a tab size of 4.8 x 0.5 mm, designed for compatibility with male spade connectors.
It is constructed from tin-plated brass, which provides corrosion resistance and excellent electrical conductivity.
The overall length of this unit is 19 mm, making it suitable for compact connections in confined spaces.
The connector uses a crimp termination method, allowing for quick assembly without soldering.
It is insulated with blue vinyl, which protects against electric shock and environmental contaminants.
This model has a straight orientation, which is practical for various wiring applications.
It is suitable for industrial, automotive, communication, HVAC, and domestic appliances applications.
The tab thickness is 0.5 mm, which is designed for secure connections with compatible male connectors.
The contact material is brass, which is plated with tin for enhanced conductivity and corrosion resistance.
Yes, it is compliant with industrial wiring standards, making it suitable for various sectors requiring reliable electrical connections.
The country of origin for this connector is Taiwan.
