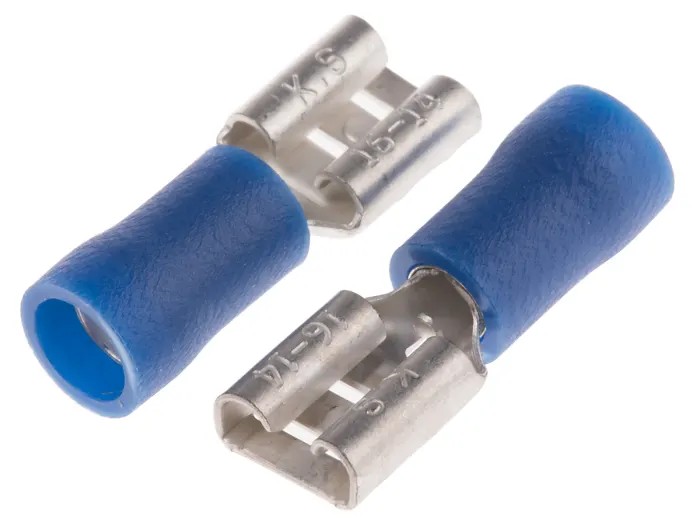

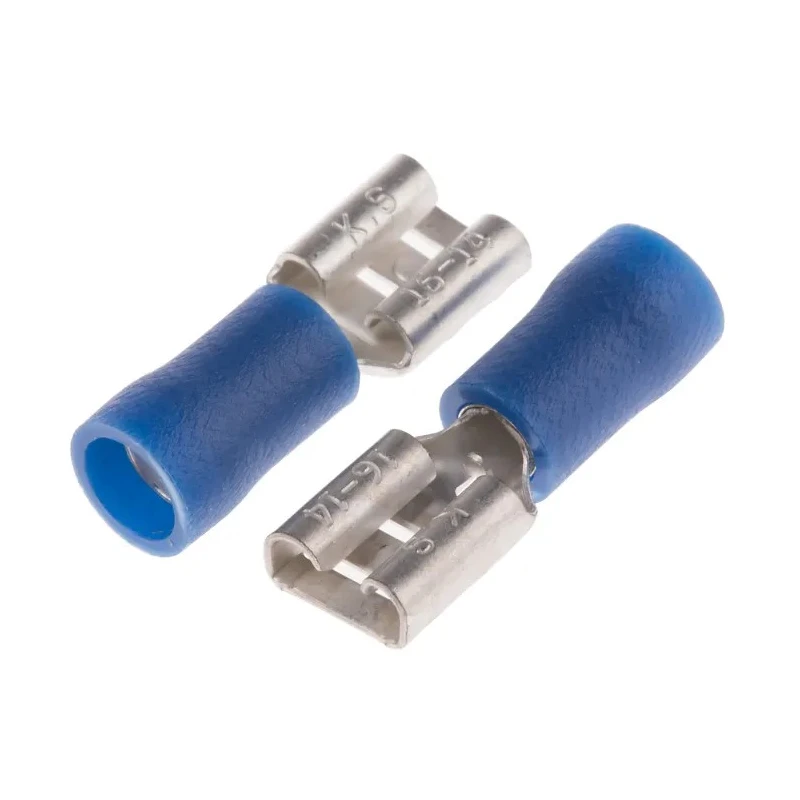

RS PRO Blue Insulated Female Spade Connector Crimp 6.35 x 0.8 mm Tab Size 16 AWG to 14 AWG 125-1947

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Blue Insulated Female Spade Connector Crimp 6.35 x 0.8 mm Tab Size 16 AWG to 14 AWG 125-1947

Name: RS PRO Blue Insulated Female Spade Connector Crimp 6.35 x 0.8 mm Tab Size 16 AWG to 14 AWG 125-1947
Brand: RS PRO
SKU: 142703
Price: 0.16 USD
Availability: InStock



Category Spade Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Blue
Orientation	Straight
Model	125-1947
Gender	Female
Insulation	Insulated
Overall Length	20.8mm
Contact Material	Copper, Brass
Series	RS PRO
Termination Type	Crimp
Insulation Material	Vinyl
Contact Plating	Tin
Minimum Wire Size mm²	1.5mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	14AWG
Tab Width	6.6mm
Tab Thickness	0.8mm
Tab Size	6.35 x 0.8 mm

Key Features

This connector features a double crimp design with an internal copper sleeve for enhanced mechanical strength.
The blue vinyl insulation protects against electrical shock and contaminants.
The 6.35 x 0.8 mm tab size provides standard compatibility with male connectors.
Manufactured with tin-plated brass contact material, ensuring corrosion resistance and good conductivity.
The insulated straight design facilitates easy wiring and quick disconnection.
Suitable for use in industrial, automotive, HVAC, and household appliance applications.
The color-coded insulation enables quick identification of wire gauge size.
Compact overall length of 20.8 mm fits tight spaces without compromising reliability.

Product Description

RS PRO 125-1947 Blue Insulated Female Spade Connector Crimp is a high-quality terminal designed for secure wire connections in industrial, automotive, HVAC, and domestic appliance use. The connector is compatible with wire sizes ranging from 16 AWG to 14 AWG (1.5 mm² to 2.5 mm²) and features a standard 6.35 x 0.8 mm tab size for seamless mating with male terminals.

The female receptacle terminal has a double crimp with an internal copper sleeve, providing added mechanical strength and resistance to vibration and stress. The contact material consists of tin-plated brass which delivers excellent corrosion resistance and conductivity. Its vinyl insulation protects the user from electrical shock while safeguarding the connection from dirt, grease, and moisture.

The blue color coding of the insulation allows for quick identification of wire gauge, facilitating efficient installation. The straight orientation optimizes ease of use and reliable connection in compact or restricted environments.

This Spade Connector is ideal for complex industrial control systems, automotive wiring harnesses, power supplies, HVAC equipment, and household appliances such as washing machines and dishwashers. It ensures fast, secure, and maintenance-friendly wire connections without requiring soldering.

This connector features a double crimp design with an internal copper sleeve for enhanced mechanical strength. The blue vinyl insulation protects against electrical shock and contaminants. The 6.35 x 0.8 mm tab size provides standard compatibility with male connectors.

Manufactured with tin-plated brass contact material, ensuring corrosion resistance and good conductivity. The insulated straight design facilitates easy wiring and quick disconnection. Suitable for use in industrial, automotive, HVAC, and household appliance applications.

The color-coded insulation enables quick identification of wire gauge size. Compact overall length of 20.8 mm fits tight spaces without compromising reliability. Explore more connectors and wire terminals from RS PRO and other trusted brands to meet your electronic components and power connection needs at EnvMart.
