RS PRO Red Insulated Female Spade Connector, Crimp Termination, 4.75 x 0.5 mm Tab Size, 22 AWG to 16 AWG 125-1945

Free Delivery in India | Lowest Global Shipping Charges

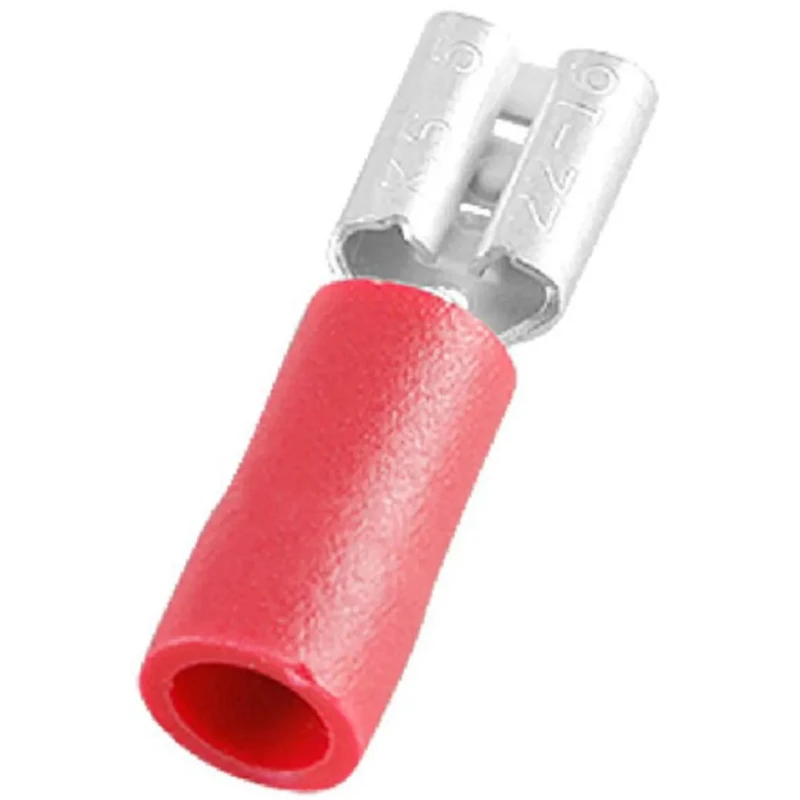

RS PRO Red Insulated Female Spade Connector, Crimp Termination, 4.75 x 0.5 mm Tab Size, 22 AWG to 16 AWG 125-1945

Name: RS PRO Red Insulated Female Spade Connector, Crimp Termination, 4.75 x 0.5 mm Tab Size, 22 AWG to 16 AWG 125-1945
Brand: RS PRO
SKU: 142710
Price: 0.09 USD
Availability: InStock



Category Spade Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Red
Orientation	Straight
Model	125-1945
Gender	Female
Insulation	Insulated
Overall Length	19.4mm
Contact Material	Brass, Copper
Series	RS PRO
Termination Type	Crimp
Insulation Material	Vinyl
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Tab Width	4.75mm
Tab Thickness	0.5mm
Tab Size	4.75 x 0.5 mm

Key Features

The connector features a red vinyl insulation for easy wire size identification and protection against electrical shock.
Crimp termination with a double crimp design and internal copper sleeve ensures strong mechanical and electrical contact.
Tin-plated brass and copper contact materials resist corrosion and deliver excellent conductivity.
Suitable for quick disconnect applications in industrial, automotive, and consumer electronics.
Straight orientation and 4.75 x 0.5 mm tab size ensure compatibility with corresponding male connectors.
Plastic insulation also provides protection from dirt, grease, and moisture.
Overall length is compact at 19.4 mm for space-efficient wiring solutions.

Product Description

RS PRO 125-1945 Red Insulated Female Spade Connector is a high-quality crimp termination electrical connector designed for wire sizes ranging from 22 AWG (0.5 mm²) to 16 AWG (1.5 mm²). It provides a fast and reliable means of connecting female quick disconnect terminals to male tabs in a wide range of electronic, automotive, and industrial applications.

The connector body is composed of tin-plated brass and copper materials, offering excellent corrosion resistance and electrical conductivity. Its double crimp with an internal copper sleeve ensures a robust and secure crimp joint, protecting the wire from mechanical stress and vibration commonly found in industrial and automotive environments.

Equipped with a red vinyl insulated sleeve, this female spade connector offers protection from electrical shocks and guards against dirt, grease, and moisture ingress. The insulation color corresponds to the wire size, simplifying identification and installation.

This connector's straight orientation and a tab size of 4.75 x 0.5 mm make it compatible with male blade connectors of matching dimensions. Its compact overall length of 19.4 mm facilitates wiring in space-constrained setups such as control panels, HVAC systems, and domestic appliances.

Red vinyl insulated for electrical safety and easy wire gauge identification. Durable tin plating on brass and copper contacts enhances conductivity and prevents corrosion. Double crimp design with internal copper sleeve provides mechanical strength and vibration resistance.

Quick connection and disconnection capability for efficient assembly and maintenance. Suitable for industrial controls, automotive wiring, communication equipment, power supplies, and household appliances. Protects connections from contaminants and electrical shorts.

Compact size allows use in tight wiring harnesses.

RS PRO is a trusted brand for quality electronic components. This female Spade Connector supports a broad range of professional applications in industrial, automotive, manufacturing, HVAC, and domestic contexts.
