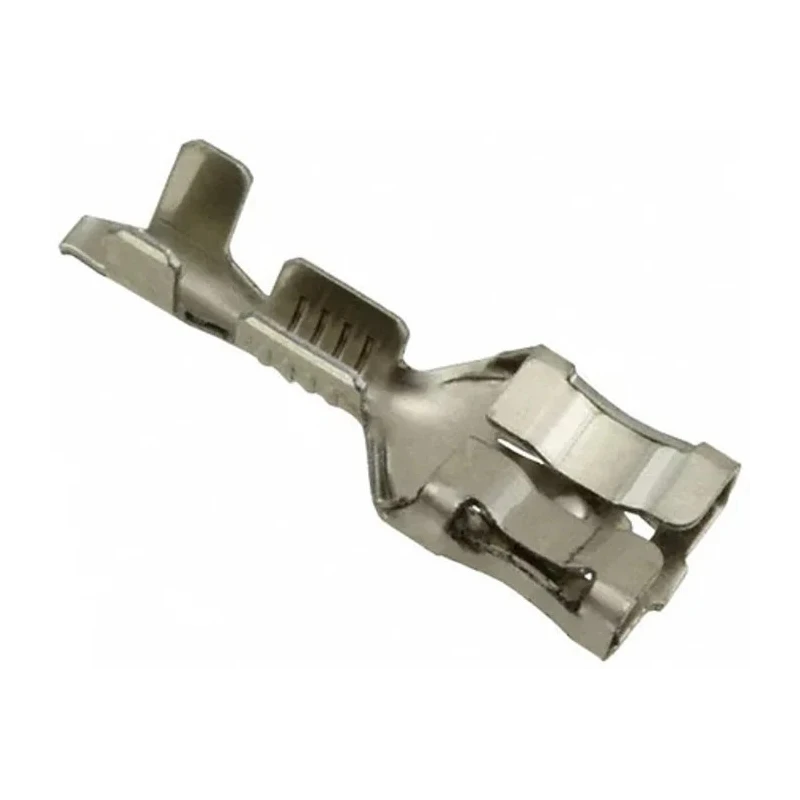

TE Connectivity FASTON .250 Silver Uninsulated Female Spade Connector, Crimp, 3 (Section E-E) mm, 4.5 (Section 2178299-1

TE Connectivity 2178299-1 FASTON .250 Silver Uninsulated Female Spade Connector is a robust and reliable crimp terminal designed for low profile electrical connections. It features a durable steel contact material plated with nickel to resist corrosion while providing excellent conductivity. The termination type is crimp, facilitating secure attachment to wires in various industrial and commercial electrical assemblies.

This connector supports wire sizes from 0.5 mm² (20 AWG) to 1 mm² (18 AWG), fitting tabs with a width of 6.35 mm and thickness of 0.81 mm. The component has a straight orientation with an overall length of 19 mm, ensuring compatibility with standard tab terminals.

The design incorporates a leaf spring contact mechanism, enabling low insertion force under 35 Newtons for easy mating even in restricted spaces. Locking dimples provide a secure connection to prevent accidental disconnection, and the tab guidance feature enhances mating accuracy and electrical reliability. The uninsulated silver finish connector is suitable for applications where insulation is provided elsewhere or not required.

These connectors are widely used in high temperature environments, small appliances, electric motors, power tools, lighting systems, air conditioning, refrigeration, and elevator lift equipment. They conform to the FASTON .250 series, known for durability and reliability in demanding industrial conditions.

Constructed with durable steel contact material plated with nickel for corrosion resistance. Uninsulated design suitable for compact and reliable electrical connections. Designed for female gender with straight orientation and low profile FASTON .250 series.

Supports wire sizes from 0.5mm² (20 AWG) to 1 mm² (18 AWG) with a maximum tab width of 6.35 mm. Features easy insertion with a low insertion force under 35 Newtons. Includes locking dimples for secure mechanical and electrical connection.

Silver color finish enhances corrosion resistance and visual identification. Overall length of 19 mm ensures compatibility with common tab types. Ideal for use in appliances, electric motors, power tools, lighting, and HVAC applications.

Choose this TE Connectivity FASTON .250 connector for your electronic component needs to ensure robust and reliable electrical contacts. Browse the Electronics & Electricals category at EnvMart for more specialized connectors and terminal solutions.
