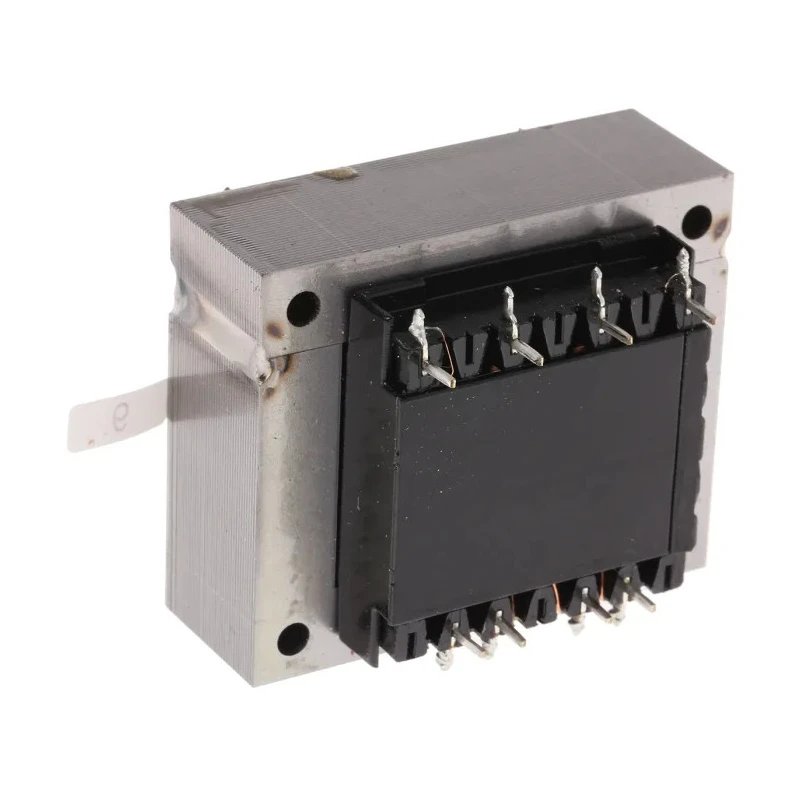

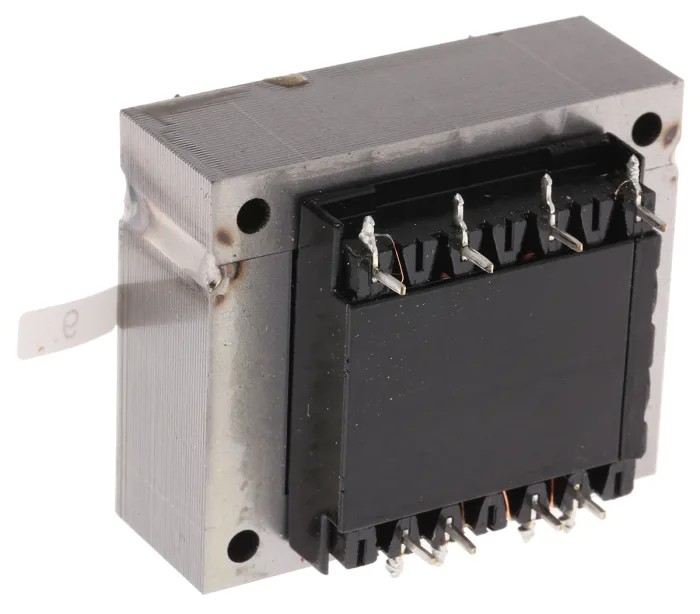

RS PRO 12 V ac 2 Output Through Hole PCB Transformer, UKCA, RoHS, CE, 12 VA 504-527

RS PRO 504-527 12 V ac 2 Output Through Hole PCB Transformer is a highly reliable PCB transformer designed for power supply applications. With a 230 V ac primary winding and dual secondary outputs delivering 12 VA, it suits a wide range of electronic and electrical equipment requiring safe, efficient voltage transformation. The transformer features fully shrouded bobbins and extra pins to ensure secure mounting on printed circuit boards.

The dual secondary windings can be connected in series or parallel, providing flexibility in voltage and current output configurations. It operates efficiently at 82%, minimizing energy loss, and can handle maximum operating temperatures up to 130°C, making it suitable for demanding industrial and commercial environments. Safety and quality are ensured through compliance with UKCA, RoHS, and CE standards, along with 100% electrical and flash testing based on BS3535 and EN 60742 standards.

Its compact size of 54mm by 45mm by 41mm and through hole mounting style facilitates easy integration into electronic assemblies. Typical applications include power supplies for industrial automation, electronic instrumentation, HVAC control systems, and other laboratory or manufacturing equipment requiring regulated AC voltage transformation.

230 Vac primary transformer with dual secondary outputs for versatile voltage options. Fully shrouded bobbin construction ensures electrical safety and durability. Extra pins reinforce secure mounting on PCB to prevent mechanical failure.

High efficiency of 82% supports energy-saving designs with reduced heat generation. Tested to rigorous standards ensuring reliability and long service life. Compliant with UKCA, RoHS, and CE ensures environmental compliance and safety certifications.

Compact footprint suitable for dense electronic PCB layouts in industrial and commercial uses.

This RS PRO transformer is designed to meet the needs of electronics manufacturers, repair technicians, and industrial users who require dependable and certified PCB Transformers. The robust construction and compliance with international safety and environmental standards make it an ideal component in power supply and voltage regulation tasks.
