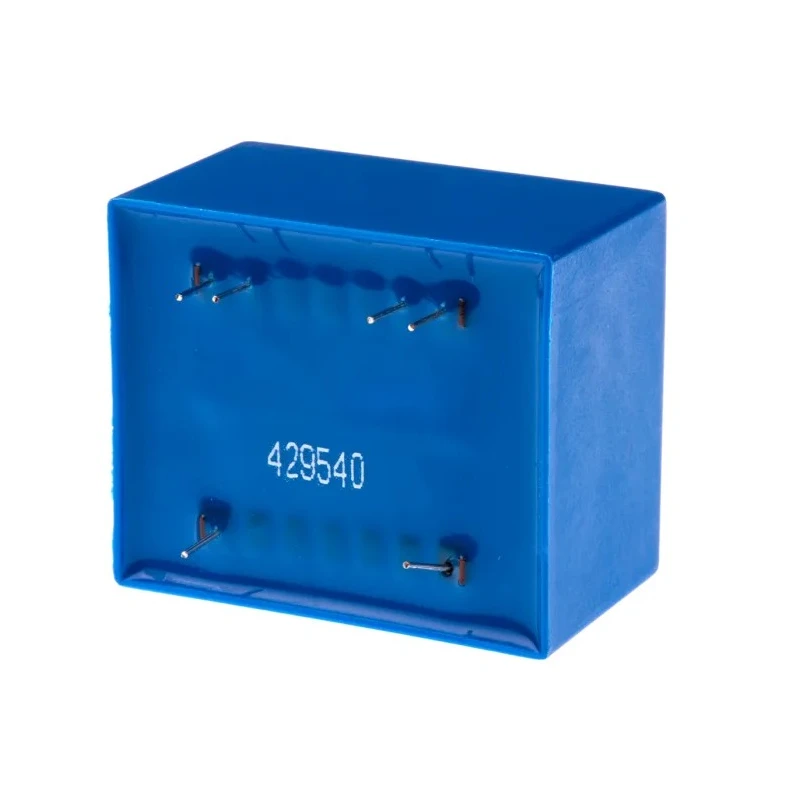

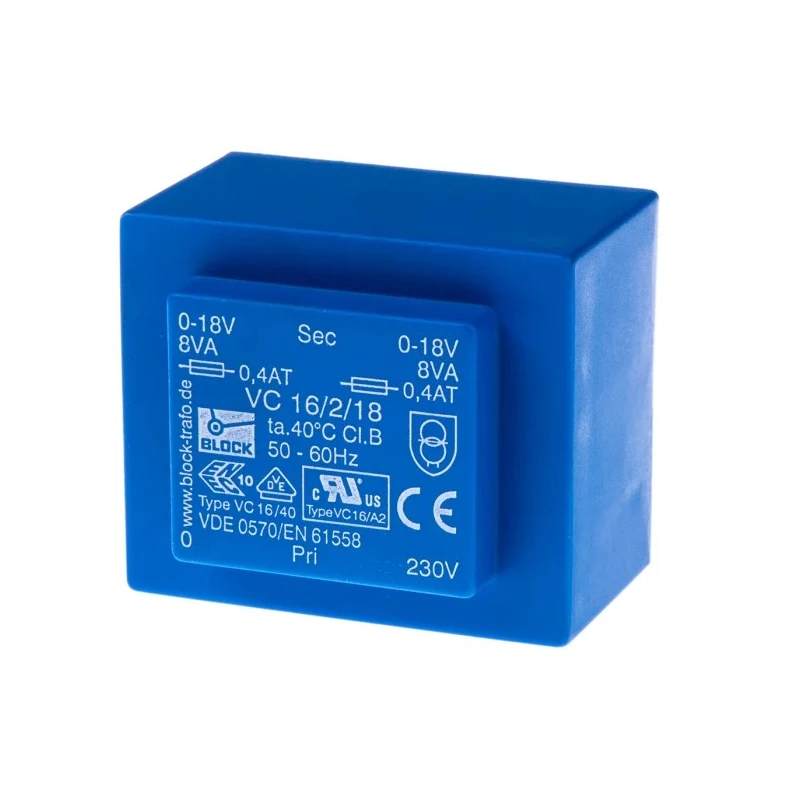

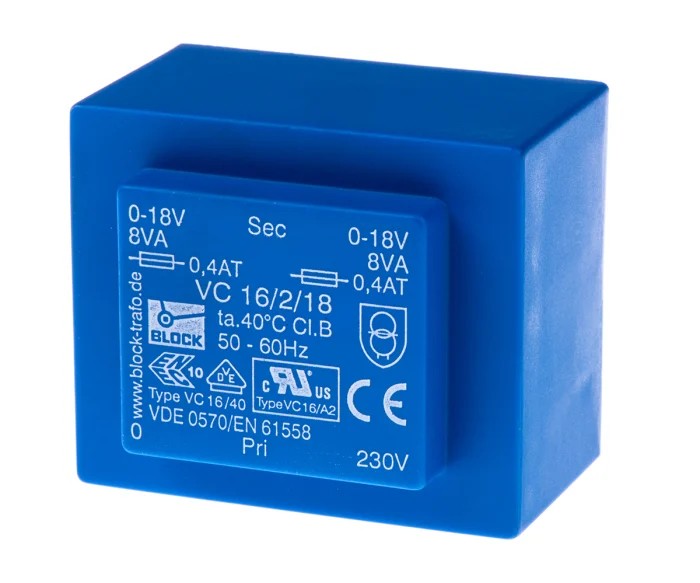

Block 2 x 18 V ac 2 Output Pin PCB Transformer, 230 V ac Primary, 16 VA Power, Pin Mount, VC 16/2/18

Block VC 16/2/18 is a high-performance 2 Output Pin PCB Transformer designed for precise electronic applications requiring a 230 V ac primary input and providing dual 18 V ac secondary outputs. Operating at 16 VA power capacity, it is ideal for printed circuit board installations where secure pin mounting is essential.

This PCB transformer is vacuum resin moulded to UL94-V0 rating, ensuring robust electrical insulation and safety. Its low inter-winding capacitance and low radiated noise characteristics contribute to efficient and interference-free power delivery in compact electronic assemblies.

With dimensional specifications measuring 57 mm in length, 39 mm in width, and 48 mm in depth, the transformer fits neatly in constrained PCB layouts without compromising performance. It supports operating frequencies from 50 Hz to 60 Hz and maintains an efficiency of 76%, maximizing energy utilization.

Certified to meet international safety and quality standards including CSA 22.2 No.66, DIN EN 61558-2-6, VDE 0570 Part 2-6, IEC 61558-2-6, EN 61558-2-6, and UL 5085-1/-2, this device is suitable for industrial, commercial, and laboratory electronics projects requiring reliable transformers with safety approvals.

The compact design supports an operating temperature up to 40°C, making it suitable for diverse environmental conditions. Weighing approximately 420 grams, it ensures minimal load on PCB structures while delivering consistent output.

Manufactured in Germany, the transformer guarantees top-grade craftsmanship and adherence to stringent manufacturing protocols. Features dual 18 V ac secondary outputs for flexible configurations. Pin type mounting ensures secure installation on PCB boards.

Constructed with vacuum resin moulding to UL94-V0 standard for safety and durability. Low inter-winding capacitance and minimal radiated noise enhance performance. Complies with CSA 22.2 No.66, DIN EN 61558-2-6, VDE 0570 Part 2-6, IEC 61558-2-6, and UL 5085 safety standards.

Rated efficiency of 76% with maximum operating temperature of 40°C. Dimensions of 57 mm length, 39 mm width, and 48 mm depth enable compact PCB integration. Designed for operation at frequency range 50-60 Hz. Weight approximately 420 g for lightweight application integration.

Manufactured in Germany ensuring high-quality engineering. Explore more high-quality PCB Transformers and professional power supply components at EnvMart for your specialized electrical and electronic manufacturing needs.
