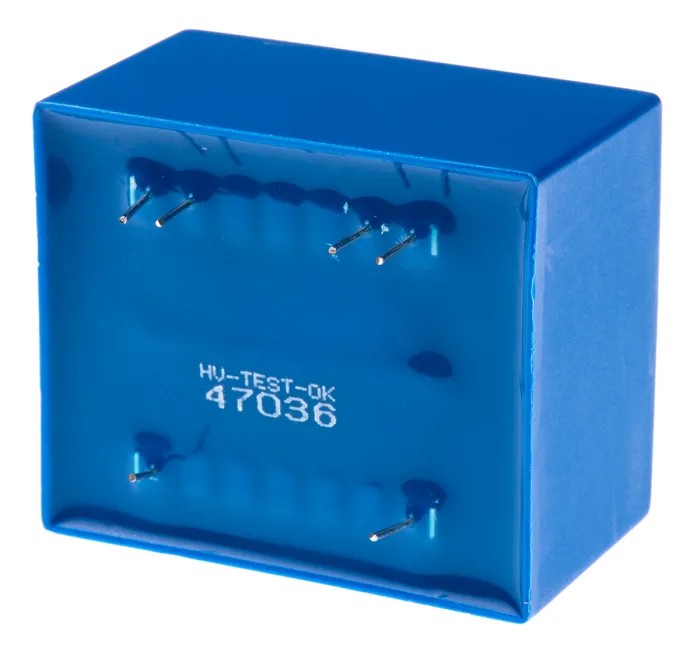

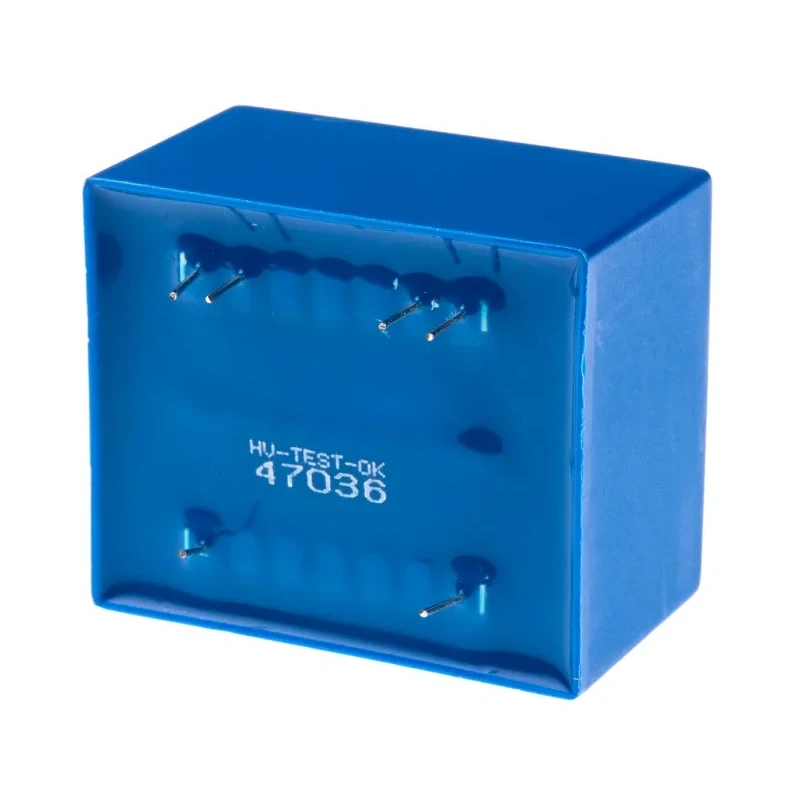

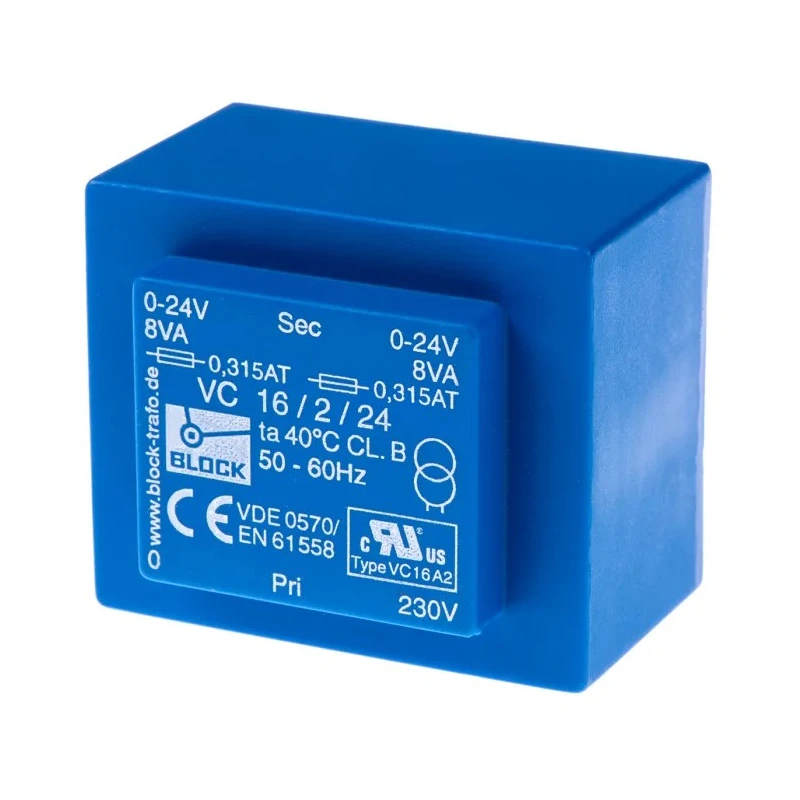

Block 2 x 24 V AC 2 Output Pin PCB Transformer, 16VA Power, Pin Mount Type, VC 16/2/24

Block VC 16/2/24 is a high-quality PCB transformer with dual 24 V AC outputs and a power rating of 16VA, tailored for printed circuit board applications requiring reliable and stable voltage transformation. It operates at a primary voltage of 230 V AC, catering to standard electrical supplies worldwide.

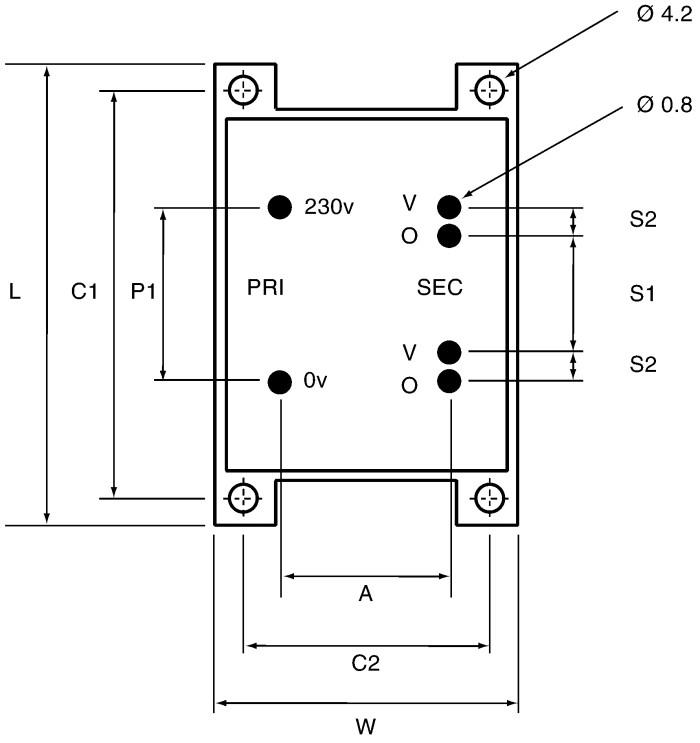

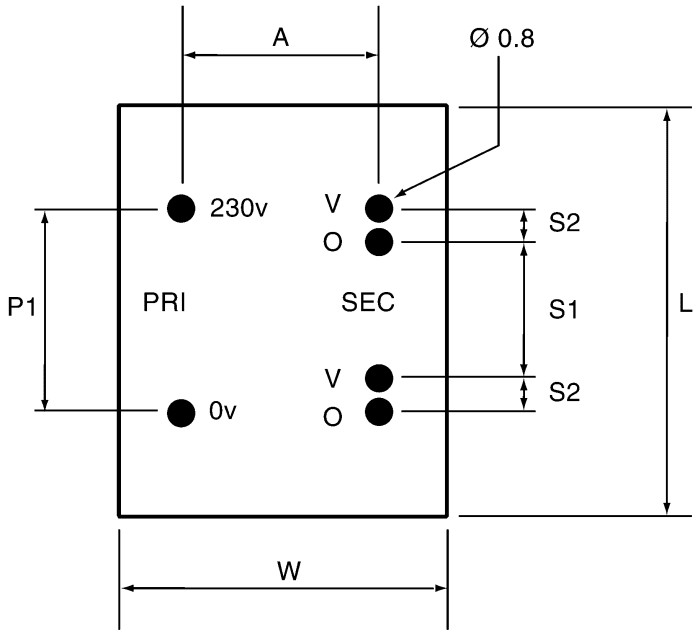

This pin mount type transformer is vacuum resin moulded to the UL94-V0 safety rating, ensuring excellent electrical insulation and fire safety during operation. The compact dimensions of 57 mm length, 39 mm width, and 48 mm depth facilitate easy integration onto PCBs without occupying excessive space.

The transformer is compliant with several rigorous international standards, including DIN EN 61558-2-1, CSA 22.2 No.66, cURus, IEC 61558-2-1, and UL 5085-1/-2, ensuring dependable performance and safe operation in industrial and commercial settings.

The design incorporates low inter-winding capacitance and minimal radiated noise, making it ideal for sensitive electronic equipment where clean power supply is critical. This ensures noise reduction and interference minimization in complex circuits.

Its operating frequency range of 50 to 60 Hz supports global electrical environments. The unit is 100% electrically and flash tested to guarantee quality and durability under demanding operating conditions.

Additional product features include extra fixing points for secure board mounting, enhancing mechanical stability during installation and usage. The weight of 420 g underscores its robust and compact construction, suitable for various industrial, laboratory, and manufacturing applications requiring PCB Transformers.

This Block PCB transformer is particularly suited for power supplies, signal processing, and control systems within electronic manufacturing, HVAC controls, and instrumentation industries.

This PCB transformer features dual 24 V AC secondary outputs for versatile connectivity. It operates with a primary voltage of 230 V AC suitable for standard power grids. The transformer has a pin mount type ensuring secure and stable PCB installation.

The unit is vacuum resin moulded to UL94-V0 for excellent safety and insulation. It complies with multiple international safety standards including DIN EN 61558-2-1, CSA 22.2 No.66, and UL 5085-1/-2. The design ensures low inter-winding capacitance and low radiated noise for clean signal performance.

Operating frequency supports a range of 50 to 60 Hz suitable for global usage. The device is tested 100% electrically and flash tested for quality assurance. Explore more transformers and electronic components at EnvMart for your industrial and laboratory needs.
