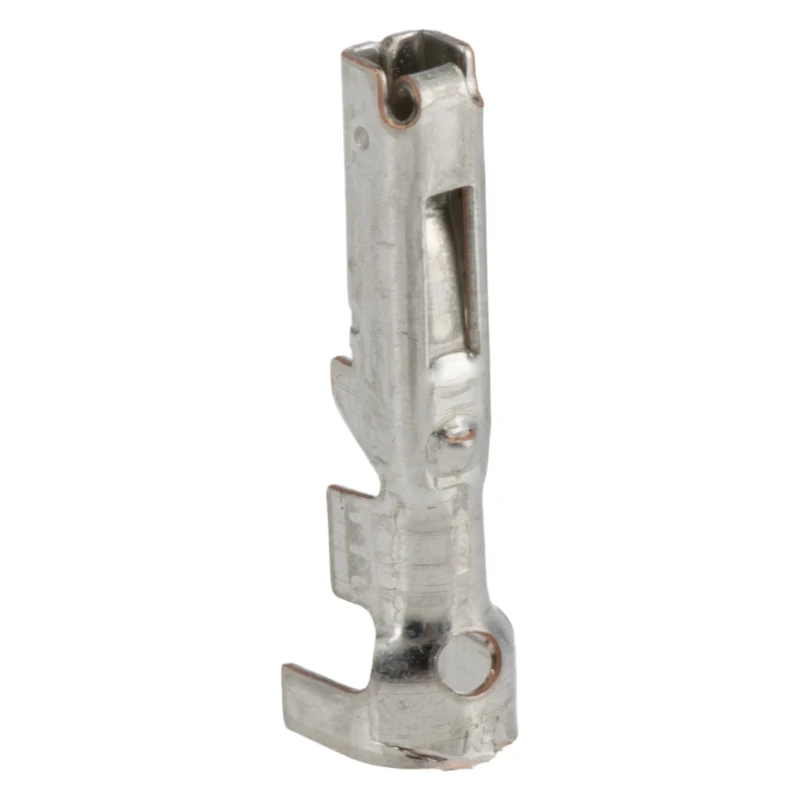

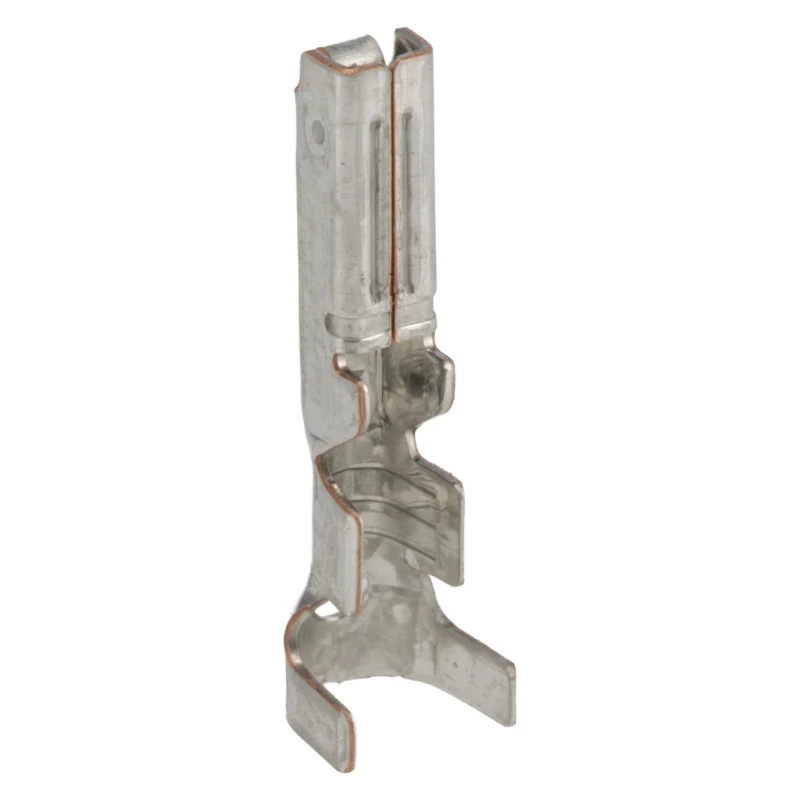

TE Connectivity AMP SUPERSEAL 1.5 Black Uninsulated Female Spade Connector, Crimp, 1.5 x 0.8 mm Tab Size 17 AWG to 183025-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMP SUPERSEAL 1.5 Black Uninsulated Female Spade Connector, Crimp, 1.5 x 0.8 mm Tab Size 17 AWG to 183025-1

Name: TE Connectivity AMP SUPERSEAL 1.5 Black Uninsulated Female Spade Connector, Crimp, 1.5 x 0.8 mm Tab Size 17 AWG to 183025-1
Brand: TE Connectivity
SKU: 140816
Price: 0.44 USD
Availability: InStock



Category Spade Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Black
Orientation	Straight
Model	183025-1
Gender	Female
Insulation	Uninsulated
Overall Length	16.5mm
Contact Material	Phosphor Bronze
Series	AMP SUPERSEAL 1.5
Termination Type	Crimp
Contact Plating	Tin
Minimum Wire Size mm²	0.75mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	17AWG
Maximum Wire Size AWG	15AWG
Tab Width	1.5mm
Tab Thickness	0.8mm
Tab Size	1.5 x 0.8 mm

Key Features

The connector features a 1.5 mm width and 0.8 mm thickness tab size compatible with 17 AWG to 15 AWG wires.
Constructed with phosphor bronze contact material plated with tin to ensure conductivity and corrosion resistance.
Designed with a straight orientation and black uninsulated finish for easy integration.
Overall length of the connector is 16.5 mm, suitable for compact connection needs.
Part of the AMP SUPERSEAL 1.5 series providing secure locking and IP67 sealing when used with wire seals.
Offers sturdy double contact spring design and secondary lock to ensure reliable insertion.
Ideal for automotive sensor devices, oil pressure senders, and water temperature monitoring requiring waterproof protection.

Product Description

TE Connectivity 183025-1 AMP SUPERSEAL 1.5 Black Uninsulated Female Spade Connector is a high-quality crimp contact designed for secure electrical connections in automotive and industrial environments. It supports wire sizes ranging from 17 AWG to 15 AWG with a tab dimension of 1.5 x 0.8 mm, ensuring compatibility with standard SUPERSEAL series connectors.

The contact material is phosphor bronze plated with tin for durability, corrosion resistance, and excellent electrical performance. The uninsulated black connector with a straight orientation complements compact and efficient wiring systems.

With an overall length of 16.5 mm, this female spade connector is designed to maintain secure connections, enhanced by the AMP SUPERSEAL 1.5 series features including a two-step positive lock and IP67 rated sealing when combined with appropriate wire seals. This ensures reliable performance even in harsh environmental conditions.

The secondary lock mechanism guarantees correct and complete insertion of the contact within its housing. Its double contact spring design provides a sturdy and reliable interface for automotive sensors, oil pressure senders, and water temperature monitoring applications.

This connector is suitable for various industrial sectors including automotive manufacturing, electrical wiring, HVAC control systems, and quality water treatment monitoring equipment. It is built to meet rigorous safety and reliability standards required in these fields.

The high-quality tin plating increases resistance to oxidation and extends product life. AMP SUPERSEAL 1.5 series is developed to meet increasing safety and reliability demands in electrical connections. Secondary lock and rubber seals contribute to robust protection and performance.

Compatible with specific tooling such as extraction and insertion tools available from TE Connectivity.

The package consists of individual loose female Spade Connectors designed for crimping during wire assembly. This product is an essential component for engineers and technicians working in demanding electrical connection applications.
