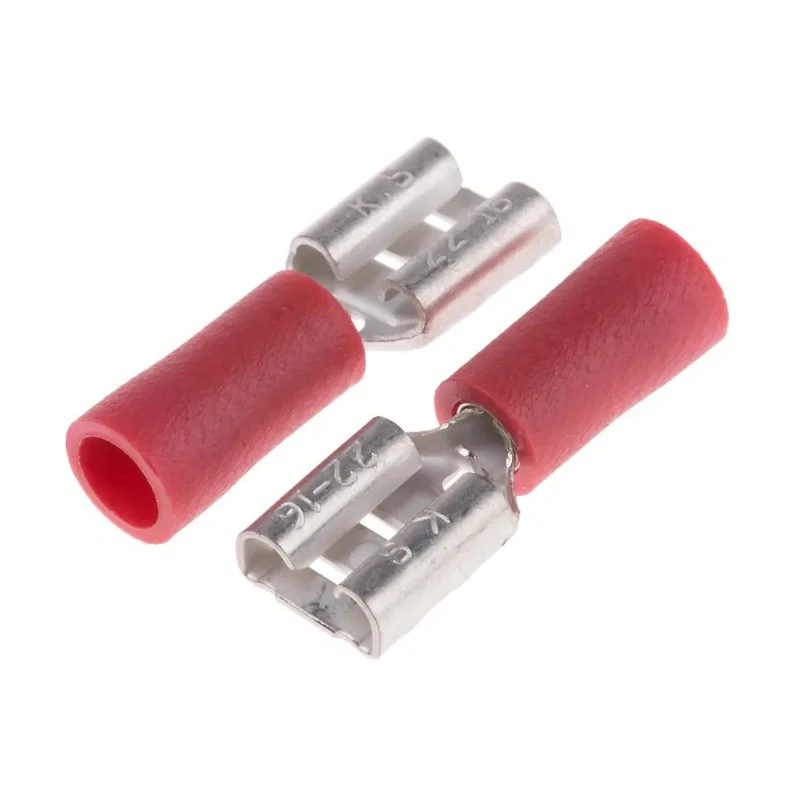

RS PRO Red Insulated Female Spade Connector Crimp 6.35 x 0.8 mm Tab Size 22 AWG to 16 AWG 125-1946

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Red Insulated Female Spade Connector Crimp 6.35 x 0.8 mm Tab Size 22 AWG to 16 AWG 125-1946

Name: RS PRO Red Insulated Female Spade Connector Crimp 6.35 x 0.8 mm Tab Size 22 AWG to 16 AWG 125-1946
Brand: RS PRO
SKU: 142702
Price: 0.1 USD
Availability: InStock



Category Spade Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Red
Orientation	Straight
Model	125-1946
Gender	Female
Insulation	Insulated
Overall Length	20.8mm
Contact Material	Brass, Copper
Series	RS PRO
Termination Type	Crimp
Insulation Material	Vinyl
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Per Unit, RS stock no	125-1946
RS stock no	270-7571
Tab Width	6.35mm
Tab Thickness	0.8mm
Tab Size	6.35 x 0.8 mm

Key Features

High-quality insulated female spade connector designed for crimp termination.
Provides quick and easy connection and disconnection.
Color-coded red vinyl insulation for identification and protection.
Double crimp design with internal copper sleeve enhances strength and crimp security.
Tin-plated brass and copper contact materials ensure excellent conductivity and corrosion resistance.
Straight orientation for ease of use and wiring layout.
Insulation resists dirt, grease, liquids, and electric shock.
Versatile use in industrial, automotive, and consumer electronic applications.

Product Description

RS PRO 125-1946 Red Insulated Female Spade Connector Crimp is a premium quality electrical wire terminal designed to provide fast and reliable connections for stranded wires sized 22 AWG to 16 AWG. With a 6.35 x 0.8 mm tab size and a double crimp design featuring an internal copper sleeve, this connector offers enhanced mechanical strength and superior electrical contact quality.

The contact body is made of brass and copper with tin plating for increased corrosion resistance and conductivity. The vinyl insulation in red color matches the wire size standard, facilitating easy identification and providing protection against electrical shock, grease, liquids, and dirt.

This connector’s straight orientation and robust build make it ideal for automotive wiring, industrial control systems, communication equipment, power supplies, HVAC installations, and domestic appliances including washing machines and dryers.

Installation is simplified by crimping the female receptacle onto the wire end, forming a secure connection without soldering. The male tab connector fits securely into the female receptacle to ensure reliable electrical continuity even under vibration and stress.

High-quality insulated female crimp receptacle terminal. Double crimp design with an internal copper sleeve for durable crimp joint. Tin plating on contact materials ensures corrosion resistance and conductivity. Vinyl insulation protects against electric shock and contamination.

Color-coded red insulation for quick wire size identification. Suitable for industrial, automotive, communication, and domestic appliance wiring. Compact overall length of 20.8 mm for space-efficient connections. Enables quick disconnection and reconnection of electrical circuits.

This connector is part of the RS PRO series and is manufactured in Taiwan, Province of China. It supports applications requiring reliable electrical connections in demanding environments. Explore more from the RS PRO connector range and related wire terminal solutions on EnvMart for your electronic component needs.
