Fenner Fenaflex Spacer Coupling Taper Lock, Flange Bush Size 3535, F140 SM35 180, 100 mm Bore, 2325 Nm Torque

Free Delivery in India | Lowest Global Shipping Charges

Fenner Fenaflex Spacer Coupling Taper Lock, Flange Bush Size 3535, F140 SM35 180, 100 mm Bore, 2325 Nm Torque

Name: Fenner Fenaflex Spacer Coupling Taper Lock, Flange Bush Size 3535, F140 SM35 180, 100 mm Bore, 2325 Nm Torque
Brand: Fenner
SKU: 76396
Price: 598.18 USD
Availability: InStock



Category Coupling Unit Brand Fenner Condition New

Specifications

Country of Origin	India
Size	F140 SM35 180
Brand	Fenner
Model	SM35
Bore Size	100 mm
Items in Pack	1 Piece
Notes	Unboxing Video is Mandatory for any Damage or Leakage Product For Class 3 and Class 4 Driven Machine, kindly calculate power rating with an average service factor of 2.5
Bore	Spacer Max Bore: 100 mm Fenaflex Max Bore: 100 mm

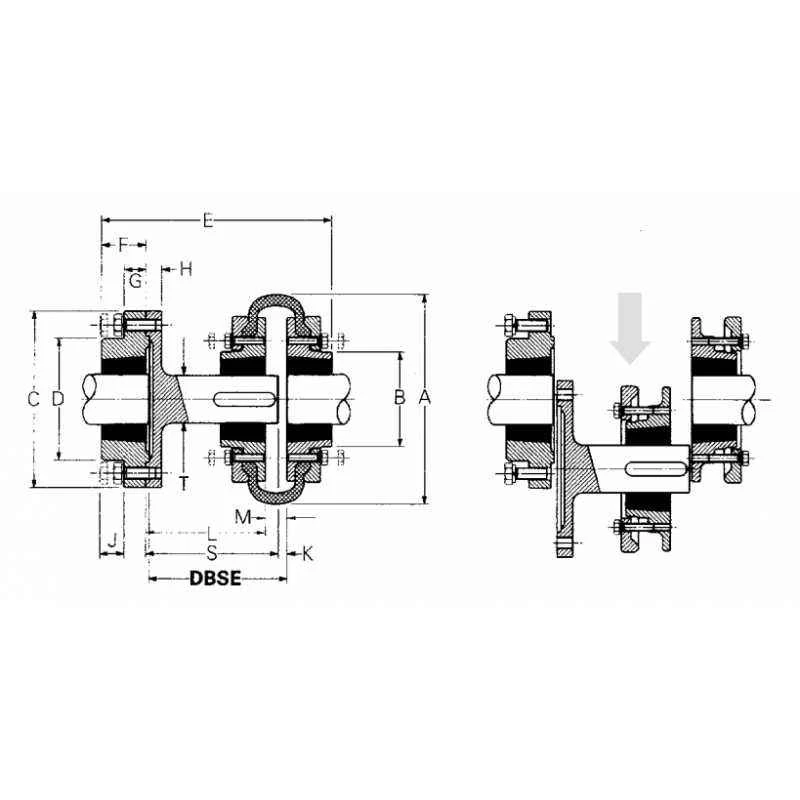

A (mm)	359 mm
B (mm)	178 mm
Spacer Max Bore	100 mm
Nominal Torque	2325 Nm
Flange Taper Lock Bush (TLB) Size	3535
C (mm)	248 mm
D (mm)	178 mm
E (mm)	312 mm
Distance Between End Shafts	180 mm
L (mm)	151 mm
S (mm)	174 mm
F (mm)	63 mm
G (mm)	34 mm
H (mm)	20 mm
J (mm)	17 mm
K (mm)	9 mm
M (mm)	32 mm
T (mm)	80 mm
Bore Spacer Max Bore	100 mm Fenaflex Max Bore: 100 mm

Key Features

Advanced Flange Taper Lock Bush Size 3535 for secure shaft connection.
Nominal torque capacity of 2325 Nm enables reliable operation in demanding environments.
Accommodates up to 6 mm parallel and 8 mm axial misalignment, with 4 angular misalignment capability.
Tyres available in standard and FRAS (Fire Resistant Anti Static) construction, ATEX approved for hazardous locations.
No lubrication required, simplifying maintenance and reducing downtime.
Allows simple visual inspection for fast maintenance checks.
Internal load-carrying cords are wound in both directions for improved reversal drive performance.
Suitable for Class 3 and Class 4 driven machines - service factor of 2.5 recommended for power rating calculation.

Product Description

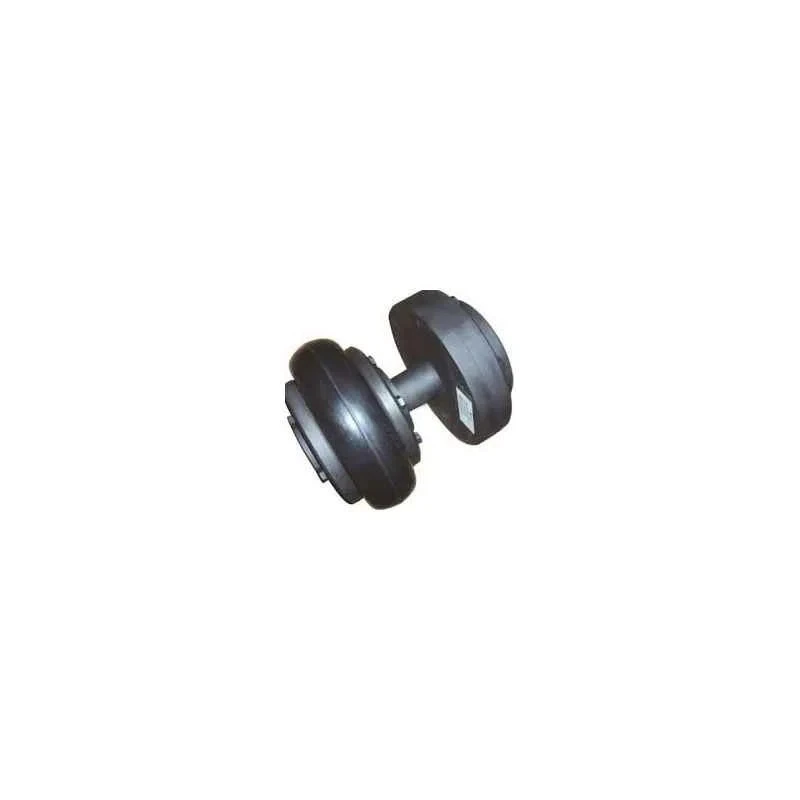

The Fenner Fenaflex Spacer Coupling Taper Lock F140 SM35 180 is a precision-engineered flexible coupling intended for tough industrial power transmission applications. It delivers a nominal torque rating of 2325 Nm, making it ideal for medium- to high-torque drives in manufacturing, pumps, compressors, and industrial machinery.

This coupler is designed for simple installation, allowing tyres to be replaced without disturbing the motor or machine alignment. It features large misalignment capability: 4 degrees angular, up to 6 mm parallel, and 8 mm axial displacement tolerance, ensuring robust performance even when machinery is not perfectly aligned. The internal cords are wound bidirectionally, preventing issues on reversing drives and enhancing durability.

Tyre options include both standard and FRAS (Fire Resistant Anti Static) construction, supporting operation in environments requiring ATEX compliance. The Fenaflex Spacer Coupling is lubrication free, minimizing ongoing maintenance requirements and reducing total ownership costs.

Routine maintenance is straightforward, with simple visual inspection possible to verify coupling condition. The design ensures minimal downtime for part replacement and quick access for routine checks. The product is supplied as a single piece, with detailed dimensions (see specifications) and is suitable for both new builds and equipment upgrades.

Applications extend across multiple industries including industrial manufacturing, HVAC, water treatment, heavy machinery, and process plants, where reliable and maintenance-friendly shaft couplings are required.

For optimal performance in Class 3 and Class 4 driven machines, it is advisable to compute power ratings with a service factor of 2.5. Browse the EnvMart industrial coupling selection for more Fenner components and products supporting reliable power transmission solutions.

Explore more products in our Coupling Unit category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The nominal torque capacity of this coupling is 2325 Nm, making it suitable for medium- to high-torque applications in various industrial settings.

This model accommodates a maximum bore size of 100 mm, ensuring compatibility with standard shaft sizes in industrial applications.

It can accommodate up to 6 mm of parallel misalignment, 8 mm of axial misalignment, and 4 degrees of angular misalignment, allowing for flexibility in installation.

No lubrication is required for this coupling, which simplifies maintenance and reduces downtime.

The country of origin for this coupling is India.

The dimensions of this coupling include a length of 359 mm, a width of 178 mm, and various other measurements specified in the product details.

Tyres are available in standard and FRAS (Fire Resistant Anti Static) construction, providing options for different operational environments.

This coupling is suitable for Class 3 and Class 4 driven machines, with a recommended service factor of 2.5 for power rating calculations.

The installation is designed for simplicity, allowing tyre replacement without disturbing the motor or machine alignment, facilitating quick maintenance.

Applications extend across various industries, including industrial manufacturing, HVAC, water treatment, heavy machinery, and process plants.

The internal load-carrying cords are wound in both directions, which enhances performance on reversing drives and improves durability.

The flange taper lock bush size for this model is 3535, which is essential for secure shaft connections.
