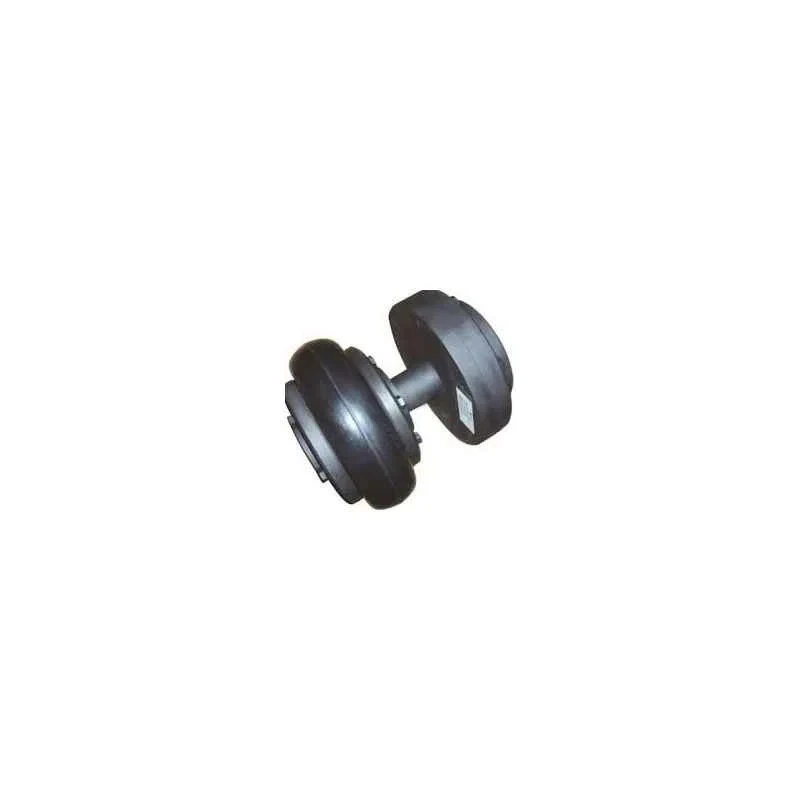

Fenner Fenaflex Tyre Coupling with F Flange Taper Lock, F90, Max Bore 60mm, 6 Pins, ATEX Approved

The Fenner Tyre Coupling with F Flange Taper Lock, size F90, is engineered for robust and flexible power transmission in demanding industrial settings. Designed to couple motor and machinery shafts, this tyre coupling facilitates the accommodation of considerable misalignments, reducing wear and increasing operational life.

This model features a maximum bore of 60 mm and incorporates a Taper lock bush size of 2517 for secure attachment and simplified installation. Its innovative construction allows for up to 4 degrees angular misalignment, 6 mm parallel, and 8 mm axial adjustment. This flexibility ensures optimal performance even under variable load conditions and during machine alignment changes.

Strength and durability are reinforced by the internal load carrying cords, wound in both directions, making the coupling adept at handling reversing drives. The standard rubber tyre arrangement, also available in FRAS (Fire Resistant Anti Static) options, underlines its suitability for hazardous or explosive environments, further supported by its ATEX approval.

Maintenance is user-friendly, requiring only routine visual inspection with no need for lubrication. Replacement of the flexible element can be conducted without disturbing adjacent machinery, leading to significant downtime reduction.

The Fenner F90 tyre coupling is trusted in sectors such as manufacturing, mining, power plants, HVAC systems, conveyors, and heavy-duty pumps. Its precise design, reliable performance, and adaptability make it an excellent choice for equipment manufacturers and industrial operations requiring dependable torque transmission and misalignment management.

Set contains: 1 Piece Tyre Coupling with F Flange and Taper Lock bush. Features a robust construction optimized for easy installation and maintenance. Allows large angular, parallel, and axial misalignments for flexible operation.

Integrates internal load carrying cords for strength in both rotational directions, supporting reversing drives. ATEX approved for use in potentially explosive industrial environments. Maintenance is simplified with its visual inspection design and no lubrication requirement.

Equipped with 6 pins, a maximum bore of 60 mm, and Taper lock bush size 2517. Supplied as a single Coupling Unit, suitable for diverse industrial machinery. For more high-performance couplings and advanced power transmission solutions, explore the Fenner range and related categories on EnvMart.
