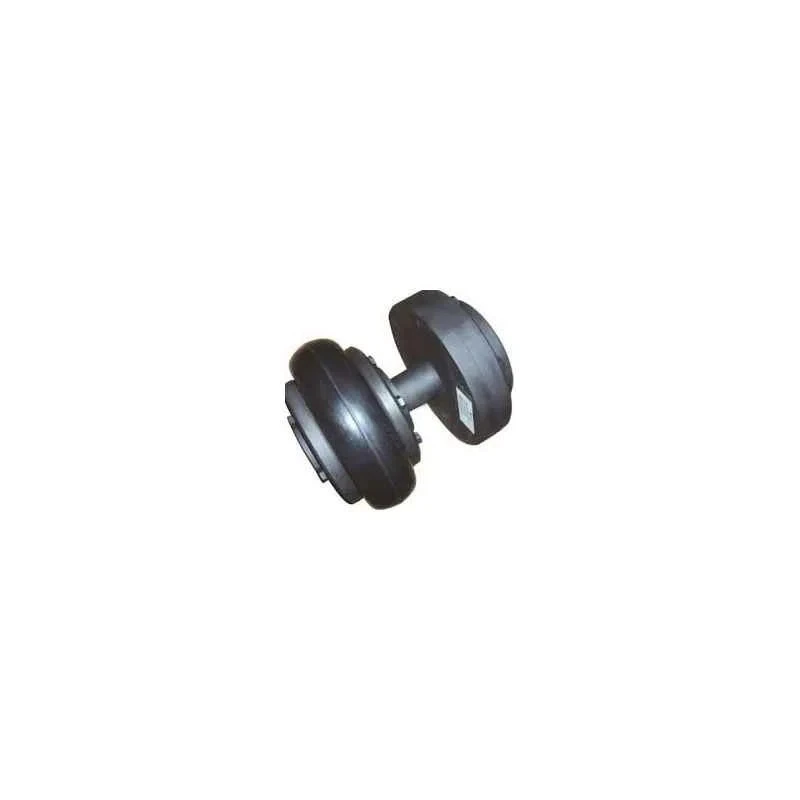

Fenner Fenaflex Tyre Coupling with B Flange Pilot Bore F180, Max Bore 150 mm, 10 Pin, Large Misalignment Capability

The Fenner Fenaflex Tyre Coupling with B Flange Pilot Bore F180, is a robust and high-quality coupling specifically designed to enhance power transmission in industrial machinery and equipment. This unit features a pilot bore that accommodates bore sizes ranging from 75 mm to 150 mm, making it convenient for a wide variety of shaft diameters. It is engineered with a large misalignment capability, meeting stringent requirements for parallel, angular, and axial tolerance.

A key advantage of the Fenaflex Tyre Coupling is its simple installation process, which allows for the tyre to be replaced without needing to disconnect the motor or machine. This ease of maintenance minimizes downtime and maximizes productivity in demanding environments such as manufacturing plants, process industries, and power generation facilities.

The coupling incorporates internally wound load carrying cords in both directions, ensuring consistent performance even in applications involving reversing drives. This feature, along with the 10-pin configuration, contributes to its durability and operational reliability.

Safety is a priority with tyres available in standard and FRAS (Fire Resistant Anti Static) construction, and ATEX approval makes the coupling suitable for hazardous and explosive environments. Its advanced design eliminates the need for lubrication, further simplifying maintenance routines and reducing operational costs.

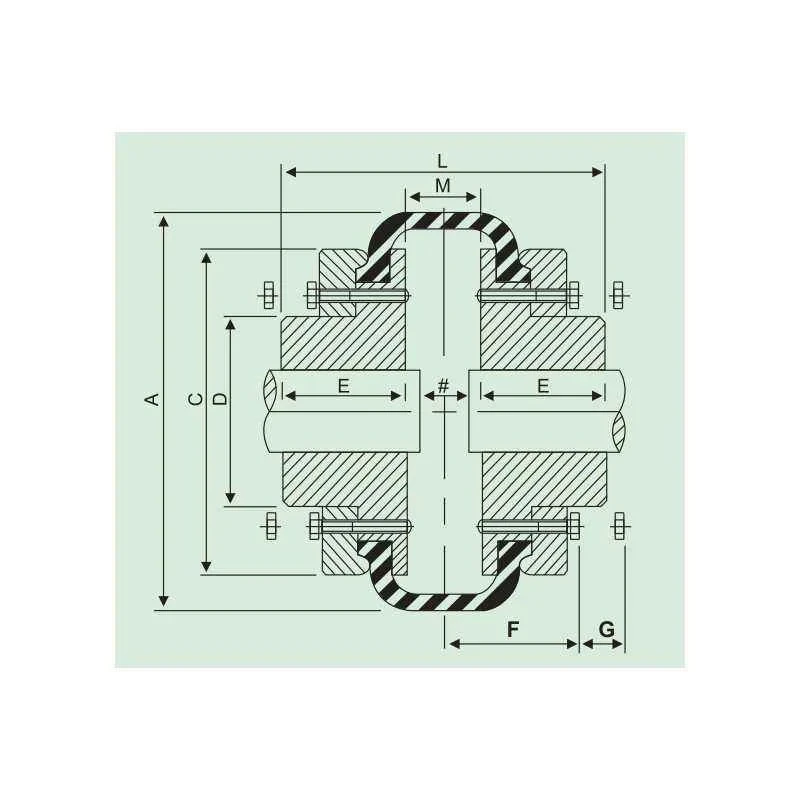

Routine maintenance is facilitated by simple visual inspection, allowing operators to quickly verify the condition of the tyre and the coupling assembly. The F180 size specification includes dimensions such as A: 470 mm, C: 398 mm, D: 266 mm, E: 114 mm, F: 94 mm, G: 19 mm, L: 258 mm, and M: 30 mm, ensuring compatibility with a broad array of machinery.

Simple installation saves time and does not disturb connected machinery during tyre replacement. Offers large misalignment capability with up to 4 degrees angular, 6 mm parallel, and 8 mm axial. Internal load carrying cords wound in both directions for reliable performance on reversing drives.

Tyres available in standard and FRAS (Fire Resistant Anti Static) construction. ATEX approved for safety in hazardous environments. No lubrication required due to advanced design. Visual inspection enables easy maintenance checks.

Supplied in F180 size with a max bore of 150 mm and 10-pin configuration.

Industrial applications include power transmission for motors and pumps, conveyor systems, compressors, fans, and other rotating equipment in manufacturing, HVAC, and process industries. Fenner’s Fenaflex Tyre Coupling provides a reliable solution for ensuring smooth and safe operation under demanding conditions.
