| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.15mm |
| Length | 4mm |
| Model | V2P6XHM3/H |
| Width | 2.18mm |
| Mount Type | Surface |
| Series | V2 |
| Maximum Operating Temperature | 175°C |
| Package Type | SMP (DO-220AA) |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 0.64V |

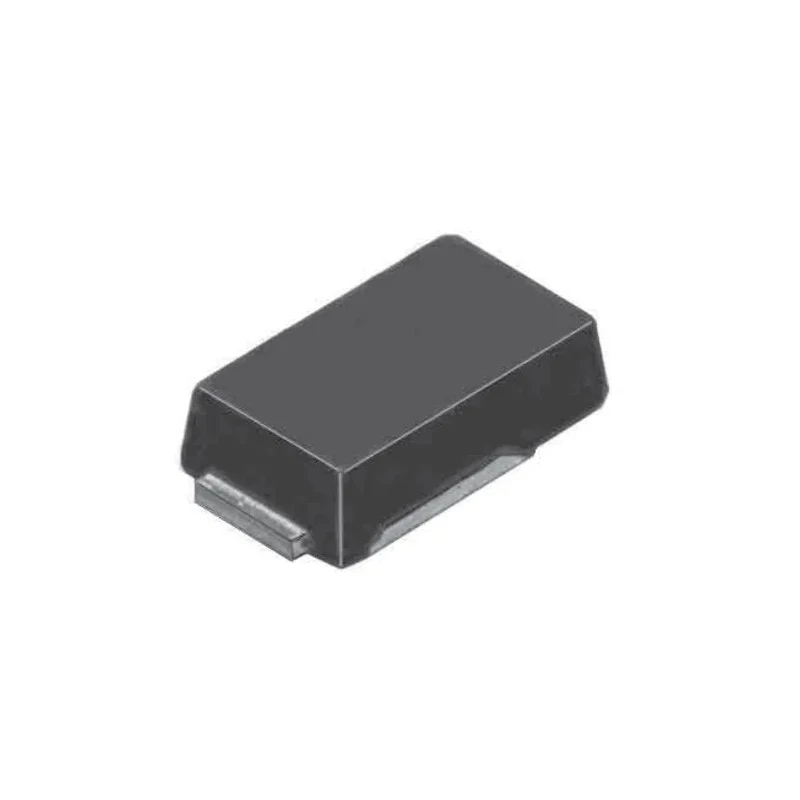

Vishay V2P6XHM3/H is a surface mount trench MOS barrier Schottky rectifier diode designed for industrial and automotive electronics requiring efficient rectification and low power losses. It operates up to a maximum repetitive peak reverse voltage of 60 V and supports a maximum continuous forward current of 2 A.
This diode’s SMP (DO-220AA) package offers a low profile of dimensions 4 mm length, 2.18 mm width, and 1.15 mm height, suitable for compact circuit board designs. It withstands junction temperatures from -40°C to 175°C, enabling reliable performance under harsh operating conditions. Its low forward voltage drop of 0.64 V contributes to higher efficiency and reduced heat dissipation.
The V2P6XHM3/H meets automotive standard AEC-Q101, making it suitable for automotive electronics applications. Typical uses include low voltage, high frequency inverter circuits, freewheeling diodes, DC/DC converters, and polarity protection to prevent reverse polarity damage.
Key features include a peak non-repetitive forward surge current of 50 A and a low leakage peak reverse current of 2 mA, contributing to its robustness in transient conditions. It operates as a single diode in this discrete semiconductor family.
The SMP (DO-220AA) package ensures ease of surface mount assembly with optimal thermal characteristics. Broad operating temperature range from -40°C to 175°C supports a variety of industrial and automotive environments. Low forward voltage drop enhances efficiency in power supply applications.
Designed for high frequency and fast switching applications typical in modern power electronics. Automotive AEC-Q101 qualification confirms stringent reliability standards compliance. Compact 2-pin diode configuration facilitates straightforward circuit design integration.
Applications include use in industrial power supplies, automotive electronics, DC/DC conversion modules, and freewheeling diodes in motor control circuits. Vishay's robust manufacturing quality ensures long-term reliability and performance in demanding environments.
