Nexperia Uni-Directional ESD Protection Diode 2-Pin I-IGIA 180 W PESD12VS1UB,115

Free Delivery in India | Lowest Global Shipping Charges

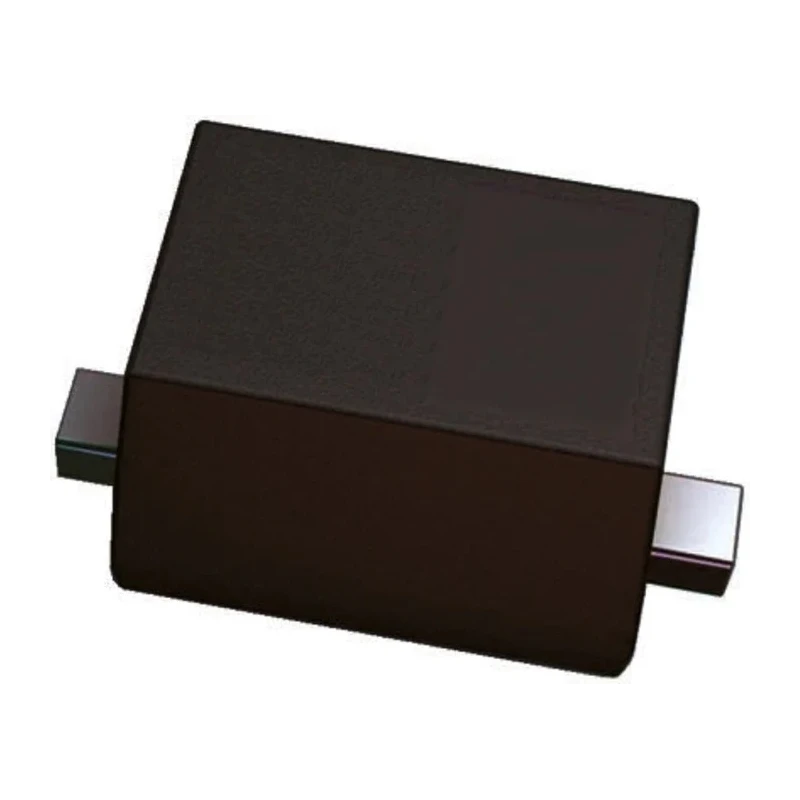

Nexperia Uni-Directional ESD Protection Diode 2-Pin I-IGIA 180 W PESD12VS1UB,115

Name: Nexperia Uni-Directional ESD Protection Diode 2-Pin I-IGIA 180 W PESD12VS1UB,115
Brand: Nexperia
SKU: 164466
Price: 0.1 USD
Availability: InStock



Category ESD Protection Diode Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	0.65mm
Length	1.25mm
Model	PESD12VS1UB,115
Width	0.85mm
Mount Type	Surface
Series	PESD
Maximum Operating Temperature	150°C
Package Type	I-IGIA
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	35V
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	14.7V
Maximum Reverse Stand-off Voltage Vwm	12V
Peak Pulse Power Dissipation Pppm	180W
Test Current It	5mA
Maximum Peak Pulse Current Ippm	5A
Maximum Reverse Leakage Current	50nA
onsemi ESD5Z12T1G 1-Element Uni-Directional TVS Diode, 240 W, 2-Pin SOD-523Brand	onsemi

Key Features

Designed to protect signal lines from electrostatic discharges and transient voltage spikes.
Single diode element with uni-directional configuration for reliable protection.
Minimum breakdown voltage of 14.7 V ensuring stable operation under voltage stress.
Features a low clamping voltage of 35 V to guard sensitive components effectively.
Wide operating temperature range from -65°C to 150°C supports various industrial environments.
Maximum reverse stand-off voltage of 12 V supports normal circuit operation without conduction.
Complies with AEC-Q101 automotive standard, suitable for automotive and industrial applications.
Maximum peak pulse current capability of 5 A provides robust transient protection.

Product Description

Nexperia PESD12VS1UB,115 is a high-performance, uni-directional ESD Protection Diode designed for transient voltage suppression. With a peak pulse power dissipation of 180 W in a 2-pin I-IGIA surface-mount package, this diode reliably protects delicate electronic components from damage caused by electrostatic discharge (ESD) and voltage transients.

This single-element diode offers a minimum breakdown voltage of 14.7 V and a maximum reverse stand-off voltage of 12 V, allowing normal circuit function while providing a fast response to voltage spikes. The low clamping voltage of 35 V ensures that connected devices are shielded effectively during transient events.

The diode operates efficiently across a broad temperature range from -65°C to 150°C, making it suitable for demanding industrial, automotive, and consumer electronics environments. It meets the automotive standard AEC-Q101, endorsing its quality and reliability for vehicle electronics applications.

Its compact form factor (1.25 mm x 0.85 mm x 0.65 mm) ensures minimal PCB area usage, promoting modern design densities without compromising protection. With a peak pulse current capacity of 5 A and low maximum reverse leakage current of 50 nA, this diode is both powerful and energy efficient.

Designed for effective ESD protection on single signal lines. Uni-directional diode configuration for precise transient suppression. Meets stringent automotive quality standards (AEC-Q101). Small surface mount package suitable for high-density circuits.

Wide operating temperature range for versatile use cases. Low reverse leakage current to conserve power in sensitive electronics. Robust peak power and current ratings for transient handling capacity. Reduces component damage risks and improves system reliability.

Ideal for automotive, communications, industrial, and consumer applications.

This diode is an essential component for engineers designing protection circuits in environments exposed to ESD events and transient surges. Its proven reliability and compact design make it a preferred choice in semiconductor protection solutions.
