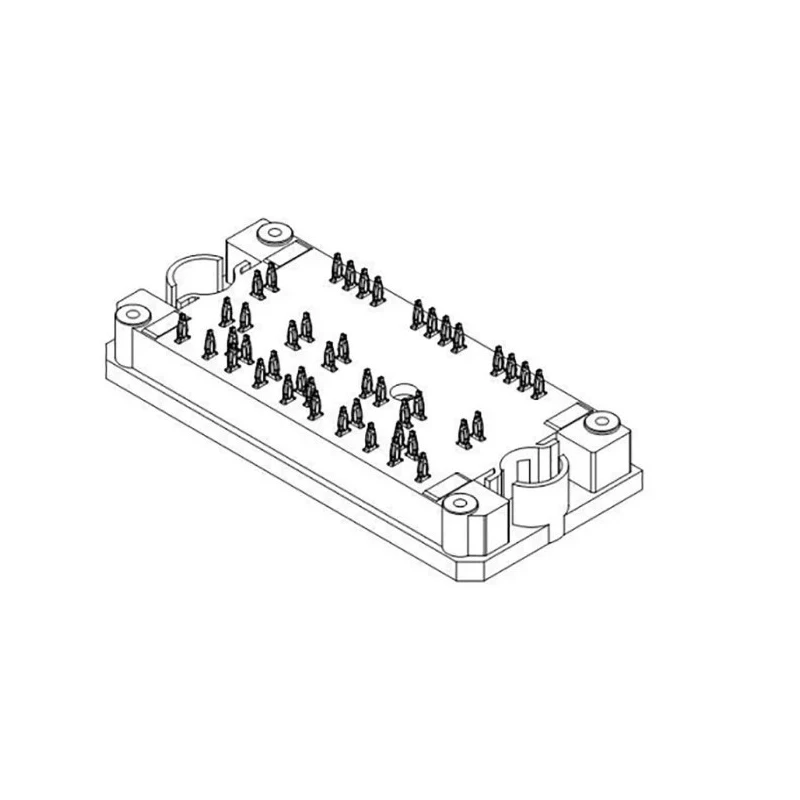

onsemi N-Channel Q1 3-Phase TNPC Power Module 42 A 1200 V, 44-Pin Q13-TNPC Clamp NXH40T120L3Q1SG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 12.5mm |
| Length | 83mm |
| Model | NXH40T120L3Q1SG |
| Width | 37.9mm |
| Mount Type | Clamp |
| Series | TNPC |
| Maximum Operating Temperature | 175°C |
| Package Type | Q13-TNPC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | Pb-Free and is RoHS |
| Pin Count | 44 |
| Maximum Continuous Collector Current Ic | 42A |
| Maximum Collector Emitter Voltage Vceo | 1200V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.65V |
| Channel Type | N |
| Maximum Power Dissipation Pd | 146W |
| Maximum Gate Emitter Voltage VGEO | ±20 V |
Key Features
- Includes a 44-pin Q13-TNPC package with clamp mount.
- Designed with high power dissipation capability of 146 W for efficient thermal management.
- Supports fast switching with low collector emitter saturation voltage of 1.65 V.
- Operational temperature range from -40°C to 175°C for robust performance.
- Contains an NTC thermistor for temperature sensing and protection.
- Suitable for DC-AC conversion and power electronic applications.
- Complies with Pb-Free and RoHS standards for environmental safety.
Product Description
onsemi NXH40T120L3Q1SG is a high-performance N-Channel Q1 three-phase T-type neutral-point clamped (TNPC) power module. It is built to deliver a maximum continuous collector current of 42 A and withstand a maximum collector emitter voltage of 1200 V, making it suitable for demanding power semiconductor applications.
The module features a 44-pin Q13-TNPC package with clamp mounting, incorporating fast switching IGBTs with low collector-emitter saturation voltage of 1.65 V, facilitating improved efficiency in power conversion systems.
Designed to operate reliably across a wide temperature range from -40°C to 175°C, it includes two 1200 V, 40 A IGBTs with inverse diodes and two 650 V, 25 A IGBTs with inverse diodes per channel, along with an integrated NTC thermistor for precise temperature monitoring and protection.
This power module is Pb-Free and RoHS compliant, supporting environmentally responsible manufacturing practices. Its compact dimensions (83 mm length, 37.9 mm width, 12.5 mm height) allow for efficient space utilization in industrial, automotive, and electronic power converter applications.
Typical applications include DC-AC conversion and other power electronic circuits requiring robust, reliable semiconductor switching solutions. Includes a 44-pin Q13-TNPC package with clamp mount. Fast switching 1200 V and 650 V IGBTs with low collector emitter saturation voltage.
High maximum continuous collector current of 42 A. Wide operating temperature range from -40°C to 175°C. Integrated NTC thermistor for temperature monitoring. Pb-Free and RoHS compliant for environmental safety. Compact form factor with efficient thermal dissipation.
Suitable for DC-AC power conversion applications. Explore more power modules and semiconductor solutions at EnvMart to enhance your industrial and electronic projects.
Explore more products in our IGBT Module category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this model is 42 A.
It can withstand a maximum collector emitter voltage of 1200 V.
This power module operates reliably within a temperature range of -40°C to 175°C.
The collector emitter saturation voltage is 1.65 V.
It features a clamp mounting type.
The dimensions are 83 mm in length, 37.9 mm in width, and 12.5 mm in height.
Yes, it contains an integrated NTC thermistor for temperature monitoring and protection.
It is Pb-Free and RoHS compliant, ensuring environmental safety.
The maximum power dissipation capability is 146 W.
The package type is Q13-TNPC with 44 pins.
It is suitable for DC-AC conversion and other power electronic applications.
The maximum gate emitter voltage is ±20 V.
