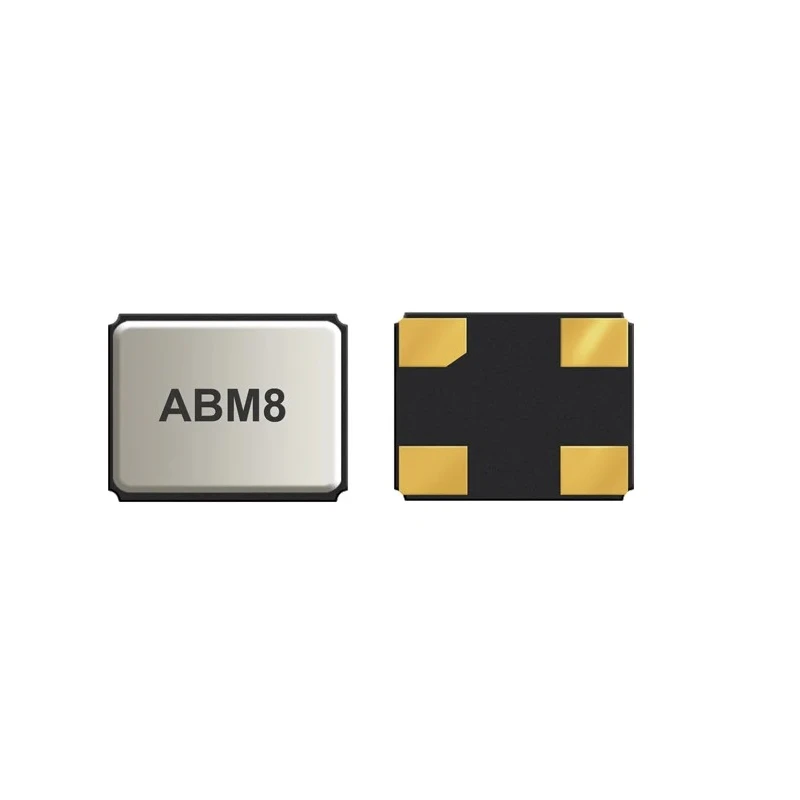

Abracon 16 MHz Crystal Unit Surface Mount 4-Pin 0.8 mm Height 3.2 mm Length 2.5 mm Width 12 pF Load ABM8-16.000MHZ-12-K1-T

The Abracon ABM8-16.000MHZ-12-K1-T is a high-precision 16 MHz crystal unit designed for surface mount applications. It features a 4-pin configuration with a low profile height of 0.8 mm, making it suitable for thin equipment and high-density circuit board designs.

This crystal unit offers excellent frequency stability with a tolerance of ±10 ppm and frequency stability of ±50 ppm, providing accurate oscillation required in communication and test equipment, modems, and wireless applications. The 12 pF load capacitance and seam-sealed package assure high reliability and consistent performance.

Engineered to operate across a wide temperature range from -40°C to 125°C, it is ideal for demanding environments. The product conforms to RoHS standards ensuring it meets environmental safety requirements.

Package dimensions are compact at 3.2 mm length and 2.5 mm width, supporting dense PCB layouts. This crystal unit is typically supplied on tape and reel packaging facilitating automated manufacturing processes.

Standard frequency of 16 MHz ensuring precise oscillation. Surface mount package with compact dimensions of 3.2 mm length, 2.5 mm width, and 0.8 mm height. Load capacitance of 12 pF for optimal circuit matching. Frequency tolerance of ±10 ppm for high accuracy.

Frequency stability rated at ±50 ppm for reliable performance. Seam sealed package ensures high reliability in harsh environments. Wide operating temperature range from -40°C to 125°C. Pin count of 4 suitable for standard circuit configurations.

RoHS compliant ensuring environmental safety. Available in tape and reel packaging for automated assembly.

This crystal unit is widely used in industrial electronics, communication devices, modems, and wireless applications. It caters well to manufacturing environments requiring precise oscillator components for reliable and stable operation. The low profile design also supports applications in compact portable devices and test equipment.
