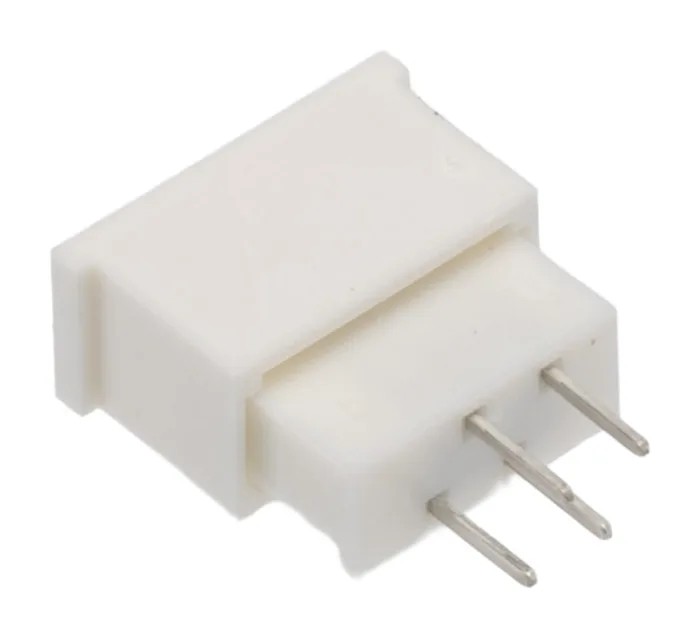

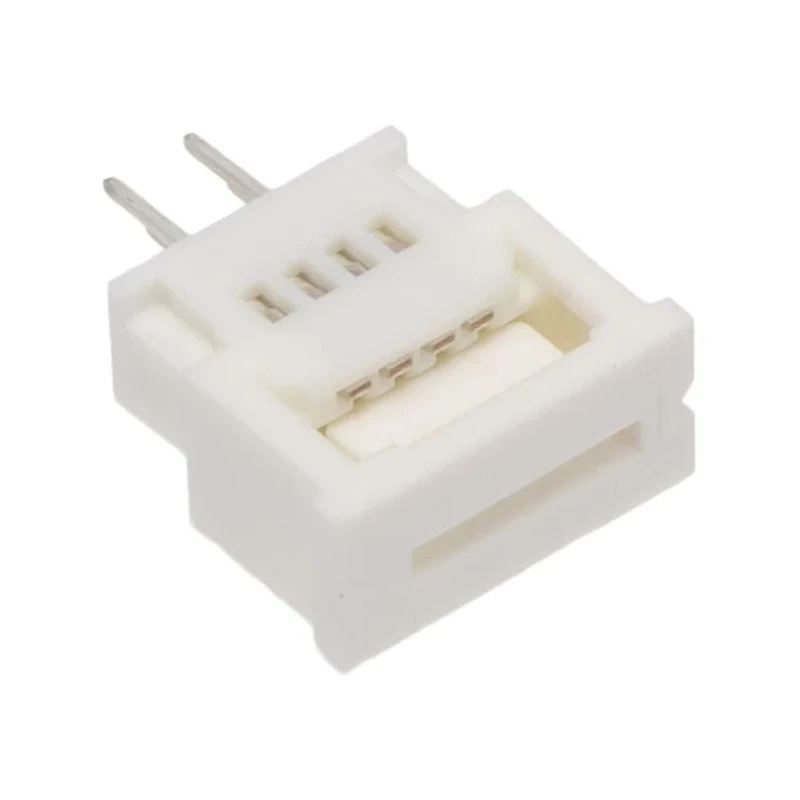

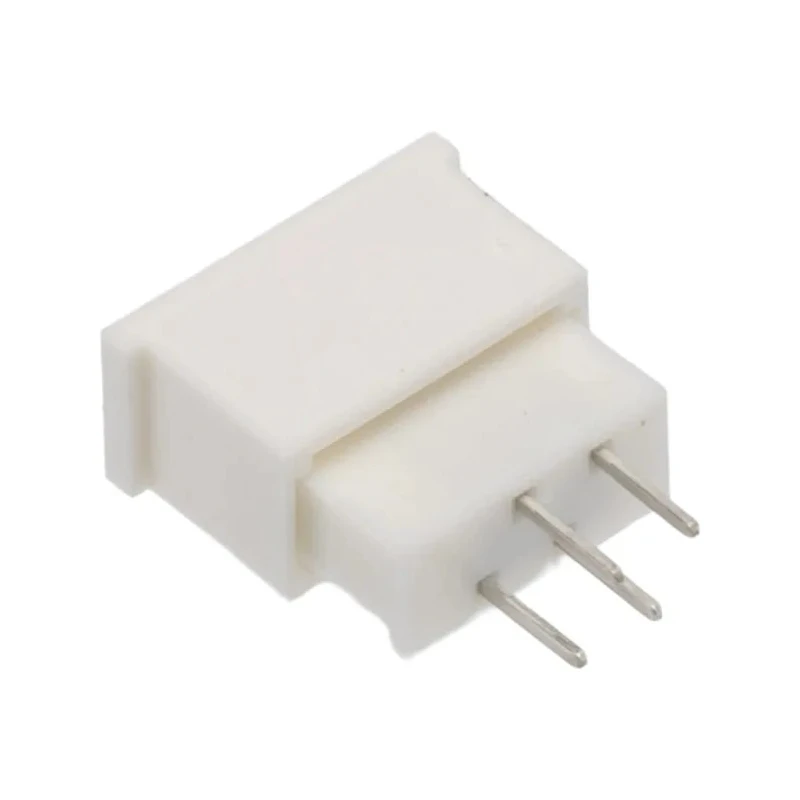

Molex 1.25 mm Pitch 4 Way Straight Female FPC Connector Through Hole Solder Termination 39-53-2045
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- Features a phosphor bronze contact material for durable conductivity.
- The connector uses Easy-On FFC/FPC technology with a slide type actuator for easy insertion.
- Supports a current rating of 1 A and voltage rating of 200 V.
- Design includes staggered solder tails to enhance solder joint strength.
- Operating temperature range spans from -20°C to 80°C, suitable for various industrial environments.
- Housing is made of polyethylene terephthalate ensuring robust mechanical strength.
- Contact plating consists of tin over nickel for corrosion resistance.
- Connector incorporates a locking mechanism for secure FPC engagement.
Product Description
Molex 39-53-2045 is a 4 Way Straight Female FPC Connector from the 5597 series featuring a 1.25 mm pitch and Zero Insertion Force (ZIF) through-hole mount technology. It provides a reliable, space-saving solution for connecting flexible printed circuits in electronic automotive and similar industrial applications.
The connector's phosphor bronze contacts are plated with tin over nickel to ensure excellent conductivity and corrosion resistance. The polyethylene terephthalate housing provides mechanical robustness and durability under demanding operating temperatures ranging from -20°C to 80°C.
This FPC Connector employs a slide type actuator which simplifies the insertion process while maintaining a secure connection due to its locking mechanism. The staggered solder tails improve mechanical solder bond reliability on PCBs, enhancing long-term performance.
Rated for 1 ampere current and 200 volts, it is well-suited for power and control signal connections in constrained spaces where reliable electrical and mechanical connections are critical.
Phosphor bronze contact material ensures high conductivity and durability. Zero insertion force design minimizes FPC wear from repeated insertions. Slide type actuator provides easy and secure FPC locking. Staggered solder tail layout strengthens PCB solder joints.
Operating temperature from -20°C to 80°C for reliable industrial use. Polyethylene terephthalate housing offers mechanical strength. Tin over nickel plating protects contacts from corrosion. Locking mechanism secures the connector in place.
Designed for automotive and other electronic equipment requiring compact connectors.
This connector is part of Molex's trusted 5597 series, known for its space-saving and reliable FPC connection solutions. It is essential for professionals working in electronics manufacturing, automotive electronics, and other industrial sectors.
Explore the extensive range of Molex electronic connectors in the Electronics & Electricals category for solutions tailored to your project needs. Choose quality and reliability with Molex connectors available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current rating of 1 A and a voltage rating of 200 V.
The operating temperature range spans from -20°C to 80°C, making it suitable for various industrial environments.
The housing is made of polyethylene terephthalate, and the contact material is phosphor bronze, which is plated with tin over nickel for corrosion resistance.
The ZIF design minimizes FPC wear from repeated insertions, allowing for easier and more reliable connections.
It utilizes a through-hole mounting type, which is common for PCB applications.
The pitch of this connector is 1.25 mm, which is suitable for compact applications.
This model features 4 contacts, all of which are female.
The staggered solder tails enhance solder joint strength, improving the reliability of the connection on PCBs.
Yes, it incorporates a locking mechanism to secure the FPC engagement, ensuring a stable connection.
This connector is part of the Molex 5597 series, known for its reliable FPC connection solutions.
The country of origin for this connector is Japan.
